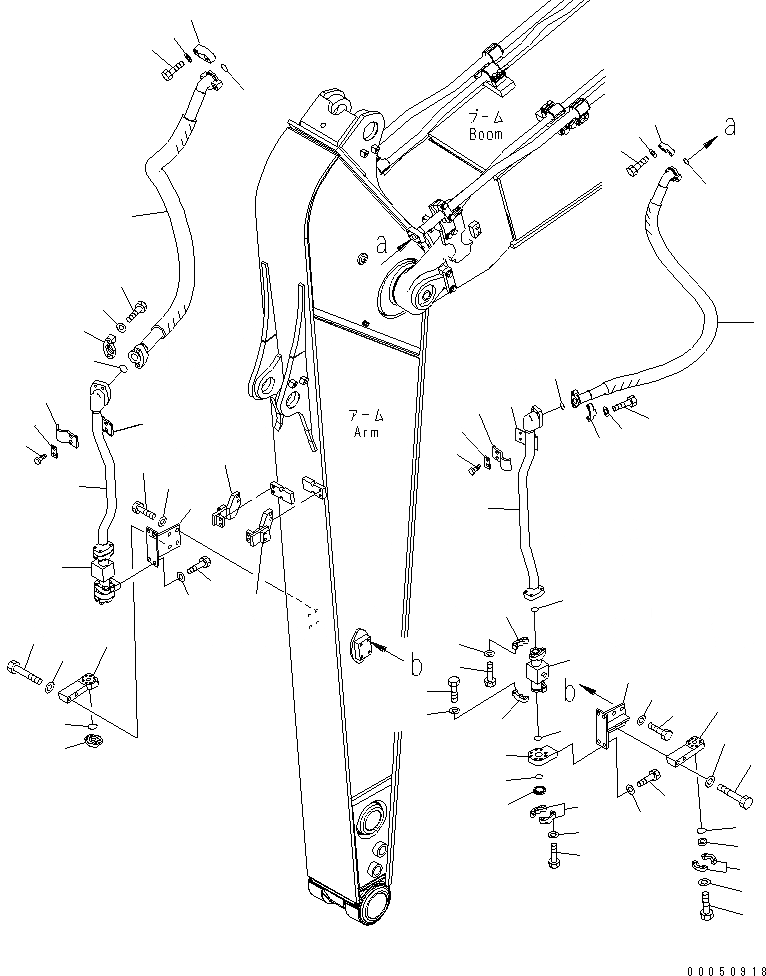

Запчасти Komatsu PC240NLC-8K ГРЕЙФЕРН. ТРУБЫ (.M РУКОЯТЬ) (/) T РАБОЧЕЕ ОБОРУДОВАНИЕ

1

07097-21016

HOSE

2

21T-09-11460

O-RING

3

07371-31049

FLANGE, SPLIT

4

07372-21035

BOLT

5

01643-51032

WASHER

6

07097-21217

HOSE

7

07000-13038

O-RING

8

07371-51260

FLANGE, SPLIT

9

01010-81245

BOLT

10

01643-31232

WASHER

11

07371-31049

FLANGE, SPLIT

12

07372-21035

BOLT

13

01643-51032

WASHER

14

07371-51260

FLANGE, SPLIT

15

01010-81245

BOLT

16

01643-31232

WASHER

17

20Y-970-7321

BRACKET

|17

20Y-970-7331

BRACKET

18

20Y-970-7311

PLATE

19

01010-81230

BOLT

20

01643-31232

WASHER

21

20Y-970-K543

VALVE

|21

20Y-970-K542

VALVE

22

07000-13032

O-RING

23

07371-31049

FLANGE, SPLIT

24

07372-21035

BOLT

25

01643-51032

WASHER

26

07378-11000

HEAD

27

07000-13032

O-RING

28

07371-31049

FLANGE, SPLIT

29

07372-21035

BOLT

30

01643-51032

WASHER

31

206-970-7230

PLATE

32

07378-10600

HEAD

33

07000-13025

O-RING

34

07371-30640

FLANGE

35

07372-21035

BOLT

36

01643-51032

WASHER

37

01010-81280

BOLT

38

01643-31232

WASHER

39

01010-81230

BOLT

40

01643-31232

WASHER

41

20Y-62-45861

TUBE

42

206-62-73860

TUBE

43

206-970-7240

BRACKET

44

206-970-7250

BRACKET

45

20Y-62-K5790

CLAMP

|45

207-62-31330

CLAMP

46

01010-81230

BOLT

47

20Y-62-13450

PLATE

48

07371-31049

FLANGE, SPLIT

49

07372-21035

BOLT

50

01643-51032

WASHER
