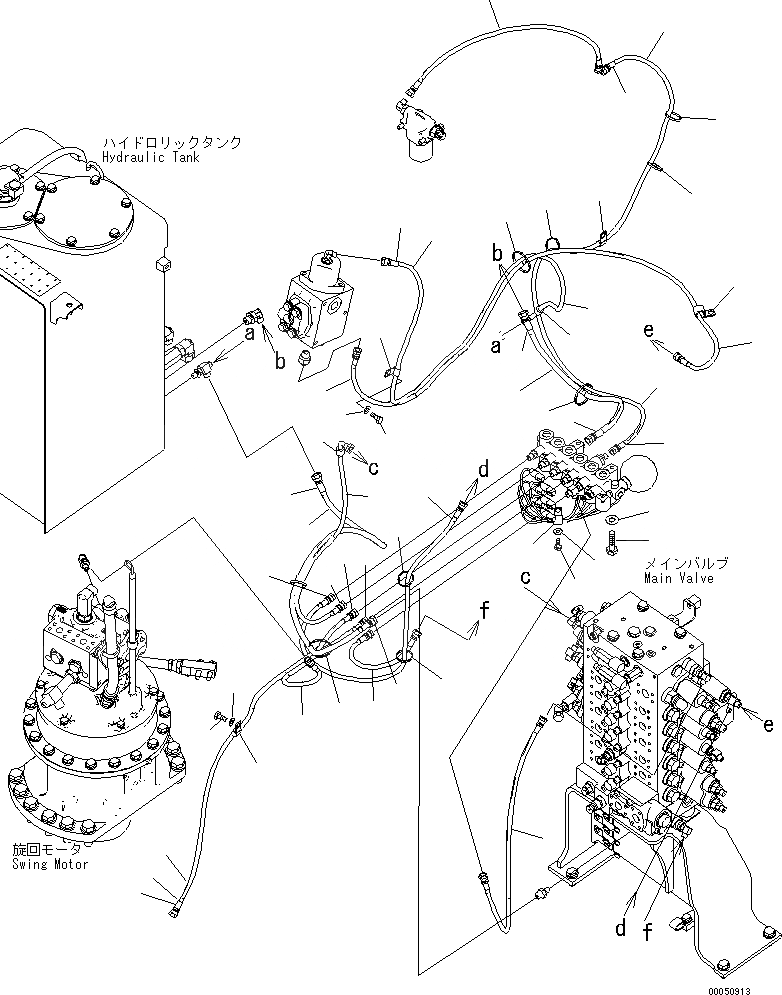

Запчасти Komatsu PC240NLC-8K СОЛЕНОИДНЫЙ КЛАПАН (ПАТРУБКИ И КОРПУС) ( НАВЕСН. ОБОРУД) (2-СЕКЦИОНН. СТРЕЛА) H ГИДРАВЛИКА

1

02760-00211

HOSE

|1

22U-62-26850

HOSE, 1050MM

2

20Y-62-22790

BAND, RED

3

20Y-62-22810

BAND, YELLOW

4

20Y-62-51930

HOSE

5

20Y-62-51940

HOSE

6

02760-003A5

HOSE

|6

20Y-62-51980

HOSE

|6

20Y-62-51872

HOSE

7

08034-20823

BAND

8

20Y-62-51910

HOSE

9

20Y-62-51260

HOSE

10

20Y-62-22860

BAND, BROWN

11

20Y-62-51960

HOSE

12

20Y-62-22810

BAND, YELLOW

13

20Y-62-52110

HOSE

14

08034-20823

BAND

15

208-62-72480

HOSE, 1080MM

16

01010-81085

BOLT

17

01643-31032

WASHER

18

08034-20536

BAND

19

04434-51010

CLIP

20

01010-81020

BOLT

21

01643-31032

WASHER

22

04434-51512

CLIP

23

01010-81225

BOLT

24

01643-31232

WASHER

25

20Y-62-22820

BAND, BLUE

26

02761-00218

HOSE

27

02760-00219

HOSE, 1900MM

28

20Y-62-51930

HOSE

29

04434-51212

CLIP

30

01010-81225

BOLT

31

01643-31232

WASHER

32

04434-52512

CLIP

|32

04434-52212

CLIP

33

04434-51012

CLIP
