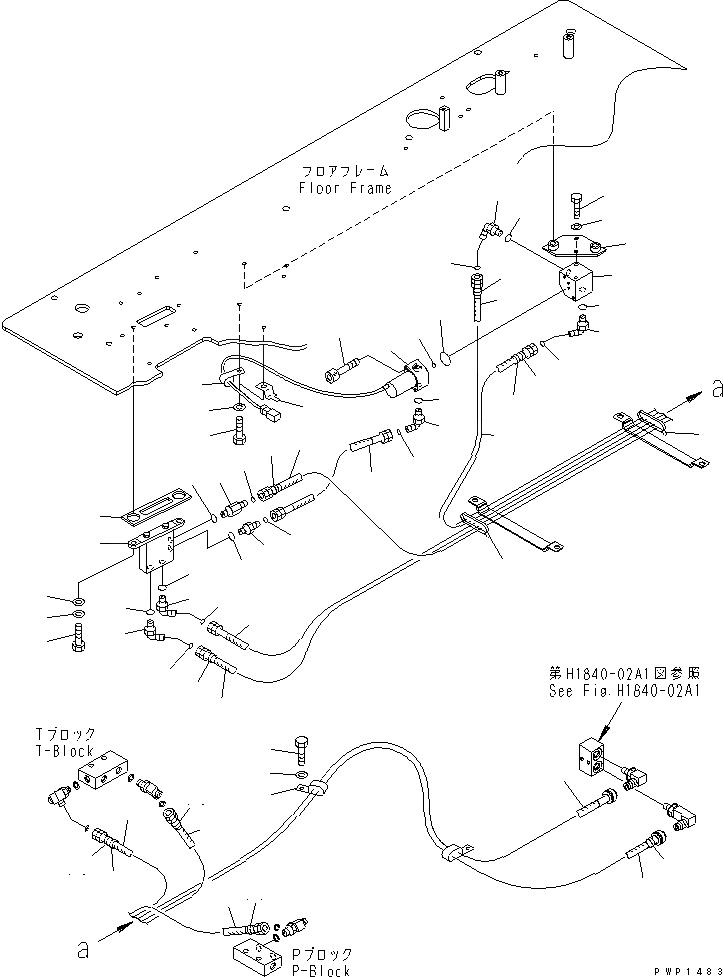

Запчасти Komatsu PC240NLC-7K ОСНОВН. КОНСТРУКЦИЯ (HCU ТРУБЫ)(№K-K) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

206-62-K2010

BLOCK,DUMMY

2

22U-54-25660

SEAL

3

01010-81025

BOLT

4

01643-31032

WASHER

5

01643-31032

WASHER

6

21W-62-43980

ELBOW

7

02896-11008

O-RING

8

07000-12011

O-RING

9

20Y-62-43470

NIPPLE

10

02896-11008

O-RING

11

11Y-62-12140

NIPPLE

12

02896-11008

O-RING

13

07000-12011

O-RING

14

02760-00212

HOSE

15

20Y-62-43490

HOSE¤ 2400MM

16

20Y-62-43510

HOSE¤ 2350MM

17

20Y-62-22790

BAND¤ RED

18

20Y-62-22810

BAND¤ YELLOW

19

20Y-62-22820

BAND¤ BLUE

20

20Y-62-22830

BAND¤ WHITE

21

08034-00519

BAND

22

21W-62-42240

HOSE

23

04435-51210

CLIP

24

01010-81016

BOLT

25

01643-31032

WASHER

26

702-21-07010

VALVE ASS'Y,EPC (SEE FIG.Y1671-01A0)

27

203-60-62220

BOLT

28

700-93-11320

O-RING

29

07000-02011

O-RING

30

20Y-62-43410

BLOCK

31

01010-80820

BOLT

32

01643-30823

WASHER

33

20Y-62-43420

BRACKET

34

11Y-62-12160

ELBOW

35

02896-11008

O-RING

36

07002-11423

O-RING

37

21W-62-43960

ELBOW

38

02896-11008

O-RING

39

07002-11423

O-RING

40

08053-01510

CLIP

41

04434-51010

CLIP

42

01010-81016

BOLT

43

01643-31032

WASHER
