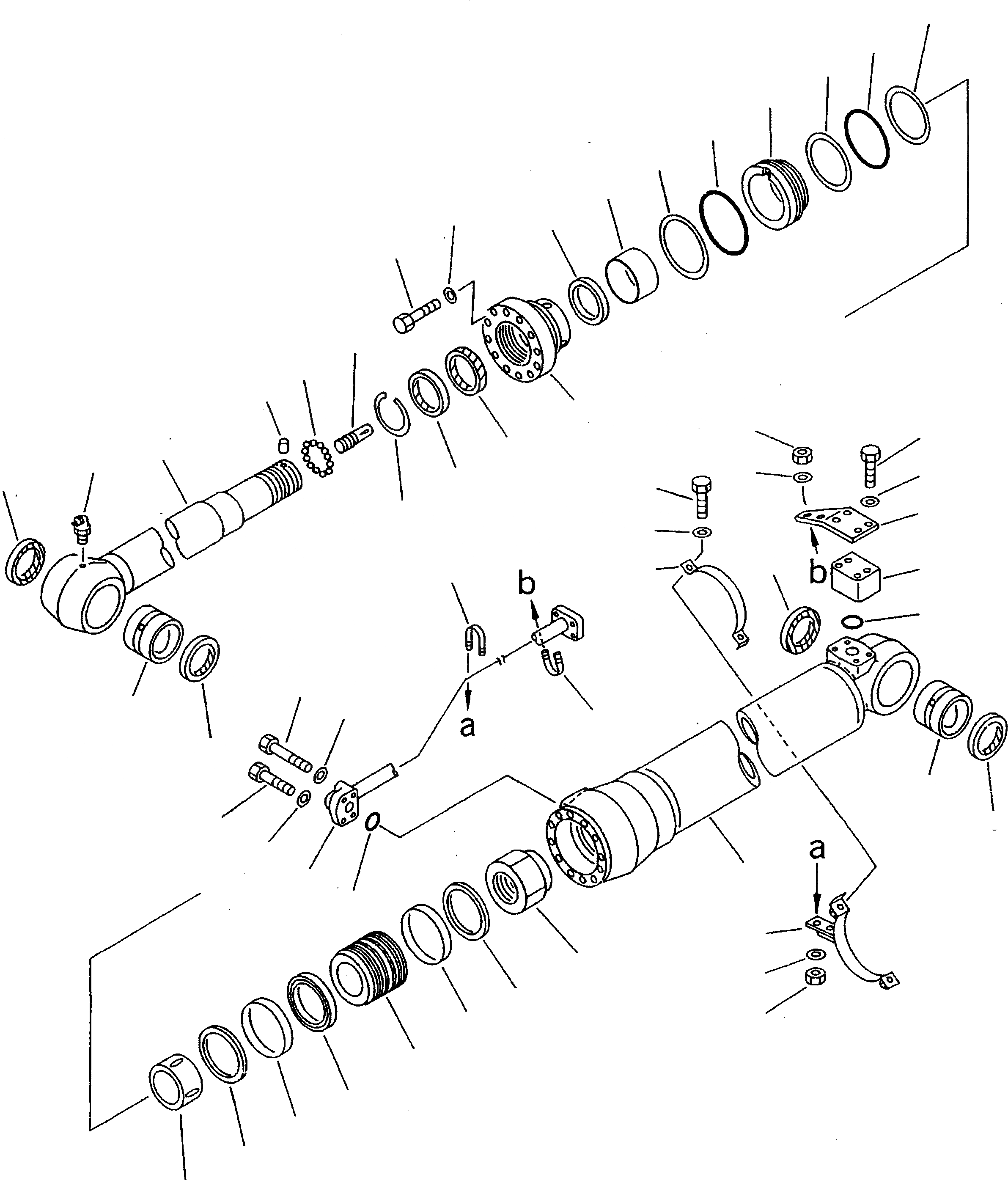

Запчасти Komatsu PC240NLC-6K ЦИЛИНДР РУКОЯТИ РАБОЧЕЕ ОБОРУДОВАНИЕ

G-1

206-63-X2521

ARM CYLINDER GROUP

|1

206-63-K1140

CYLINDER ASS'Y

1

206-63-63340

CYLINDER

2

707-76-80010

BUSHING

3

07145-00080

SEAL,DUST (KIT)

4

206-63-63320

ROD,PISTON

5

707-27-14620

HEAD,CYLINDER

6

07179-13114

RING,SNAP

7

176-63-56170

SEAL,DUST (KIT)

8

707-52-90750

BUSHING

9

707-51-10030

PACKING,ROD (KIT)

10

07000-15135

O-RING (KIT)

11

07001-05135

RING,BACK-UP (KIT)

12

707-51-10630

RING,BUFFER (KIT)

13

01010-61875

BOLT

14

707-41-11840

WASHER

15

707-36-14360

PISTON

16

707-44-14180

RING,PISTON (KIT)

17

707-39-14820

RING,WEAR (KIT)

18

707-44-14910

RING

19

07165-16870

NUT

20

707-71-61011

PLUNGER

21

707-71-60230

PLUNGER

22

07020-00900

FITTING,GREASE

23

707-71-32740

COLLAR

24

07001-05135

RING,BACK-UP (KIT)

25

07000-15135

O-RING (KIT)

26

04260-00635

BALL

27

707-71-91270

CAP

28

20Y-62-K2340

TUBE

29

20D-62-17860

ELBOW

30

07372-21060

BOLT

31

07372-21045

BOLT

32

01643-51032

WASHER

33

07000-13030

O-RING (KIT)

34

01010-81080

BOLT

35

01643-31032

WASHER

36

07000-13035

O-RING (KIT)

37

707-88-95401

BRACKET

38

707-88-95380

BAND

39

01010-81035

BOLT

40

01643-51032

WASHER

41

707-88-11560

PLATE

42

07283-22738

CLIP

43

01599-01011

NUT

44

01643-31032

WASHER

|45

707-99-58200

SERVICE KIT
