Запчасти Komatsu PC240NLC-5K МАРКИРОВКА (АНГЛ.)(№K-K7) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

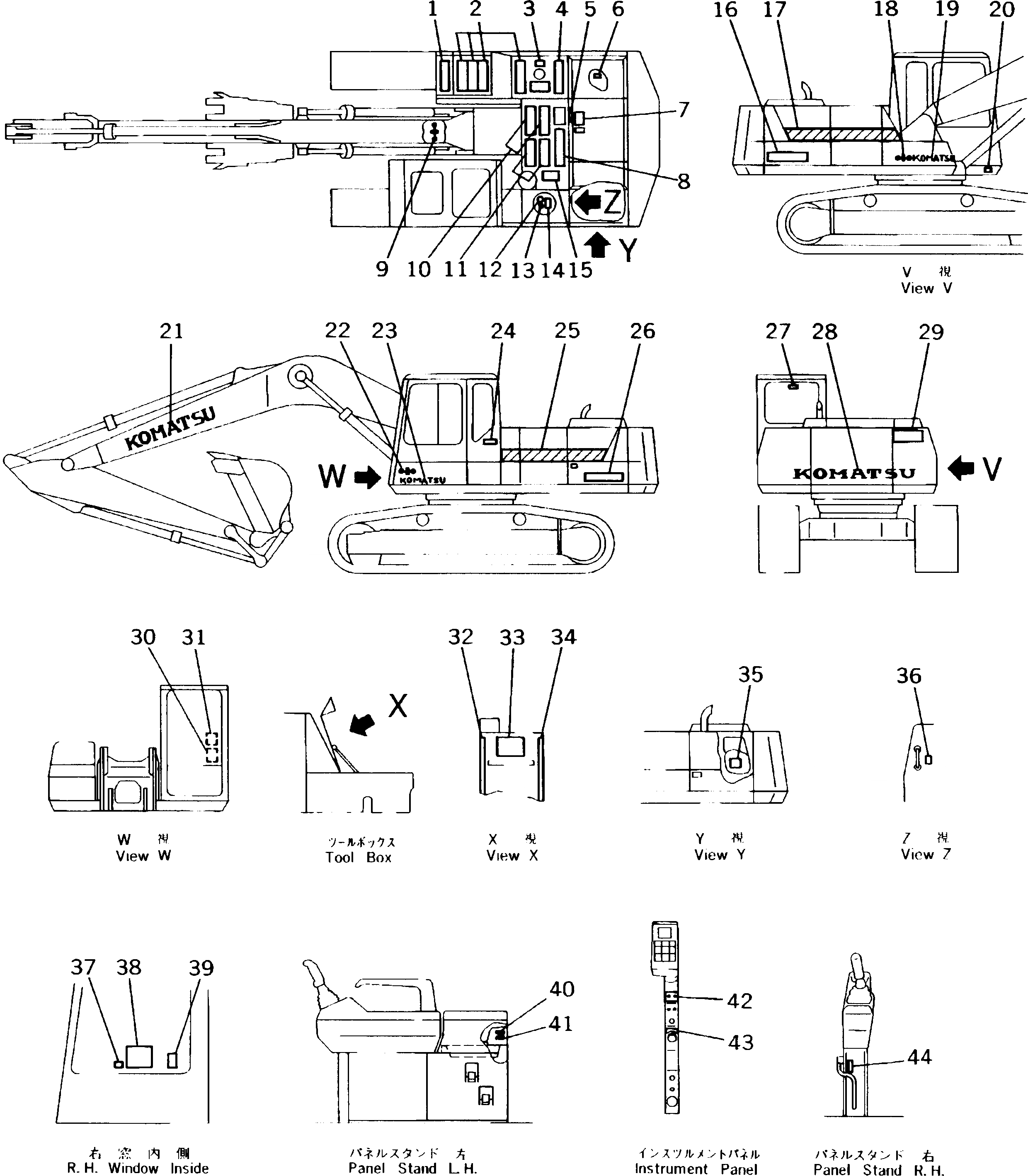

Схема запчастей Komatsu PC240NLC-5K - МАРКИРОВКА (АНГЛ.)(№K-K7) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

Артикул

Название

Примечание

Количество

1

154-54-23260

SEAT,NONSKID

2

205-54-76511

SEAT,NONSKID

3

09652-30121

PLATE¤ CAUTION,FUEL

4

205-54-76511

SEAT,NONSKID

5

09650-30104

PLATE¤ INSTRUCTION,RADIATOR

6

09668-03000

PLATE¤ SAFETY,RADIATOR CAP

7

09667-03000

PLATE¤ SAFETY,ENGINE COVER

8

21T-54-11620

SEAT,NONSKID

9

207-00-31630

PLATE¤ MARK,SYMBOL

10

154-54-23260

SEAT,NONSKID

11

205-54-76511

SEAT,NONSKID

12

09669-00003

PLATE¤ CAUTION,HYDRAULIC TANK

13

20X-98-19130

PLATE¤ CAUTION,HYDRAULIC TANK CAP

14

09653-03000

PLATE¤ SAFETY,HYDRAULIC TANK

15

203-00-51170

SEAT,NONSKID

16

206-00-58121

PLATE¤ MARK,PC240

|16

206-00-58120

PLATE¤ MARK,PC240

|16

206-00-58131

PLATE¤ MARK,PC240LC

|16

206-00-58130

PLATE¤ MARK,PC240LC

|16

206-00-58141

PLATE¤ MARK,PC240NLC

|16

206-00-58140

PLATE¤ MARK,PC240NLC

17

20Y-00-K1660

PLATE¤ MARK,STRIPE

18

09694-50160

PLATE¤ MARK,SYMBOL

19

09690-C0315

PLATE¤ MARK,KOMATSU

|19

09690-50500

PLATE¤ MARK,KOMATSU

20

205-00-K1110

PLATE¤ NAME,(LIMITED SUPPLY)

|20

205-00-72430

RIVET

21

09690-B0630

PLATE¤ MARK,KOMATSU

|21

205-00-63171

PLATE¤ MARK,KOMATSU

22

09694-50160

PLATE¤ MARK,SYMBOL

23

09690-C0315

PLATE¤ MARK,KOMATSU

|23

09690-50500

PLATE¤ MARK,KOMATSU

24

20Y-00-K1750

PLATE¤ MARK

25

20Y-00-K1680

PLATE¤ MARK,STRIPE

26

206-00-58121

PLATE¤ MARK,PC240

|26

206-00-58120

PLATE¤ MARK,PC240

|26

206-00-58131

PLATE¤ MARK,PC240LC

|26

206-00-58130

PLATE¤ MARK,PC240LC

|26

206-00-58141

PLATE¤ MARK,PC240NLC

|26

206-00-58140

PLATE¤ MARK,PC240NLC

27

205-00-K1260

PLATE¤ CAUTION,AUTO LOCK

28

09690-C0710

PLATE¤ MARK,KOMATSU

|28

205-00-K1310

PLATE¤ MARK,KOMATSU

29

20Y-00-K1530

PLATE¤ CAUTION,KEEP OUT OF TURNING AREA

30

09696-00108

PLATE,SOUND POWER LEVEL

31

09696-10078

PLATE,SOUND PRESSURE LEVEL

32

20Y-00-11630

PLATE

33

20Y-00-K1691

PLATE,LUBRICATION CHART

34

20Y-00-11630

PLATE

35

09637-30661

PLATE¤ INSTRUCTION,AIR CLEANER

36

205-00-73360

PLATE¤ OPERATING,OIL LEVEL

37

20Y-00-K1110

PLATE¤ OPERATING,WORK EQUIPMENT

38

21P-00-K1131

PLATE¤ CAUTION

39

205-00-71570

PLATE¤ CAUTION,ACCUMULATOR

40

203-00-56280

PLATE¤ OPERATING,T.V.C. PROLIX

41

203-00-56290

PLATE¤ OPERATING,SWING PROLIX

42

20Y-00-K1132

PLATE¤ OPERATING,FUEL CONTROL

43

20Y-00-K1140

PLATE¤ OPERATING,FUEL CONTROL

44

09685-00002

PLATE¤ OPERATING,LOCK LEVER

Выбрано товаров: 59
