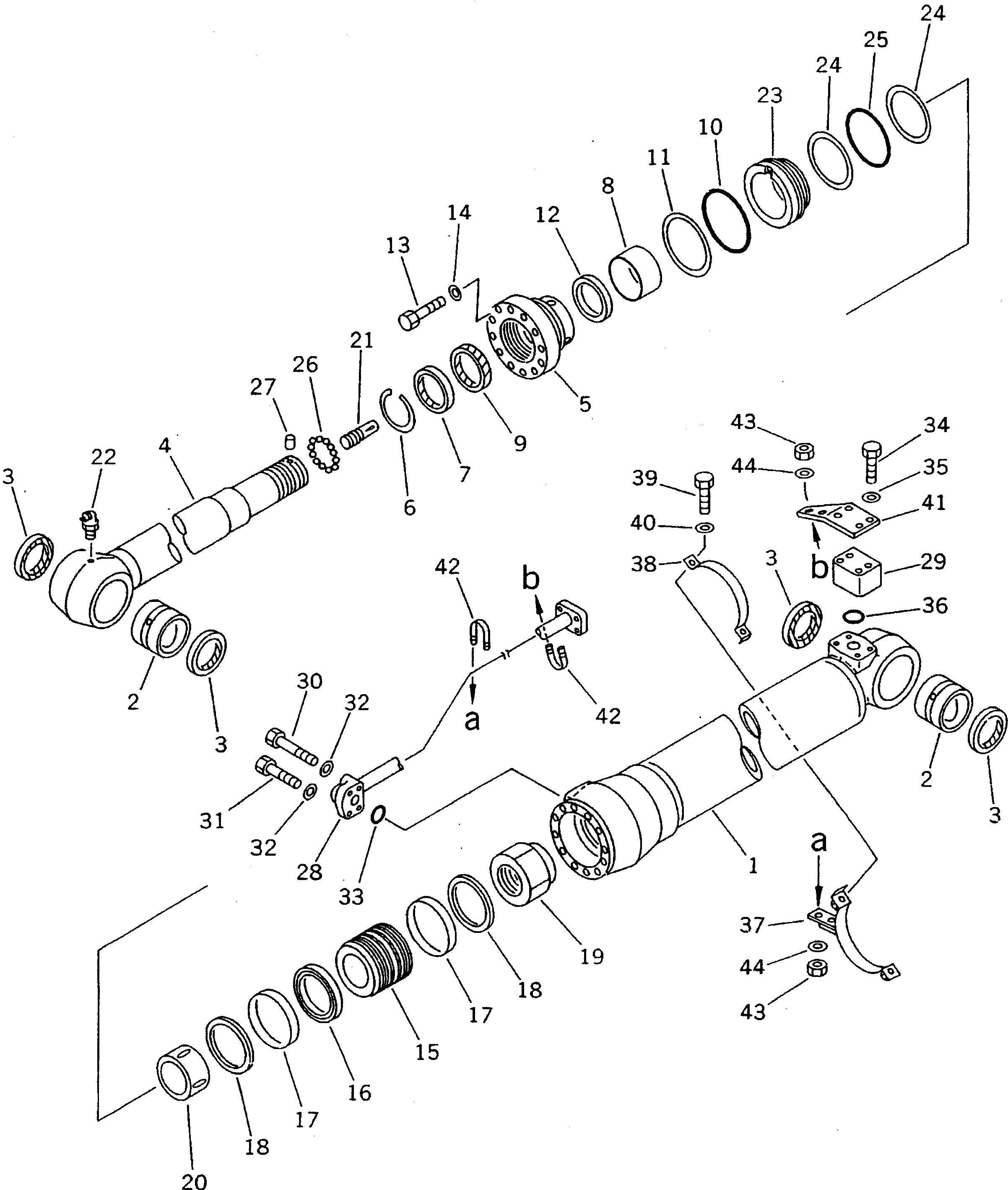

Запчасти Komatsu PC240NLC-5K ЦИЛИНДР РУКОЯТИ РАБОЧЕЕ ОБОРУДОВАНИЕ (ЭКСКАВАТ.)

|1

206-63-02521

CYLINDER ASS'Y

|1

206-63-02120

CYLINDER ASS'Y

1

206-63-63340

CYLINDER

2

707-76-80010

BUSHING

3

07145-00080

SEAL,DUST

4

206-63-63320

ROD,PISTON

5

707-27-14620

HEAD,CYLINDER

6

07179-13114

RING,SNAP

7

176-63-56170

SEAL,DUST

8

707-52-90750

BUSHING

9

707-51-10030

PACKING,ROD

10

07000-15135

O-RING

11

07001-05135

RING,BACK-UP

12

707-51-10630

RING,BUFFER

13

01010-81875

BOLT

14

707-41-11840

WASHER

15

707-36-14360

PISTON

16

707-44-14180

RING,PISTON

17

707-39-14820

RING,WEAR

18

707-44-14910

RING

19

07165-16870

NUT

20

707-71-61011

PLUNGER

21

707-71-60230

PLUNGER

22

07020-00900

FITTING

23

707-71-32710

COLLAR

24

07001-05135

RING,BACK-UP

25

07000-15135

O-RING

26

04260-00635

BALL

27

707-71-91270

CAP

28

206-63-63370

TUBE

29

20D-62-17860

ELBOW

30

07372-21060

BOLT

31

07372-21045

BOLT

32

01643-51032

WASHER

33

07000-13030

O-RING

34

01010-51080

BOLT

35

01643-31032

WASHER

36

07000-13035

O-RING

37

707-88-95401

BRACKET

38

707-88-95380

BAND

39

01010-51035

BOLT

40

01643-51032

WASHER

41

707-88-11560

PLATE

42

07283-22738

CLIP

43

01599-01011

NUT

44

01643-31032

WASHER
