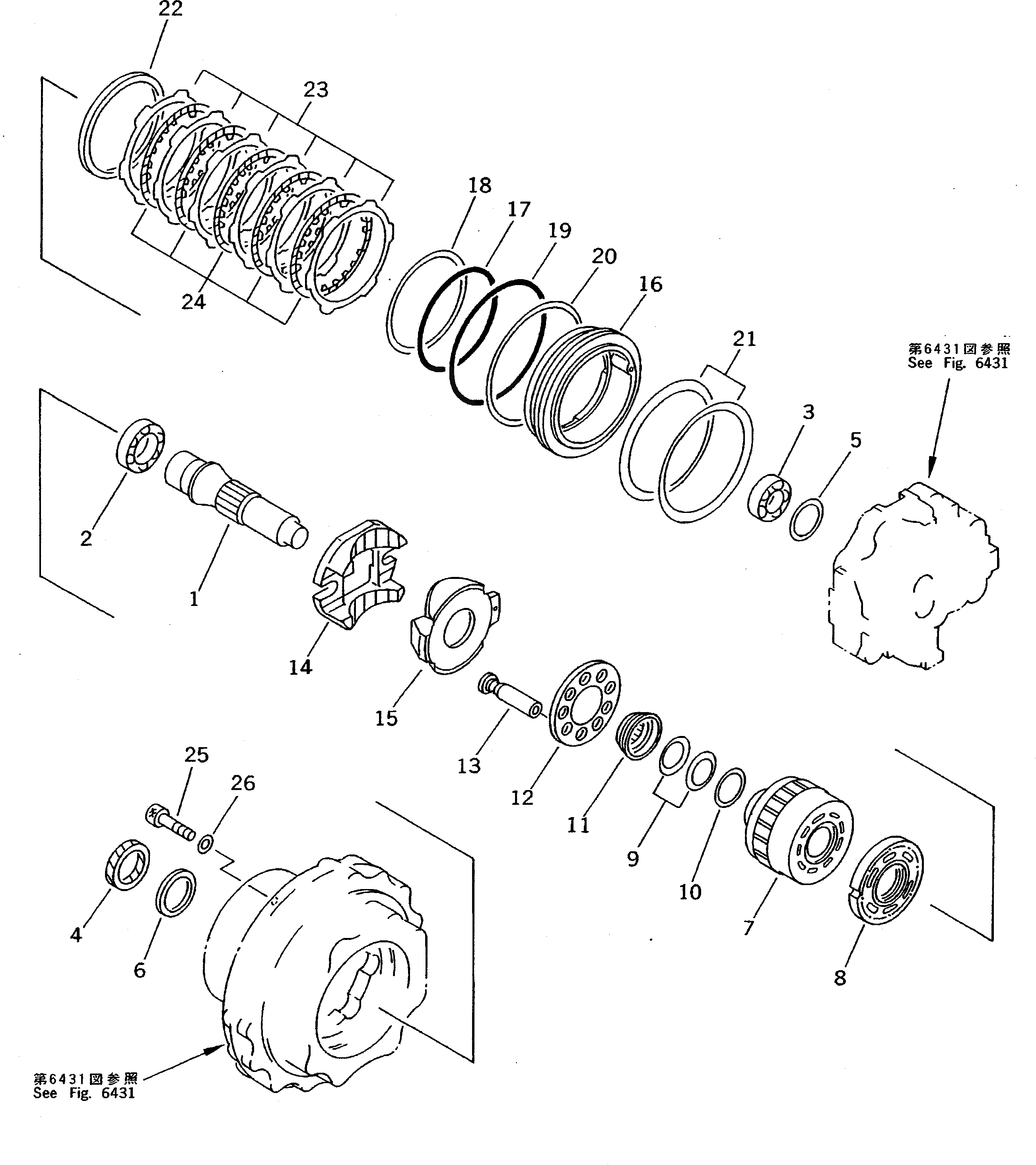

Запчасти Komatsu PC240NLC-5K МОТОР ХОДА (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

206-27-00033

FINAL DRIVE ASS'Y

|1

708-8H-00080

MOTOR ASS'Y

1

708-8H-12110

SHAFT

2

708-8H-12151

BEARING

3

708-8H-12141

BEARING

4

708-27-22810

SEAL

5

708-8H-05010

SPACER KIT

|5

SPACER¤ 2.0MM

|5

SPACER¤ 2.3MM

|5

SPACER¤ 1.5MM

|5

SPACER¤ 1.6MM

|5

SPACER¤ 1.7MM

|5

SPACER¤ 1.8MM

|5

SPACER¤ 1.9MM

|5

SPACER¤ 2.1MM

|5

SPACER¤ 2.2MM

6

708-8H-12260

PLATE

7

708-8H-13110

BLOCK,CYLINDER

8

708-8H-13211

VALVE,PLATE

9

708-8H-13520

SPRING

10

708-8H-05020

SHIM KIT

|10

SHIM¤ 0.5MM

|10

SHIM¤ 0.2MM

|10

SHIM¤ 0.1MM

11

708-8H-13510

RETAINER,GUIDE

12

708-8H-13340

SHOE,RETAINER

13

708-8H-13311

PISTON ASS'Y

|14

708-8H-04231

CRADLE ASS'Y

14

708-8H-13811

CRADLE

15

708-8H-13441

ROCKER,CAM

16

708-8H-15240

BRAKE,PISTON

17

07000-15190

O-RING

18

07001-05190

RING

19

708-8H-15220

O-RING

20

708-8H-15230

RING,BACK-UP

21

708-8H-15150

SPRING

22

708-8H-15160

SPACER

23

708-8H-15130

PLATE

24

708-8H-15121

DISK

25

708-8H-13910

BOLT

26

708-8H-13920

SEAL,WASHER
