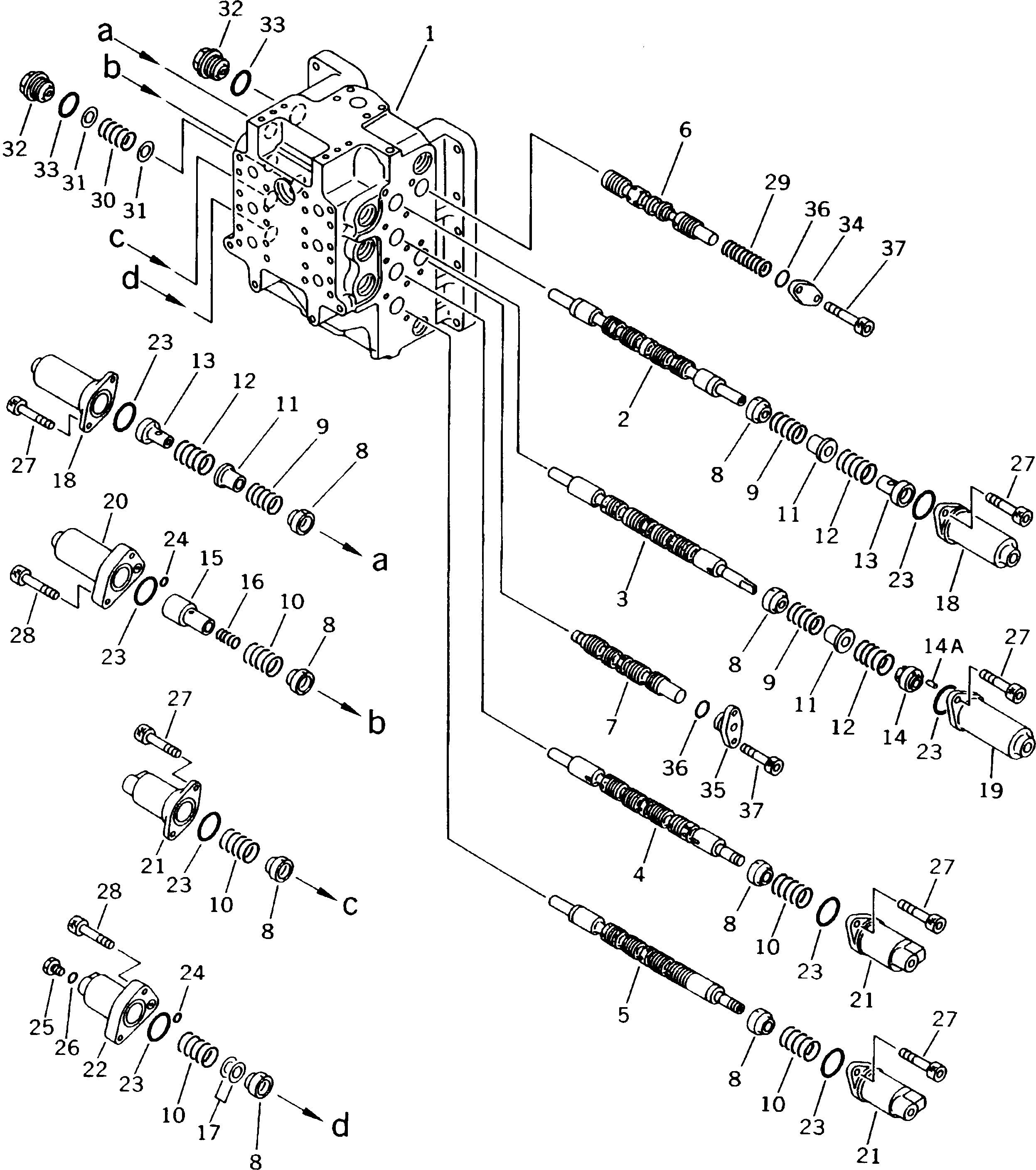

Запчасти Komatsu PC240NLC-5K ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН (/7) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

709-79-22303

CONTROL VALVE ASS'Y

|1

709-74-92602

VALVE ASS'Y

1

BODY,VALVE

2

SPOOL

3

SPOOL

4

SPOOL

5

SPOOL

6

SPOOL

7

SPOOL

8

709-74-92110

RETAINER

9

709-74-91910

SPRING

10

709-74-92180

SPRING

11

709-74-91930

RETAINER

12

709-74-91920

SPRING

13

709-74-91940

RETAINER

14

709-74-91970

SLEEVE

14A

04022-04008

PIN

15

709-74-92420

RETAINER

16

709-74-92430

SPRING

17

709-74-92360

SHIM¤ 0.5MM

18

709-74-91980

CASE

19

709-74-91980

CASE

20

709-74-92780

CASE

21

709-74-92120

CASE

22

709-74-92140

CASE

23

709-74-92170

O-RING

24

07000-02010

O-RING

25

07040-11409

PLUG

26

07002-01423

O-RING

27

01252-30820

BOLT

28

01252-30830

BOLT

29

709-74-92190

SPRING

30

709-74-92210

SPRING

31

709-74-92270

WASHER

32

709-74-92220

PLUG

33

07002-03034

O-RING

34

709-74-92250

PLATE

35

709-74-92240

PLATE

36

07000-02018

O-RING

37

01252-30820

BOLT
