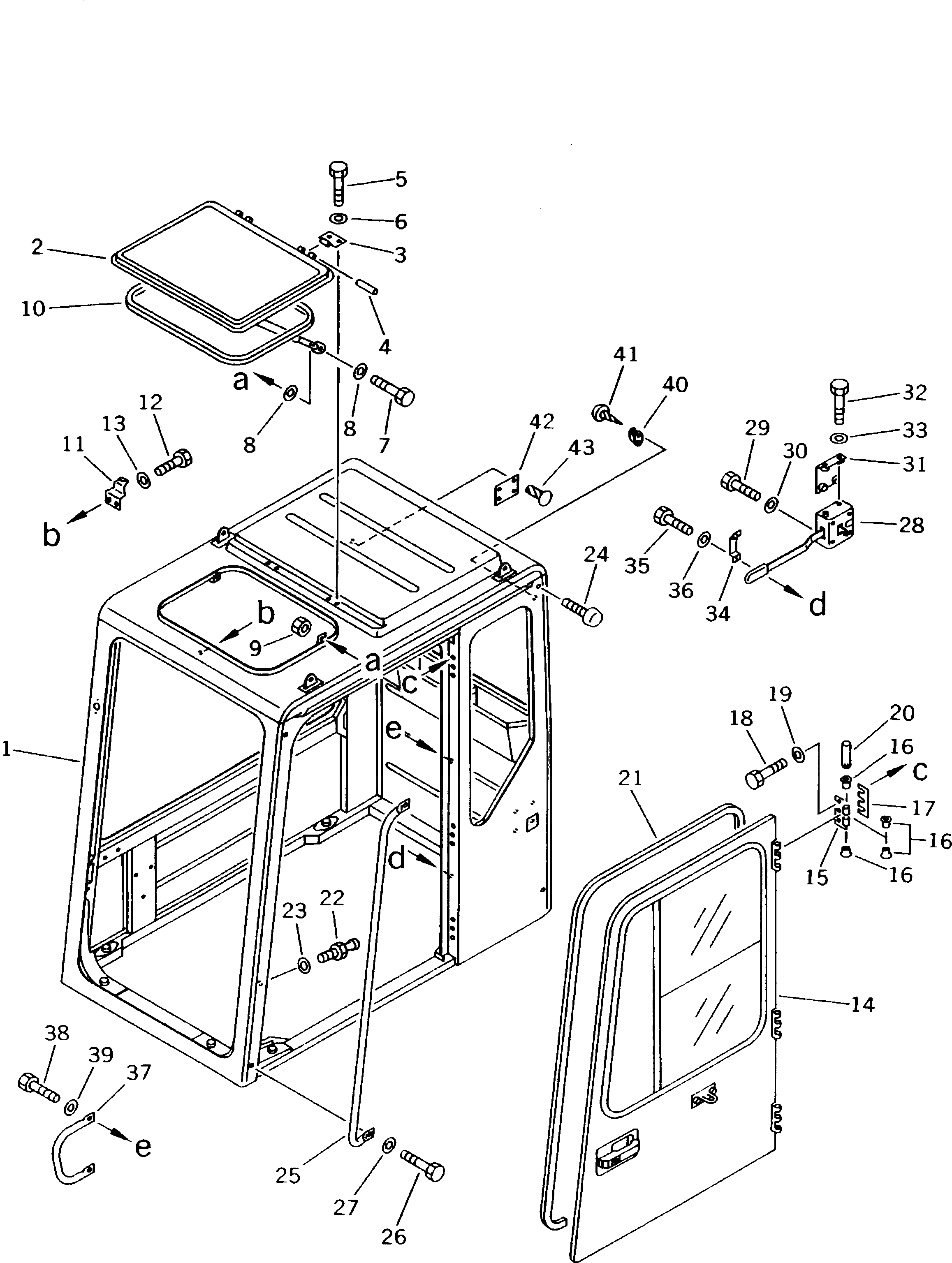

Запчасти Komatsu PC240NLC-5K КАБИНА (КАБИНА И ДВЕРЬ) (/)(№K-K) ЧАСТИ КОРПУСА

|1

20Y-54-K1100

OPERATOR'S CAB ASS'Y

1

20Y-54-K1340

CAB

2

20Y-54-K1440

ROOF HATCH ASS'Y

3

20Y-54-K2410

HINGE

4

20Y-54-K2390

PIN

5

01010-50616

BOLT

6

01641-20608

WASHER

7

01010-50616

BOLT

8

01641-20608

WASHER

9

01598-00608

NUT

10

20Y-54-K2570

SEAL

11

20Y-54-K2580

BRACKET

12

01010-50616

BOLT

13

01641-20608

WASHER

14

20Y-54-K1830

DOOR ASS'Y,(SEE FIG.5205)

15

20Y-54-K1430

HINGE

16

20Y-54-K1960

BUSHING

17

20Y-54-K1970

SHIM

18

01010-50825

BOLT

19

01641-20812

WASHER

20

20Y-54-K1950

PIN

21

20Y-54-K2620

SEAL

22

20Y-54-K2550

BOLT

23

20Y-54-K2560

WASHER

24

20Y-54-K2290

BUFFER

25

20Y-54-K2530

HANDLE

26

01010-51030

BOLT

27

01641-21016

WASHER

28

20Y-54-K1330

LOCK BACK ASS'Y,(SEE FIG.5206)

29

01010-50816

BOLT

30

01641-20812

WASHER

31

20Y-54-K2190

COVER

32

20Y-54-K2750

SCREW

33

01641-20508

WASHER

34

20Y-54-K2210

BRACKET

35

20Y-54-K2740

SCREW

36

01641-20608

WASHER

37

20Y-54-K2540

HANDLE

38

01010-51030

BOLT

39

01641-21016

WASHER

40

20Y-54-K2510

HOOK

41

20Y-54-K2520

SCREW

42

20Y-54-K2240

PLATE¤ NAME,(LIMITED SUPPLY)

43

20Y-54-K2250

RIVET
