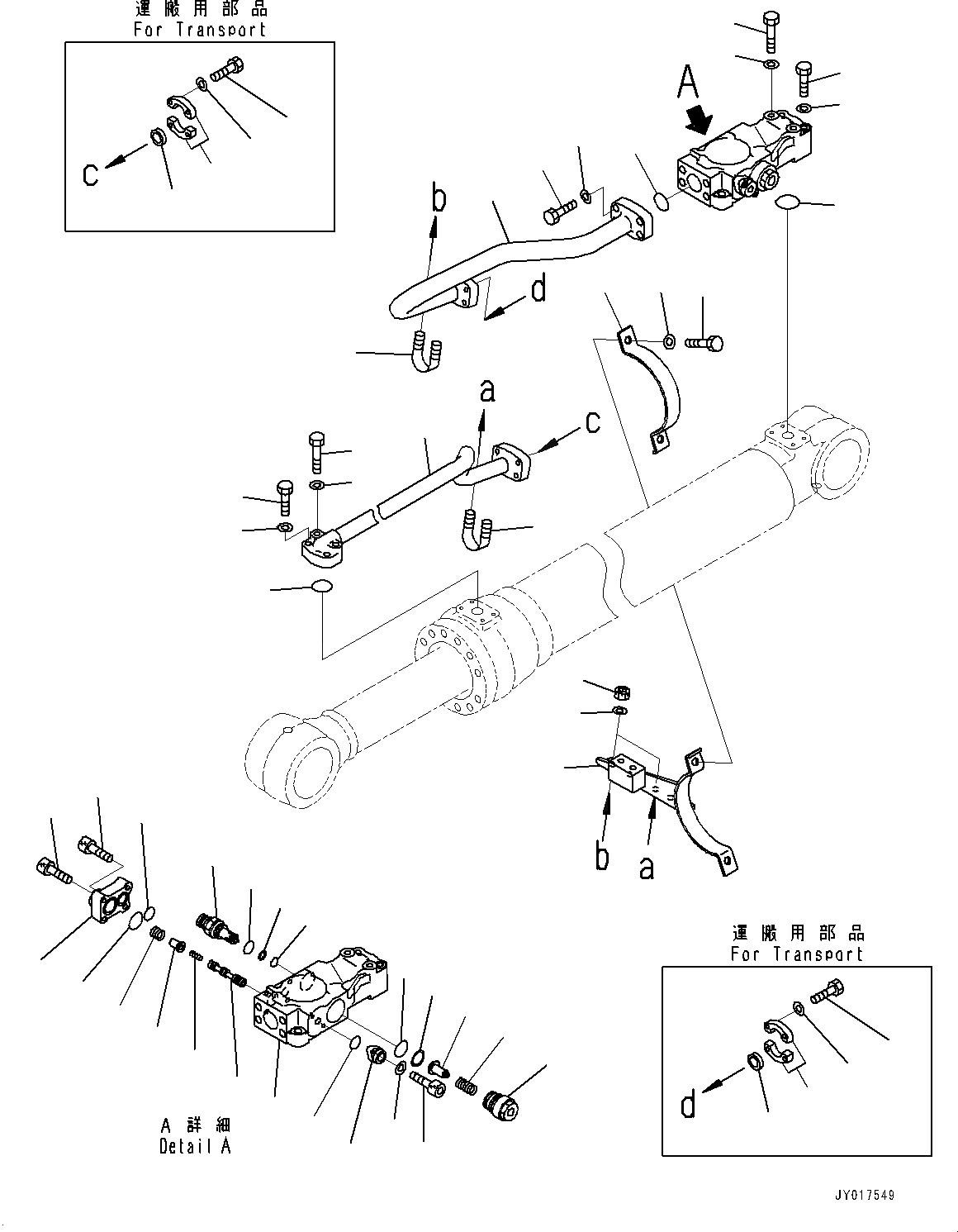

Запчасти Komatsu PC240LC ЦИЛИНДР СТРЕЛЫ, С ANTI-DROP КЛАПАН, LHS (№K79-) T РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

707-E1-00200

CYLINDER ASSEMBLY

1

206-62-K4440

TUBE

2

206-62-K4430

TUBE

|3

702-21-08390

VALVE, PILOT

3

VALVE, BODY

4

SPOOL

5

702-21-38510

CASE

6

RETAINER, D=2.0MM

|6

RETAINER, D=1.7MM

|6

RETAINER, D=2.3MM

|6

RETAINER, D=1.8MM

|6

RETAINER, D=1.9MM

|6

RETAINER, D=2.1MM

|6

RETAINER, D=2.2MM

7

702-21-38430

FLANGE

8

702-21-38440

SPRING

9

SPRING

10

702-21-38460

O-RING

11

702-21-38470

O-RING

12

702-21-38480

PLUG

13

01252-60825

BOLT

14

01252-60835

BOLT

15

01252-60620

BOLT

16

01641-20608

WASHER

17

07000-12021

O-RING

18

702-21-39690

VALVE

19

709-75-92220

SPRING

20

700-93-11320

O-RING

21

700-93-11330

RING, BACK-UP

22

723-90-66900

VALVE ASSEMBLY, RELIEF

23

700-80-64220

RING, BACK-UP

24

700-22-11410

O-RING

25

709-25-11390

O-RING

26

707-88-51170

BRACKET

27

07372-21060

BOLT

28

01643-51032

WASHER

29

07372-21045

BOLT

30

01643-51032

WASHER

31

707-88-21261

BAND

32

07000-13030

O-RING, (KIT : K07)

33

07372-21035

BOLT

34

01643-51032

WASHER

35

07283-32738

CLIP, PIPE

36

01597-01009

NUT

37

01643-31032

WASHER

38

07371-30640

FLANGE, SPLIT

39

707-88-33030

CAP

40

07371-31049

FLANGE, SPLIT

41

707-88-33040

CAP

42

07372-21050

BOLT

43

01643-51032

WASHER

44

07372-21040

BOLT

45

01643-51032

WASHER

46

07000-13035

O-RING, (KIT : K07)

47

07283-33442

CLIP, PIPE

K07

707-99-50400

SEAL KIT, HYDRAULIC CYLINDER
