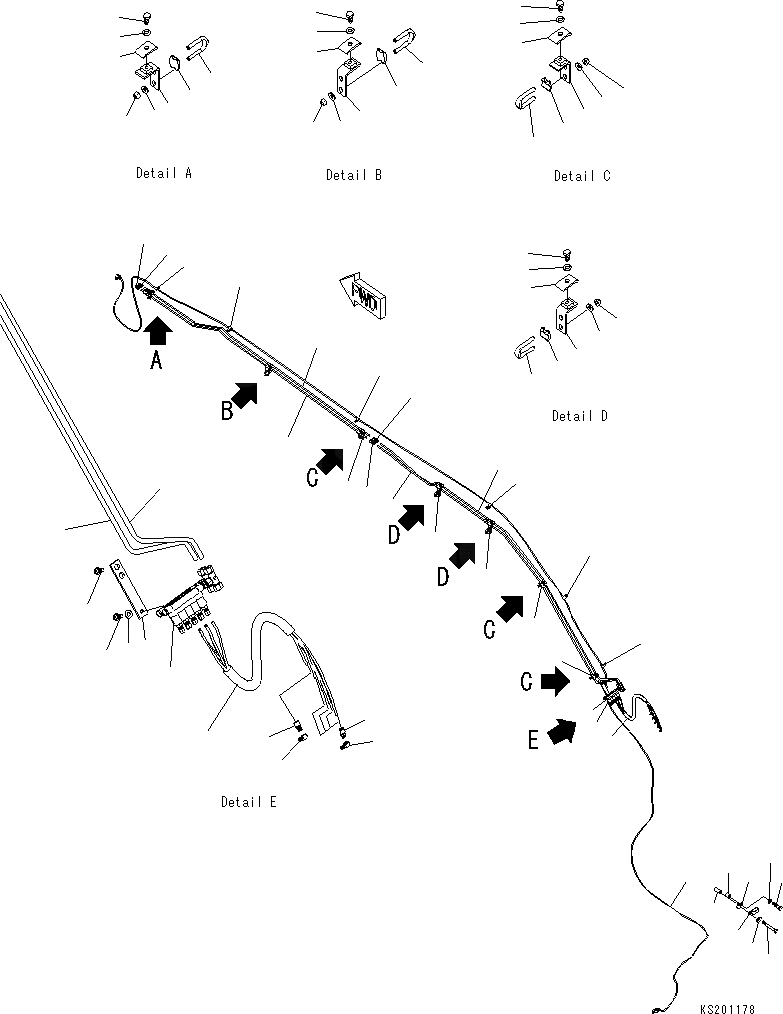

Запчасти Komatsu PC240LC-8K 1-СЕКЦИОНН. СТРЕЛА АВТОМАТИЧ. СМАЗ. ЧАСТИ(№K-) G АВТОМАТИЧ. СМАЗ. СИСТЕМА

1

20Y-62-K7540

FITTING

2

20Y-62-K7530

FITTING

|3

20Y-70-K4580

BLOCK ASSEMBLY

3

20Y-62-K7480

BLOCK

4

20Y-62-K8140

HOSE

5

20Y-62-K7870

BRACKET

6

206-70-K1070

TUBE

7

206-70-K1080

TUBE

8

20Y-62-K7520

UNION

9

206-70-K1090

TUBE

10

206-70-K1990

TUBE

11

20Y-62-K9431

BRACKET

|11

20Y-62-K9431

BRACKET

|11

20Y-62-K9430

BRACKET

12

07283-32746

CLIP

|12

07283-32746

CLIP

13

01643-31032

WASHER

|13

01643-31032

WASHER

14

01597-01009

"

|14

01597-01009

NUT

15

20Y-62-K8581

CLAMP

|15

20Y-62-K8581

CLAMP

|15

20Y-62-K8580

CLAMP

16

07283-52737

SEAT

|16

07283-52737

SEAT

17

01010-81025

BOLT

|17

01010-81025

BOLT

18

01643-31032

WASHER

|18

01643-31032

WASHER

19

04435-51212

CLIP

20

04434-50812

CLIP

|20

04435-51212

CLIP

21

04434-51812

CLIP

22

04435-52112

CLIP

23

20Y-62-K7311

BRACKET

|23

20Y-62-K7310

BRACKET

24

07283-33450

CLIP

25

07283-53444

SEAT

26

206-06-K2011

HARNESS

|26

206-06-K2010

HARNESS

27

20Y-06-K2770

SPACER

28

01010-81280

BOLT

29

01643-31232

WASHER

30

19533-11220

SPACER

31

01010-81260

BOLT

32

01643-31232

WASHER

33

01010-81240

BOLT

34

01010-81020

BOLT

|34

01010-81025

BOLT

35

01643-31032

WASHER
