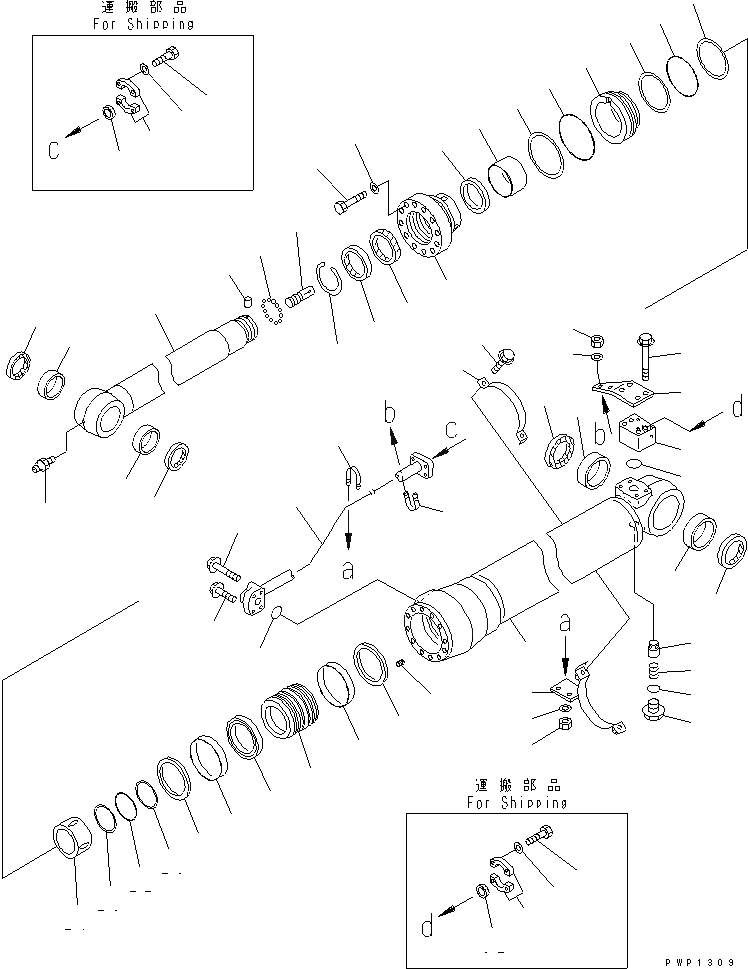

Запчасти Komatsu PC240LC-7K ЦИЛИНДР РУКОЯТИ ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

G-1

707-01-XY581

ARM CYLINDER GROUP,(FINAL COATING)

G-1

707-01-XY580

ARM CYLINDER GROUP,(FINAL COATING)

|1

707-01-0A371

CYLINDER ASS'Y

|1

707-01-0A370

CYLINDER ASS'Y

1

707-13-14550

CYLINDER

2

707-76-80470

BUSHING

3

07145-00080

SEAL,DUST (KIT)

4

707-58-10681

ROD,PISTON

|4

707-58-10680

ROD,PISTON

5

707-76-80470

BUSHING

6

07145-00080

SEAL (KIT)

7

707-27-14930

HEAD,CYLINDER

8

07179-13114

RING,SNAP

9

176-63-56170

SEAL,DUST (KIT)

10

707-52-90780

BUSHING

11

707-51-10030

PACKING,ROD (KIT)

12

07000-15130

O-RING (KIT)

13

707-35-91420

RING,BACK-UP (KIT)

14

707-51-10640

RING,BUFFER (KIT)

15

01010-81875

BOLT

16

707-41-11840

WASHER

17

707-36-14650

PISTON

18

707-44-14180

RING,PISTON (KIT)

19

707-39-14110

RING,WEAR (KIT)

20

707-44-14910

RING

21

707-71-61080

PLUNGER

22

07000-15090

O-RING (KIT)

23

07001-05090

RING,BACK-UP (KIT)

24

01310-01216

SCREW

25

707-71-70270

PLUNGER

26

07020-00000

FITTING,GREASE

27

707-71-32780

COLLAR

28

707-35-91420

RING,BACK-UP (KIT)

29

07000-15130

O-RING (KIT)

30

04260-00635

BALL

31

707-71-91270

CAP

32

707-83-13010

VALVE

33

07750-01628

SPRING

34

707-87-14070

PLUG

35

07002-12034

O-RING (KIT)

36

707-86-66340

TUBE

37

20D-62-17860

ELBOW

38

01435-01055

BOLT

39

01435-01040

BOLT

40

07000-13030

O-RING (KIT)

41

01435-01075

BOLT

42

07000-13035

O-RING (KIT)

43

707-88-22630

BRACKET

44

707-88-21321

BAND

45

01435-01030

BOLT

46

707-88-11560

PLATE

47

07283-22738

CLIP

48

01599-01011

NUT

49

01643-31032

WASHER

50

707-88-33030

HEAD

51

07371-30640

FLANGE

52

707-88-33040

CAP

53

07371-31049

FLANGE

54

07372-21035

BOLT

55

01643-51032

WASHER

K

707-99-58070

SERVICE KIT
