Запчасти Komatsu PC240LC-6K ОСНОВН. КЛАПАН (-АКТУАТОР) (/)(№K-K999) ГИДРАВЛИКА

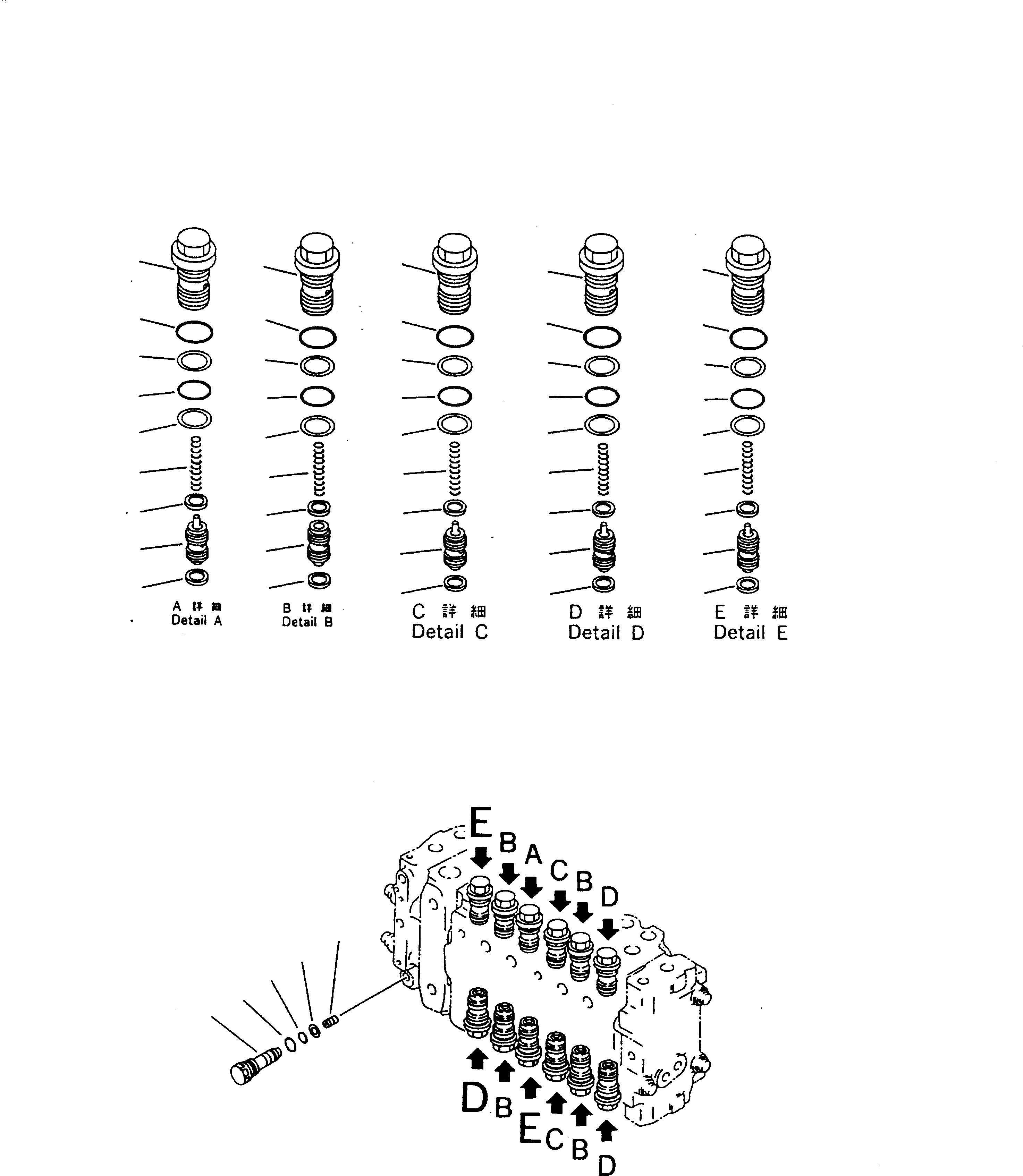

Схема запчастей Komatsu PC240LC-6K - ОСНОВН. КЛАПАН (-АКТУАТОР) (/)(№K-K999) ГИДРАВЛИКА
29
35
34
33
34
31
32
30
32
25
23
25
24
27
26
27
28
22
15
21
20
19
20
17
18
16
18
8
14
13
12
13
10
11
9
11
4
2
4
3
6
5
6
7
1
36
38
39
40
37

Артикул

Название

Примечание

Количество

|1

723-47-10701

CONTROL VALVE

|1

723-47-10700

CONTROL VALVE

|1

723-46-40100

VALVE ASS'Y

1

SLEEVE

2

PISTON SUB ASS'Y

3

SPRING

4

SEAL

5

700-93-11320

O-RING

6

723-46-41950

RING

7

07002-13634

O-RING

|8

723-46-40300

VALVE ASS'Y

8

SLEEVE

9

PISTON

10

SPRING

11

SEAL

12

700-93-11320

O-RING

13

723-46-41950

RING

14

07002-13634

O-RING

|15

723-46-41100

VALVE ASS'Y

15

SLEEVE

16

PISTON SUB ASS'Y

17

SPRING

18

SEAL

19

700-93-11320

O-RING

20

723-46-41950

RING

21

07002-13634

O-RING

|22

723-46-45100

VALVE ASS'Y

22

SLEEVE

23

PISTON SUB ASS'Y

24

SPRING

25

SEAL

26

700-93-11320

O-RING

27

723-46-41950

RING

28

07002-13634

O-RING

|29

723-46-46101

VALVE ASS'Y

29

SLEEVE

30

PISTON SUB ASS'Y

31

SPRING

32

SEAL

33

700-93-11320

O-RING

34

723-46-41950

RING

35

07002-13634

O-RING

|36

723-46-15100

PLUG ASS'Y

36

PLUG

37

SCREW

38

07002-11423

O-RING

39

07000-11007

O-RING

40

07001-01007

RING,BACK-UP

Выбрано товаров: 48
