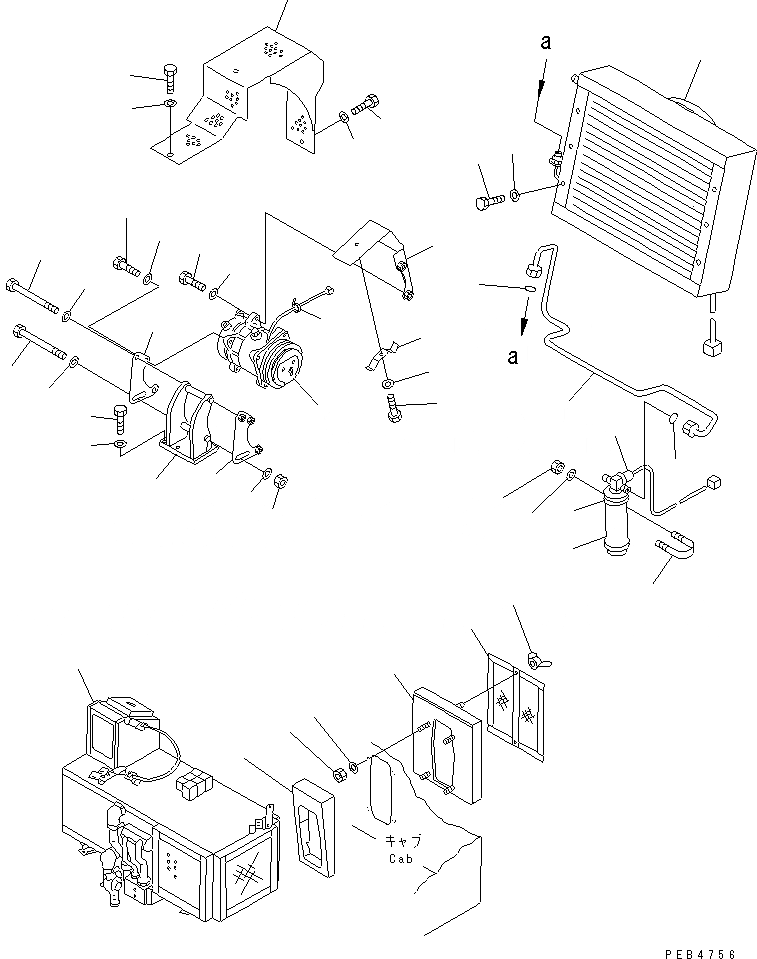

Запчасти Komatsu PC240LC-6K КОНДИЦ. ВОЗДУХА (БЛОК)(№K-K999) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

20Y-979-K353

UNIT ASS'Y

|1

20Y-979-K352

UNIT ASS'Y

2

20Y-977-K230

SEAL

3

20Y-977-K240

FILTER ASS'Y

4

20Y-977-K260

ELEMENT

5

20Y-977-K280

NUT

6

01580-10605

NUT

7

01643-30623

WASHER

8

20Y-979-K191

CONDENSOR ASS'Y

9

20Y-979-K180

TANK

9A

206-979-K370

SWITCH

9B

206-979-K380

TANK

10

20Y-979-K130

TUBE

11

20Y-979-K310

O-RING

12

01010-51020

BOLT

13

01643-31032

WASHER

14

07283-26155

CLIP

15

01599-01011

NUT

16

01643-31032

WASHER

17

206-979-K330

AIR COMPRESSOR ASS'Y

18

20Y-979-K260

CLIP

19

20Y-979-K270

BRACKET

20

01010-51030

BOLT

21

01643-31032

WASHER

22

20Y-979-K880

BRACKET

23

20Y-979-K890

CLAMP

24

01010-51030

BOLT

25

01643-31032

WASHER

26

01017-51040

BOLT

27

01643-31032

WASHER

28

20Y-979-K250

BRACKET

29

01011-51040

BOLT

30

01643-31032

WASHER

31

01011-51040

BOLT

32

01598-01011

NUT

33

01643-31032

WASHER

34

01010-51030

BOLT

35

01643-31032

WASHER

36

20Y-03-K1152

COVER

37

01010-51025

BOLT

38

01643-31032

WASHER

39

08034-00414

BAND
