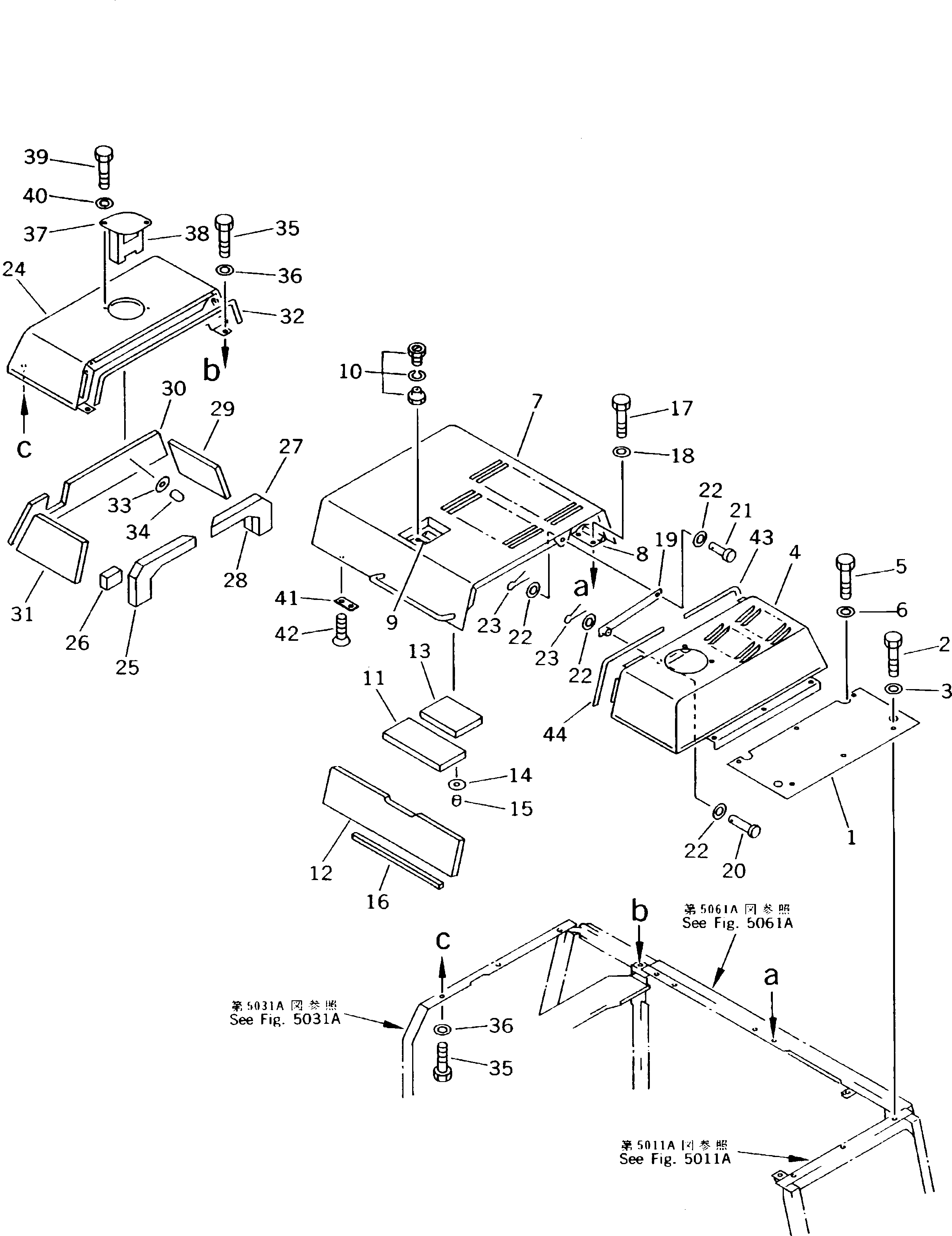

Запчасти Komatsu PC240LC-5K КАПОТ(№K-) ЧАСТИ КОРПУСА

1

20Y-54-K4440

COVER

2

01010-51230

BOLT

3

01643-31232

WASHER

4

206-54-58131

COVER

5

01010-51230

BOLT

6

01643-31232

WASHER

7

206-54-K2390

HOOD ASS'Y

8

206-54-K2590

HINGE (WELDED)

9

421-54-11372

LOCK ASS'Y (WELDED)

10

421-54-11381

LOCK

11

206-54-K2430

SHEET

12

206-54-K2420

SHEET

13

206-54-K2440

SHEET

14

205-54-K5371

WASHER

15

205-54-K5320

CAP

16

20Y-54-18360

SHEET

17

01010-51225

BOLT

18

01643-31232

WASHER

19

20Y-54-18331

BAR

20

04205-11042

PIN

21

04205-11022

PIN

22

01641-21016

WASHER

23

04050-13020

PIN,COTTER

24

206-54-K2290

COVER

25

206-54-K2210

SHEET

26

206-54-K2270

SHEET

27

206-54-K2220

SHEET

28

206-54-K2260

SHEET

29

206-54-K2240

SHEET

30

206-54-K2230

SHEET

31

206-54-K2250

SHEET

32

206-54-K2730

SEAL

33

205-54-K5371

WASHER

34

205-54-K5320

CAP

35

01010-51230

BOLT

36

01643-31232

WASHER

37

206-54-K2280

COVER

38

206-54-K2190

SHEET

39

01010-51220

BOLT

40

01643-31232

WASHER

41

205-54-68440

PLATE

42

01224-40616

SCREW

43

20Y-54-K4610

SEAL

44

20Y-54-K4590

SEAL
