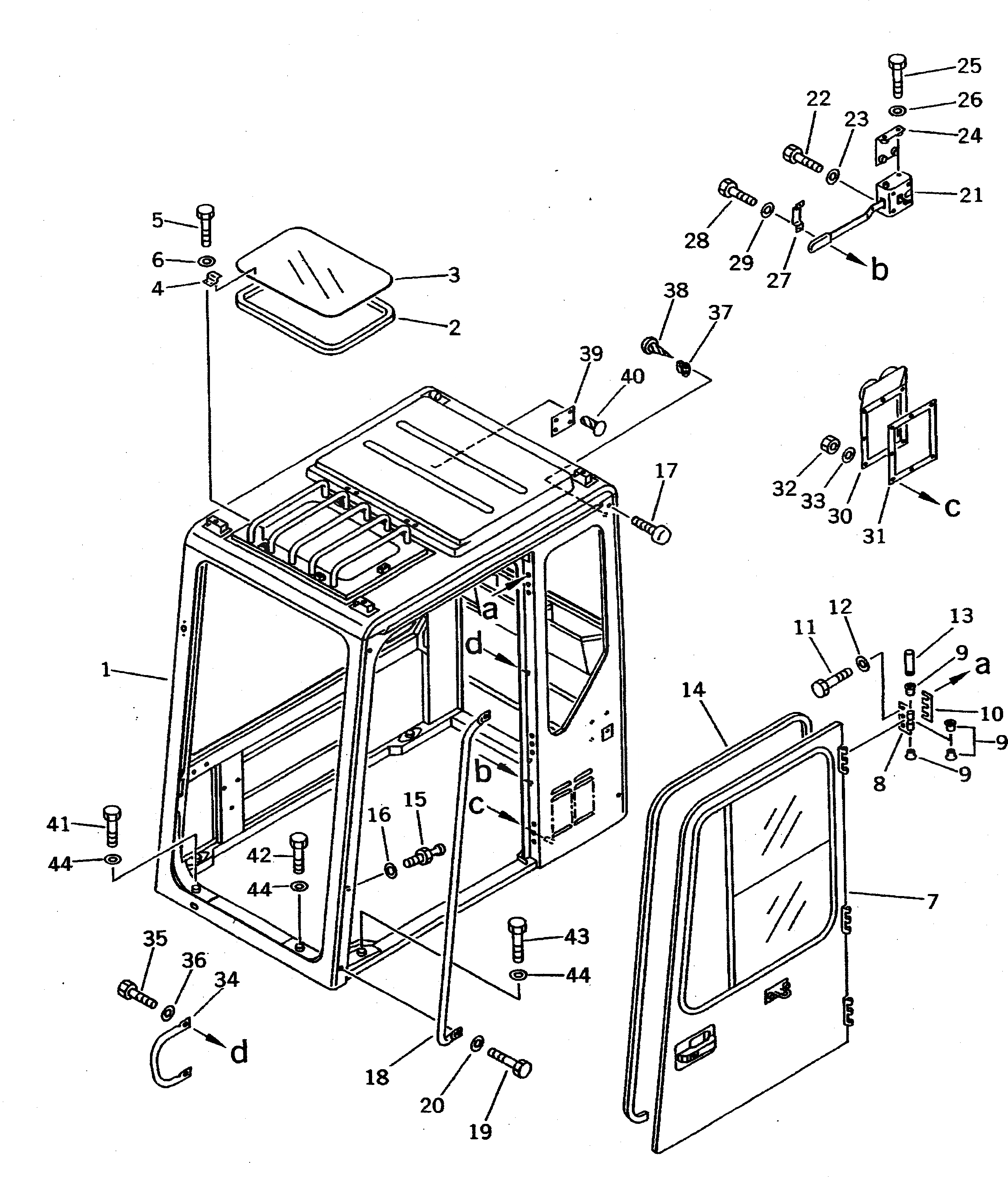

Запчасти Komatsu PC240LC-5K КАБИНА (КАБИНА И ДВЕРЬ) (ДЛЯ PDI) (/)(№K-K) ЧАСТИ КОРПУСА

|1

20Y-54-K1200

OPERATOR'S CAB ASS'Y

1

20Y-54-K3120

CAB

2

20Y-54-K3150

SEAL

3

20Y-54-K2930

GLASS,UPPER

4

20Y-54-K2950

CLAMP

5

20Y-54-K3130

SCREW

6

01641-20508

WASHER

7

20Y-54-K1830

DOOR ASS'Y,(SEE FIG.5215)

8

20Y-54-K1430

HINGE

9

20Y-54-K1960

BUSHING

10

20Y-54-K1970

SHIM

11

01010-50825

BOLT

12

01641-20812

WASHER

13

20Y-54-K1950

PIN

14

20Y-54-K2620

SEAL

15

20Y-54-K2550

BOLT

16

20Y-54-K2560

WASHER

17

20Y-54-K2290

BUFFER

18

20Y-54-K2530

HANDLE

19

01010-51030

BOLT

20

01641-21016

WASHER

21

20Y-54-K1330

LOCK BACK ASS'Y,(SEE FIG.5216)

22

01010-50816

BOLT

23

01641-20812

WASHER

24

20Y-54-K2190

COVER

25

20Y-54-K2750

SCREW

26

01641-20508

WASHER

27

20Y-54-K2210

BRACKET

28

20Y-54-K2740

SCREW

29

01641-20608

WASHER

30

20Y-54-K2910

BOX,VENT

31

20Y-54-K2920

SEAL

32

01580-10504

NUT

33

01641-20508

WASHER

34

20Y-54-K2540

HANDLE

35

01010-51030

BOLT

36

01641-21016

WASHER

37

20Y-54-K2510

HOOK

38

20Y-54-K2520

SCREW

39

20Y-54-K2240

PLATE¤ NAME,(LIMITED SUPPLY)

40

20Y-54-K2250

RIVET
