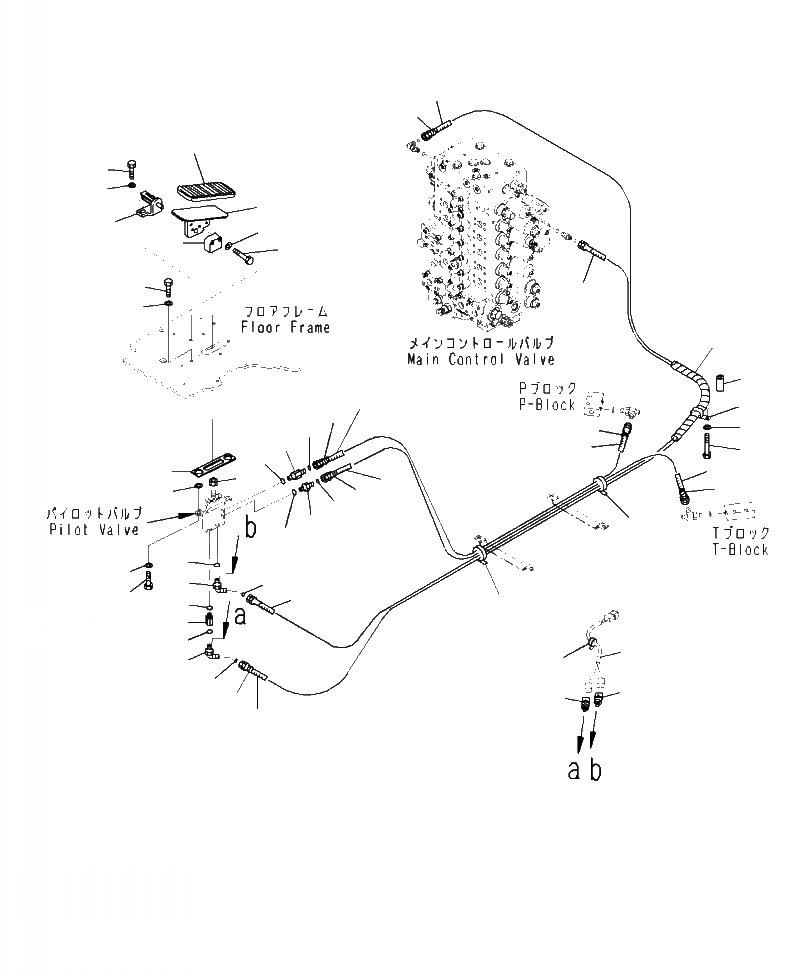

Запчасти Komatsu PC240LC-10 K- КАБИНА 1 УПРАВЛ. НАВЕСН. ОБОРУД. OPERATOR\XD S ОБСТАНОВКА И СИСТЕМА УПРАВЛЕНИЯ

1

22U-54-25660

SEAL

2

20Y-43-41760

SEAT

3

01010-81025

BOLT

4

01643-31032

WASHER

5

01643-31032

WASHER

6

2A5-62-12350

BRACKET

7

01010-81025

BOLT

8

01643-31032

WASHER

9

20Y-53-14220

PEDAL

10

01010-D1045

BOLT

11

01643-71032

WASHER

12

01010-81020

BOLT

13

01643-31032

WASHER

14

207-43-81240

CAP

15

20T-910-8660

NIPPLE

16

07000-12011

O-RING

17

20Y-62-52160

ELBOW

18

02896-11008

O-RING

19

07000-12011

O-RING

20

20Y-62-43470

NIPPLE

21

02896-11008

O-RING

22

11Y-62-12140

NIPPLE

23

02896-11008

O-RING

24

07000-12011

O-RING

25

2A5-62-12311

HOSE ASSEMBLY

26

2A5-62-13970

HOSE

27

2A5-62-12320

HOSE

28

2A5-62-12330

HOSE

29

2A5-62-13980

HOSE

30

20Y-62-22790

BAND, RED

31

20Y-62-22810

BAND, YELLOW

32

20Y-62-22820

BAND, BLUE

33

08034-20519

BAND

34

04435-51210

CLIP

35

175-40-22540

SPACER

36

01010-81070

BOLT

37

01643-31032

WASHER

38

01583-11408

NUT

39

206-06-61130

SWITCH

40

08034-20519

BAND

41

20Y-06-41251

WIRING HARNESS
