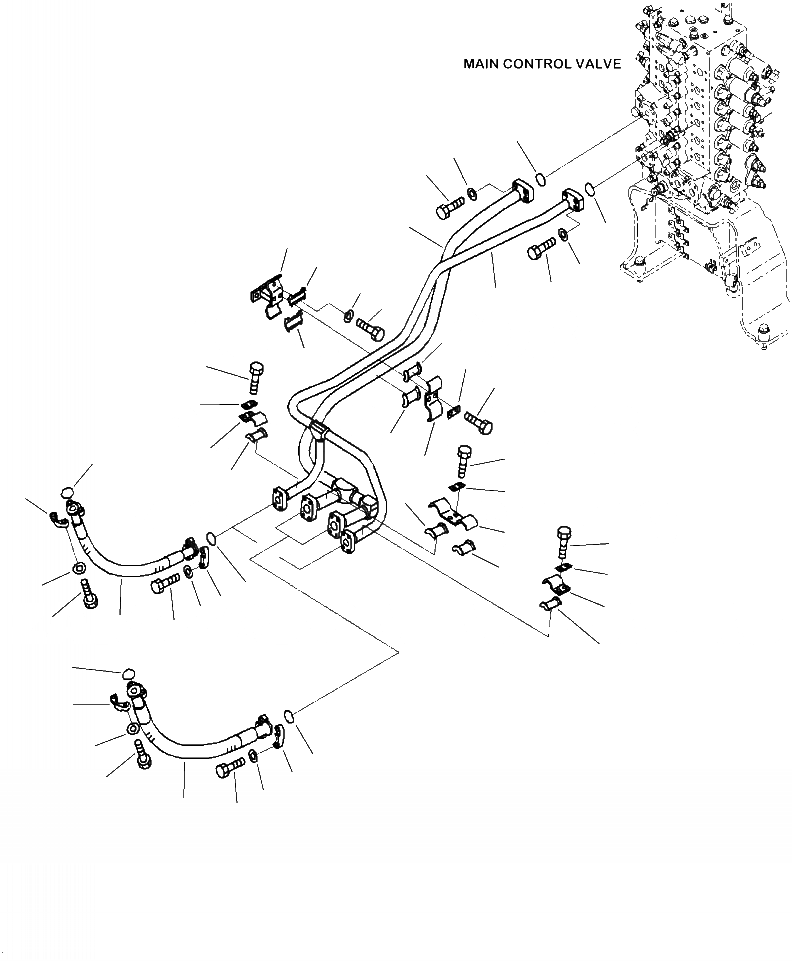

Запчасти Komatsu PC240LC-10 H- ГИДРОЛИНИЯ ГИДРОЛИНИЯ СТРЕЛЫ ГИДРАВЛИКА

1

206-62-32710

TUBE

2

2A5-62-11112

TUBE

3

07000-13032

O-RING

4

07000-13035

O-RING

5

07371-30640

FLANGE, SPLIT

6

07372-21035

BOLT

7

01643-51032

WASHER

8

07371-31049

FLANGE, SPLIT

9

07372-21035

BOLT

10

01643-51032

WASHER

11

07372-21040

BOLT

12

01643-51032

WASHER

13

206-62-31140

CLAMP

14

205-62-73430

SEAT, WELDED

15

20Y-62-13760

SEAT, WELDED

16

01010-81235

BOLT

17

01643-31232

WASHER

18

20Y-62-13740

CLAMP

19

20Y-62-13760

SEAT, WELDED

20

205-62-73430

SEAT, WELDED

21

2A5-62-11580

CLAMP

22

205-62-73430

SEAT, WELDED

23

20Y-62-13220

CLAMP

24

20Y-62-13760

SEAT, WELDED

25

01010-81235

BOLT

26

20Y-62-13450

PLATE

27

206-62-31722

HOSE

28

07000-13025

O-RING

29

07371-30640

FLANGE, SPLIT

30

07372-21035

BOLT

31

01643-51032

WASHER

32

206-62-31732

HOSE

33

07000-13032

O-RING

34

07371-31049

FLANGE, SPLIT

35

07372-21035

BOLT

36

01643-51032

WASHER
