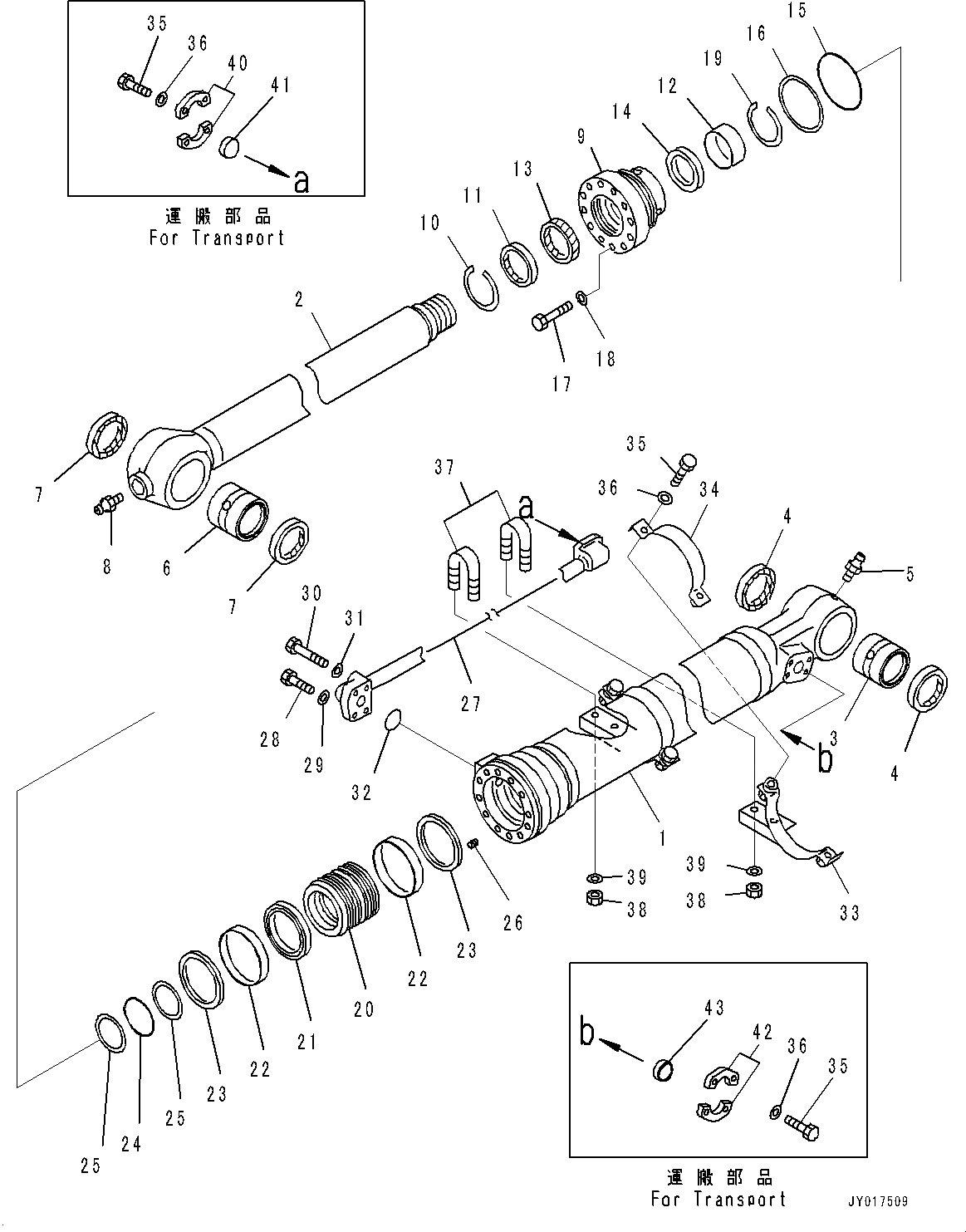

Запчасти Komatsu PC240LC-10 РУКОЯТЬ, MM, С ГИДРОМОЛОТОМ ГРЕЙФЕРН., ЦИЛИНДР КОВША РУКОЯТЬ, MM, С ГИДРОМОЛОТОМ ГРЕЙФЕРН.

|$1

707-E1-00960

Cylinder Assembly

1

721-13-13230

Cylinder

2

707-58-90E60

Rod, Piston

3

707-76-80431

Bushing

4

07145-00080

Seal, Dust, (Kit : K05)

5

07020-00000

Fitting, Grease

6

707-76-80020

Bushing

7

20Y-70-23230

Seal, Dust, (Kit : K05)

8

07020-00000

Fitting, Grease

9

707-27-13750

Cylinder Head

10

07179-13104

Ring, Snap

11

707-56-90740

Seal, Dust, (Kit : K05)

12

707-52-90681

Bushing

13

707-51-90860

Packing, Rod, (Kit : K05)

14

707-51-90650

Ring, Buffer, (Kit : K05)

15

07000-B5120

O-Ring, (Kit : K05)

16

707-35-31210

Ring, Back-Up, (Kit : K05)

17

01010-81875

Bolt

18

707-41-11840

Washer

19

707-75-90110

Ring, Snap

20

707-36-13780

Piston

21

707-44-13150

Ring, Piston, (Kit : K05)

22

707-39-13150

Ring, Wear, (Kit : K05)

23

707-44-13911

Ring

24

07000-B5080

O-Ring, (Kit : K05)

25

707-35-30800

Ring, Back-Up, (Kit : K05)

26

01310-01216

Screw

27

707-86-67820

Tube

28

07372-21045

Bolt

29

01643-51032

Washer

30

07372-21060

Bolt

31

01643-51032

Washer

32

07000-13030

O-Ring, (Kit : K05)

33

707-88-22640

Bracket

34

707-88-21331

Band

35

07372-21035

Bolt

36

01643-51032

Washer

37

07283-32738

Clip, Pipe

38

01597-01009

Nut

39

01643-31032

Washer

40

07371-30640

Flange, Split

41

707-88-33030

Cap

42

07371-31049

Flange, Split

43

707-88-33040

Cap

K05

707-99-48710

Seal Kit, Hydraulic Cylinder
