Запчасти Komatsu PC240LC-10 ЦИЛИНДР РУКОЯТИ ЦИЛИНДР РУКОЯТИ

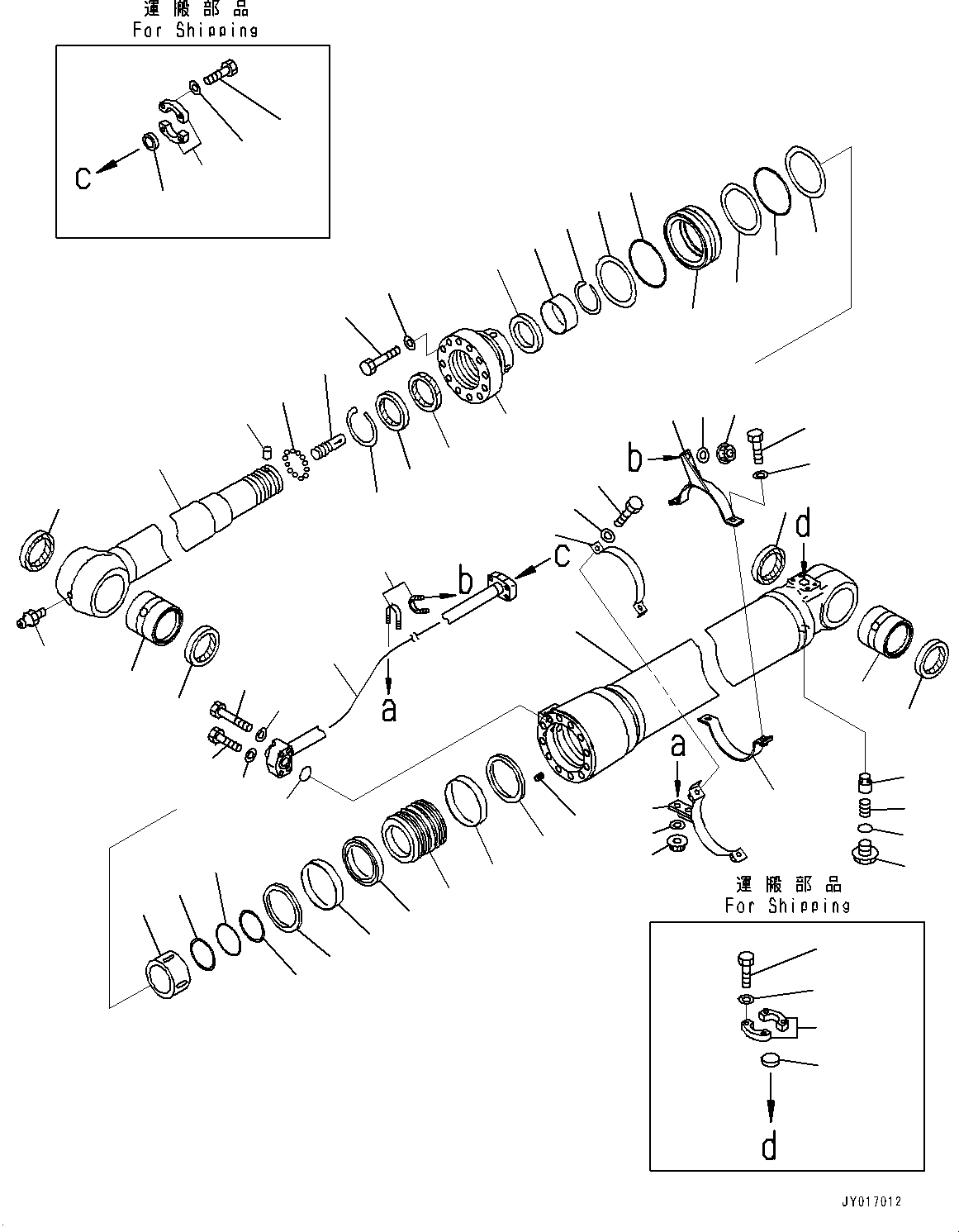

Схема запчастей Komatsu PC240LC-10 - ЦИЛИНДР РУКОЯТИ ЦИЛИНДР РУКОЯТИ
1
3
35
2
17
16
19
23
24
26
27
28
31
9
30
29
32
12
7
13
14
37
38
46
47
49
50
51
4
28
31
29
5
6
4
33
34
36
45
40
42
43
41
39
48
44
47
48
51
50
6
20
22
25
18
15
21
11
8
11
10
47
48
55
54
48
47
52
53

Артикул

Название

Примечание

Количество

|$1

707-E1-00180

Cylinder Assembly

1

721-13-14010

Cylinder

2

721-58-10070

Rod, Piston

3

707-76-80431

Bushing

4

07145-00080

Seal, Dust

5

707-76-80431

Bushing

6

07145-00080

Seal, Dust

7

07020-00000

Fitting, Grease

8

707-71-35150

Collar

9

707-71-71020

Plunger

10

07000-B5130

O-Ring, (Kit : K04)

11

707-35-31310

Ring, Back-Up, (Kit : K04)

12

707-71-80320

Plunger

13

04260-00635

Ball, Steel

14

707-71-91270

Cap

15

707-27-14690

Head, Cylinder

16

707-56-10740

Seal, Dust, (Kit : K04)

17

07179-13114

Ring, Snap

18

707-52-90781

Bushing

19

707-51-10860

Packing, Rod, (Kit : K04)

20

707-51-10650

Ring, Buffer, (Kit : K04)

21

707-35-31310

Ring, Back-Up, (Kit : K04)

22

07000-B5130

O-Ring, (Kit : K04)

23

01010-81875

Bolt

24

707-41-11840

Washer

25

707-75-10160

Ring, Snap

26

707-36-14650

Piston

27

707-44-14150

Ring, Piston, (Kit : K04)

28

707-39-14110

Ring, Wear, (Kit : K04)

29

707-35-30900

Ring, Back-Up, (Kit : K04)

30

07000-B5090

O-Ring, (Kit : K04)

31

707-44-14910

Ring, Back-Up

32

01310-01216

Screw

33

707-83-13010

Valve

34

07750-01628

Spring

35

707-87-14070

Plug

36

07002-12034

O-Ring, (Kit : K04)

37

707-86-67810

Tube

38

707-88-22630

Bracket

39

07372-21060

Bolt

40

01643-51032

Washer

41

07372-21045

Bolt

42

01643-51032

Washer

43

07000-13030

O-Ring, (Kit : K04)

44

707-88-28090

Bracket

45

707-88-28140

Band

46

707-88-21321

Band

47

07372-21035

Bolt

48

01643-51032

Washer

49

07283-32738

Clip, Pipe

50

01597-01009

Nut

51

01643-31032

Washer

52

07371-31049

Flange, Split

53

707-88-33040

Cap

54

07371-30640

Flange, Split

55

707-88-33030

Cap

K04

707-99-59430

Seal Kit, Hydraulic Cylinder

Выбрано товаров: 57
