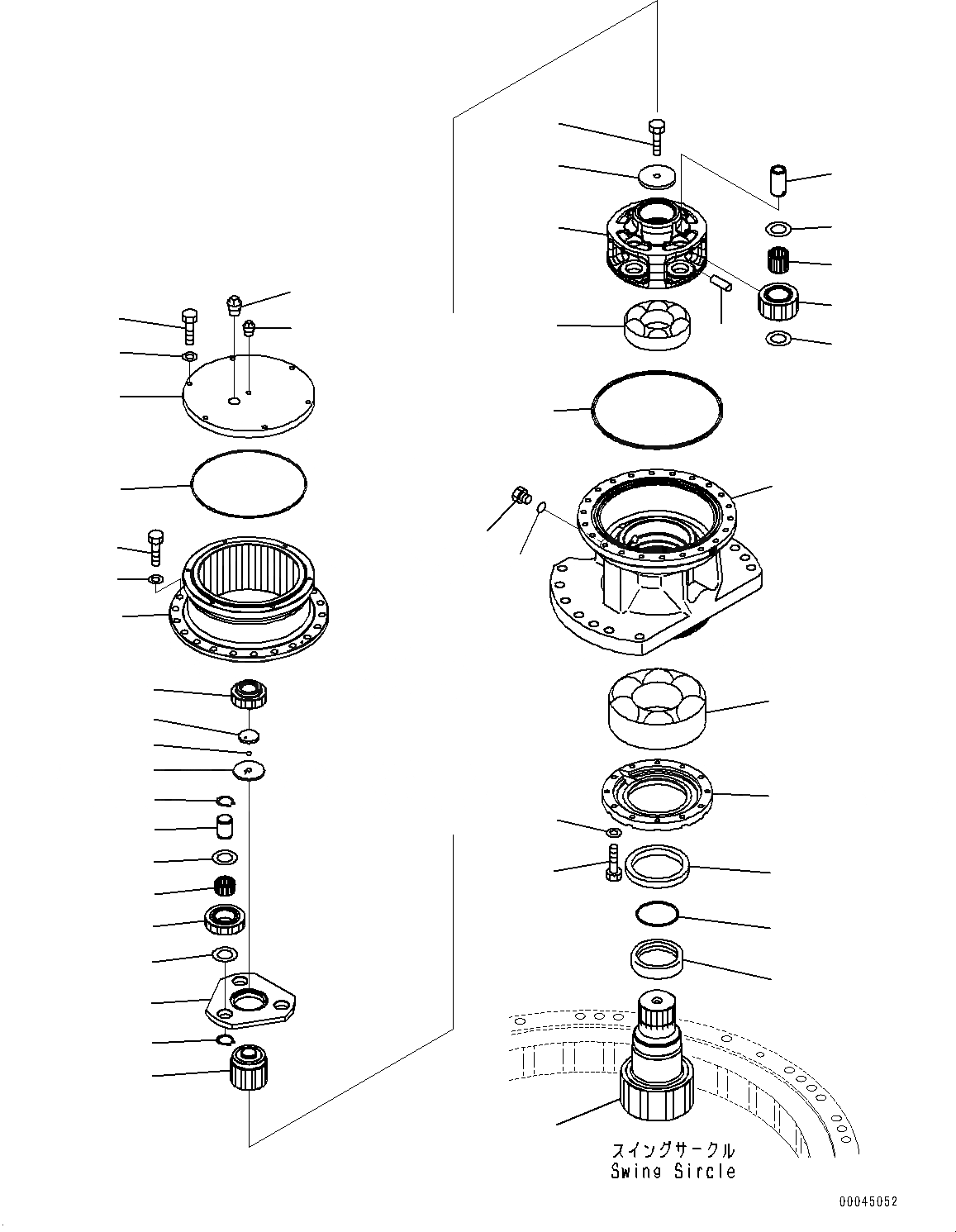

Запчасти Komatsu PC240LC-10 МЕХАНИЗМ ПОВОРОТА, ПОСТАВЛЯЕМЫЕ ЧАСТИ МЕХАНИЗМ ПОВОРОТА

|$0

206-26-00410

Swing Machinery Assembly

1

206-26-73310

Case

2

206-26-73150

Bearing

3

206-26-73160

Bearing

4

206-26-73130

Shaft

5

206-26-73140

Spacer

6

07000-15100

O-Ring

7

20Y-26-22420

Seal

8

206-26-73120

Cover

9

01010-81040

Bolt

10

01643-31032

Washer

11

07000-15310

O-Ring

12

206-26-71480

Carrier

13

206-26-71440

Gear

14

22U-26-21320

Bearing

15

206-26-71520

Washer, Thrust

16

206-26-71510

Pin

17

20Y-26-21330

Pin

18

20Y-26-21240

Plate

19

112-32-11211

Bolt

20

206-26-71452

Gear

21

20K-22-11190

O-Ring

22

01010-81440

Bolt

23

01643-31445

Washer

24

206-26-71430

Gear

25

04260-01270

Ball

26

206-26-71471

Carrier

27

206-26-71420

Gear

28

20Y-27-22210

Bearing

29

22U-26-21230

Washer, Thrust

30

206-26-71210

Pin

31

04064-03515

Ring

32

206-26-71350

Holder

33

206-26-71410

Gear

34

206-26-71341

Plate

35

20Y-26-31510

Cover

36

01010-81035

Bolt

37

01643-51032

Washer

38

07042-30617

Plug, Taper

39

07042-30108

Plug

40

07040-12412

Plug

41

07002-12434

O-Ring
