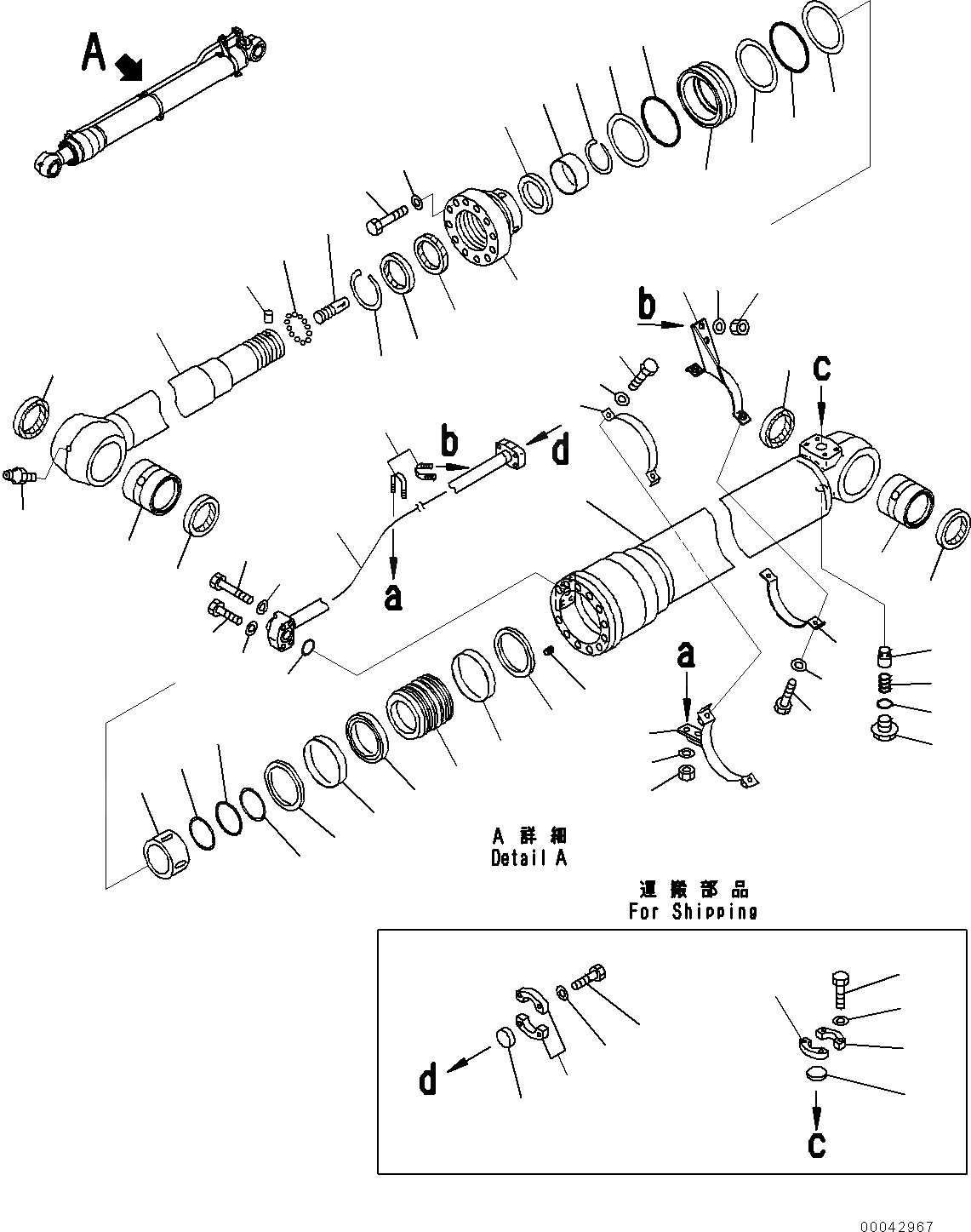

Запчасти Komatsu PC240-8K ЦИЛИНДР РУКОЯТИ(№-) РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

707-01-XS500

Cylinder Group

1

707-13-14820

Cylinder

2

707-76-80431

Bushing

3

07145-00080

Seal, Dust, (Kit : C02)

4

721-58-10070

Rod, Piston

5

707-27-14690

Cylinder Head

6

07179-13114

Ring, Snap

7

176-63-56170

Seal, Dust, (Kit : C02)

8

707-52-90780

Bushing

9

707-75-10160

Ring, Snap

10

707-51-10030

Packing, (Kit : C02)

11

07000-15130

O-ring, (Kit : C02)

12

707-35-91420

Ring, Back-up, (Kit : C02)

13

707-51-10650

Ring, (Kit : C02)

14

01010-81875

Bolt

15

707-41-11840

Washer

16

707-36-14650

Piston

17

707-44-14150

Ring, Piston, (Kit : C02)

18

707-39-14110

Ring, Wear, (Kit : C02)

19

707-44-14910

Ring

20

707-71-71020

Plunger

21

07000-15090

O-ring, (Kit : C02)

22

07001-05090

Ring, Back-up, (Kit : C02)

23

01310-01216

Screw

24

707-71-80270

Plunger

25

07020-00000

Fitting, Grease

26

707-71-34990

Collar

27

707-35-91420

Ring, Back-up, (Kit : C02)

28

07000-15130

O-ring, (Kit : C02)

29

04260-00635

Ball

30

707-71-91270

Cap

31

707-83-13010

Valve

32

07750-01628

Spring

33

707-87-14070

Plug

34

07002-12034

O-ring, (Kit : C02)

35

707-86-67810

Tube

36

07372-21060

Bolt

37

01643-51032

Washer

38

07372-21045

Bolt

39

01643-51032

Washer

40

07000-13030

O-ring, (Kit : C02)

41

707-88-28090

Bracket

42

707-88-28140

Band

43

707-88-22630

Bracket

44

707-88-21321

Band

45

07372-21035

Bolt

46

01643-51032

Washer

47

07283-32738

Clip, Pipe

48

01597-01009

Nut

49

01643-31032

Washer

50

707-88-33040

Cap

51

07371-31049

Flange, Split

52

07372-21035

Bolt

53

01643-51032

Washer

54

707-88-33030

Cap

55

07371-30640

Flange, Split

56

07372-21035

Bolt

57

01643-51032

Washer
