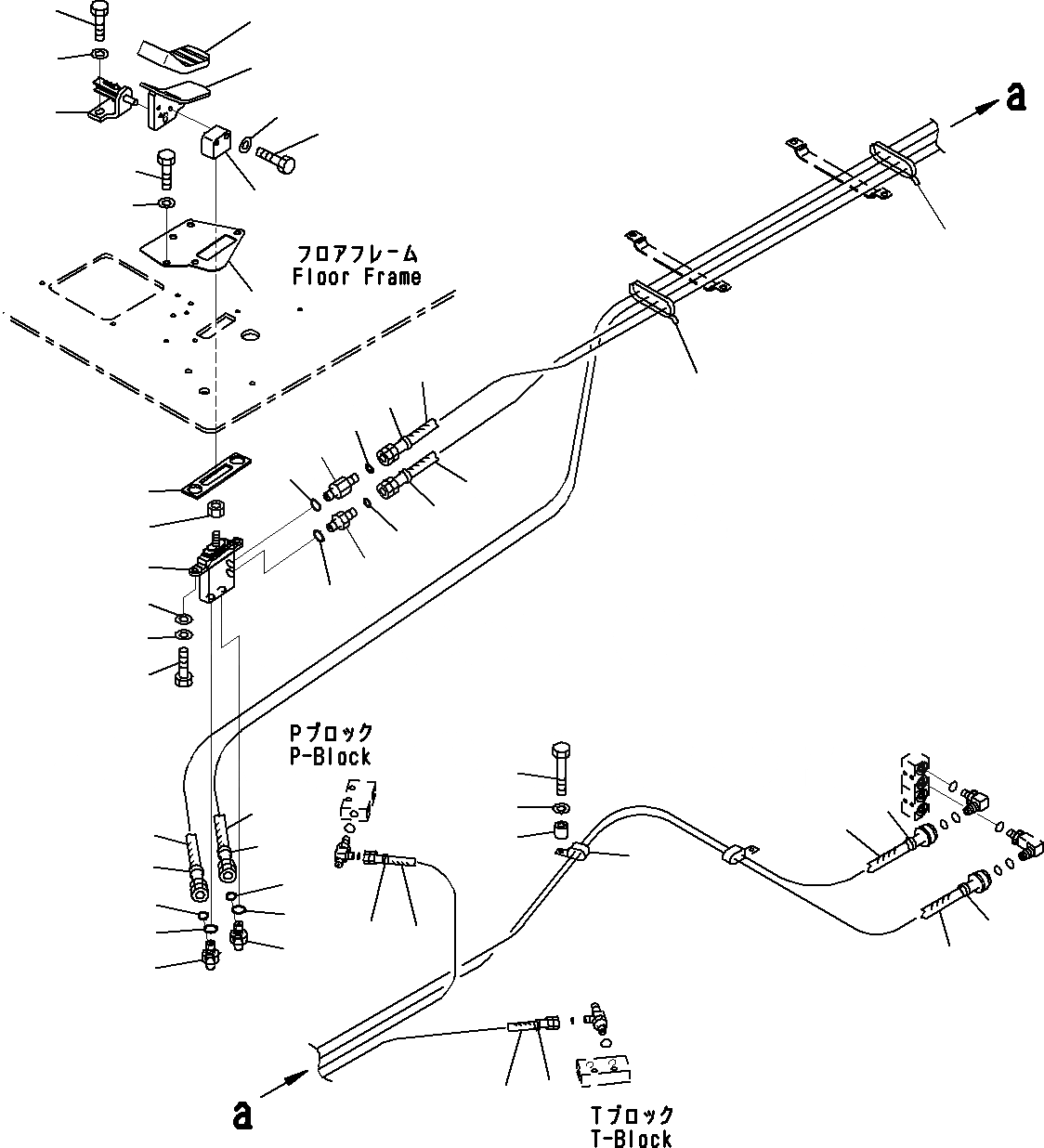

Запчасти Komatsu PC240-8K КРЕПЛЕНИЕ ПОЛАS (/)(№-) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

702-16-01230

Valve, Pilot, LHS

2

22U-54-25660

Seal

3

22U-43-21470

Seat

4

01010-81025

Bolt

5

01643-31032

Washer

6

01643-31032

Washer

7

20Y-62-25360

Bracket

8

01010-D1025

Bolt

9

01643-71032

Washer

10

20Y-43-31220

Pedal

11

01010-D1045

Bolt

12

01643-71032

Washer

13

22U-54-25180

Plate

14

01010-81020

Bolt

15

01643-31032

Washer

16

22U-54-25670

Cap

17

21W-62-43980

Elbow

18

02896-11008

O-ring

19

07000-12011

O-ring

20

20Y-62-43470

Nipple

21

02896-11008

O-ring

22

11Y-62-12140

Nipple

23

02896-11008

O-ring

24

07000-12011

O-ring

25

02760-00211

Hose

26

02760-00212

Hose, L=1200mm

27

20Y-62-43490

Hose, L=2400mm

28

20Y-62-43790

Hose, L=2450mm

29

20Y-62-22790

Band, Red

30

20Y-62-22820

Band, Blue

31

20Y-62-22840

Band, Black

32

20Y-62-22860

Band, Brown

33

08034-20536

Band

34

04435-51210

Clip

35

195-33-11220

Spacer

36

01010-81050

Bolt

37

01643-31032

Washer

38

01583-51408

Nut
