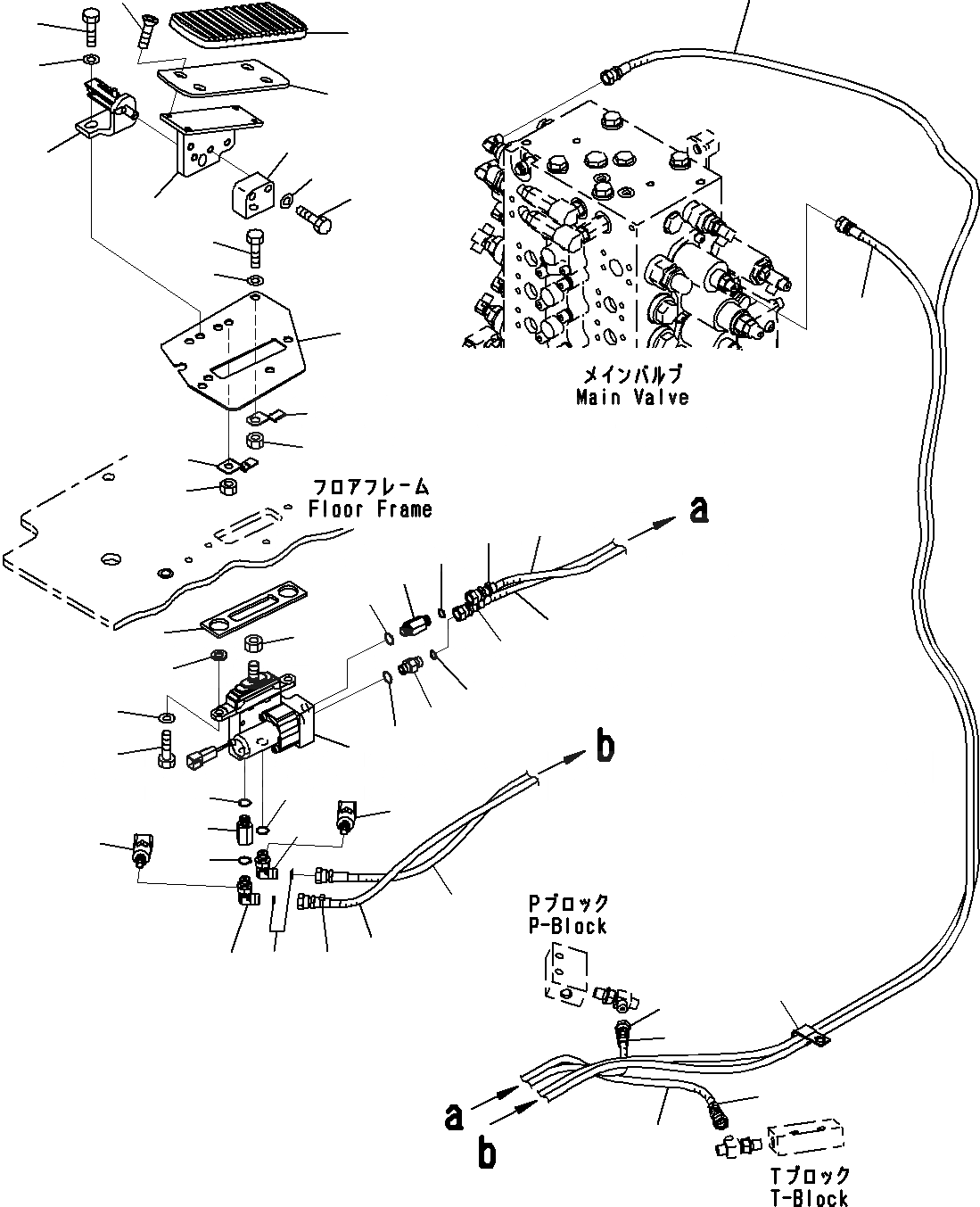

Запчасти Komatsu PC240-8K КАБИНА (9/)(№-) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

702-16-04290

Valve, Pilot

2

22U-54-25660

Seal

3

20Y-43-41760

Seat

4

01010-81025

Bolt

5

01643-31032

Washer

6

01643-31032

Washer

7

20Y-62-25360XC

Bracket

8

01010-D1035

Bolt

9

01643-71032

Washer

10

207-43-81250XC

Pedal

11

01010-D1045

Bolt

12

01643-71032

Washer

13

22U-54-25541XC

Plate

14

01010-81025

Bolt

15

01643-31032

Washer

16

207-43-81220XC

Pedal

17

01240-00816

Screw

18

207-43-81240

Cap

19

20T-910-8660

Nipple

20

07000-12011

O-ring

21

20Y-62-52160

Elbow

22

02896-11008

O-ring

23

07000-12011

O-ring

24

20Y-62-43470

Nipple

25

02896-11008

O-ring

26

11Y-62-12140

Nipple

27

02896-11008

O-ring

28

07000-12011

O-ring

29

20Y-62-52330

Hose, L=900mm

30

20Y-62-52340

Hose, L=4100mm

31

20Y-62-52350

Hose, L=3350mm

32

208-62-72480

Hose, L=1080mm

33

20Y-62-22790

Band, Red

34

20Y-62-22810

Band, Yellow

35

20Y-62-22820

Band, Blue

36

04435-51210

Clip

37

01583-11408

Nut

38

206-06-61130

Switch

39

08193-21012

Clip

40

08053-01510

Clip

41

01580-01008

Nut
