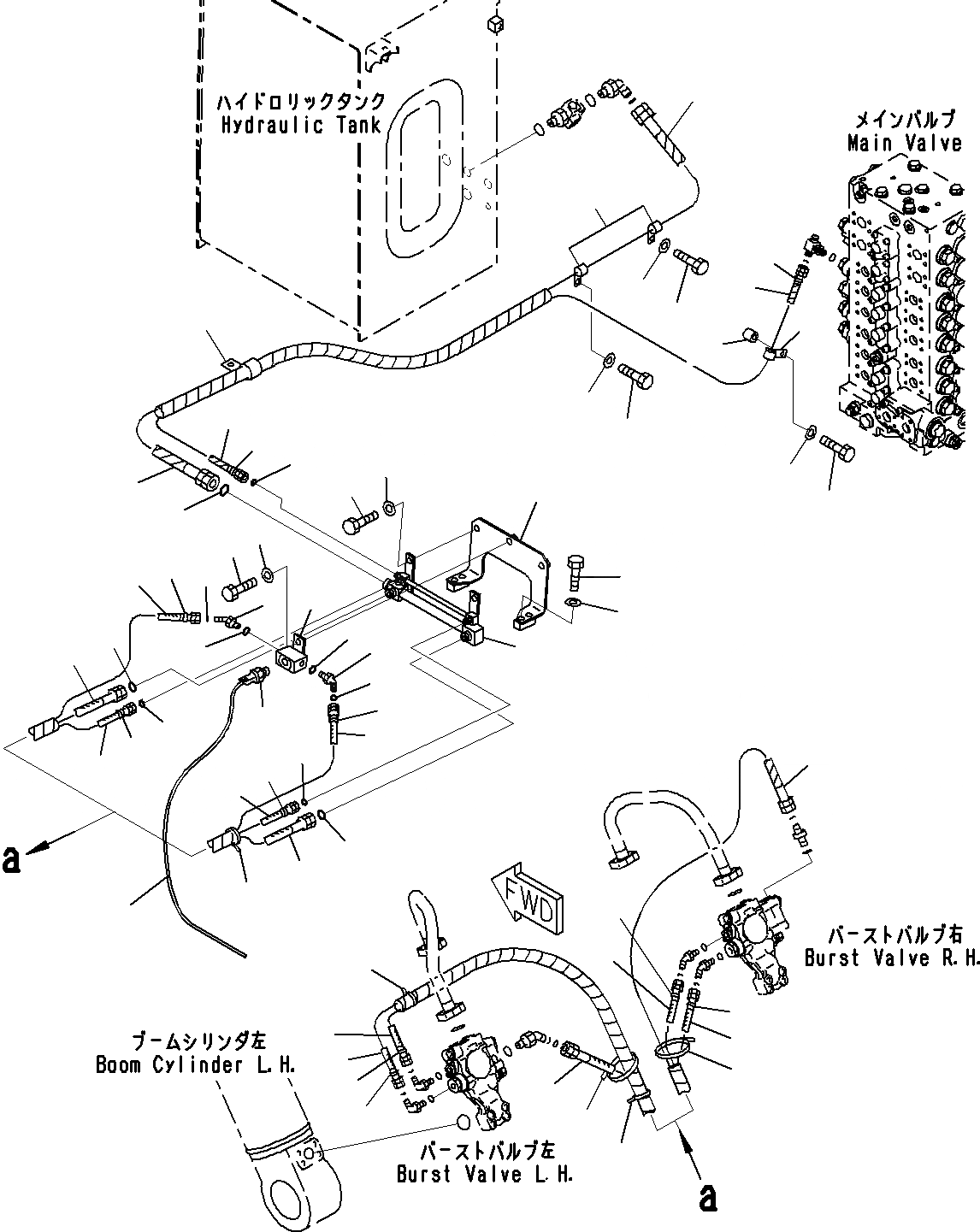

Запчасти Komatsu PC240-8K СТРЕЛА И РУКОЯТЬ HOLDING КЛАПАН КОНТУР (/)(№-) ГИДРАВЛИКА

1

22U-62-27290NK

Bracket

2

01010-81255

Bolt

3

20Y-62-13450

Plate

4

22U-62-27280

Block

5

01010-81230

Bolt

6

01643-31232

Washer

7

11Y-62-12240

Elbow

8

11Y-62-12160

Elbow

9

07002-11423

O-ring

10

02896-11008

O-ring

11

7861-93-1650

Sensor

12

7861-93-1780

Wire Harness

13

20Y-62-42730NK

Tube

14

01010-81230

Bolt

15

01643-31232

Washer

16

02896-11008

O-ring

17

02896-11012

O-ring

18

02896-11015

O-ring

19

02762-00406

Hose

20

02777-00211

Hose

21

02760-00210

Hose, L=1000mm

22

08034-20823

Band

23

20Y-62-22790

Band, Red

24

20Y-62-22850

Band, Green

25

02762-00410

Hose, L=1000mm

26

02760-002A6

Hose

27

20Y-62-22850

Band, Green

28

02777-002A6

Hose

29

20Y-62-22790

Band, Red

30

08034-20823

Band

31

02761-00215

Hose

32

02763-00520

Hose

33

20Y-62-22860

Band, Brown

34

281-01-13180

Clip

35

01010-81225

Bolt

36

01643-31232

Washer

37

198-61-14180

Clip

38

01010-81225

Bolt

39

01643-31232

Washer

40

04434-51212

Clip

41

175-61-17240

Collar

42

01010-81285

Bolt

43

01643-31232

Washer
