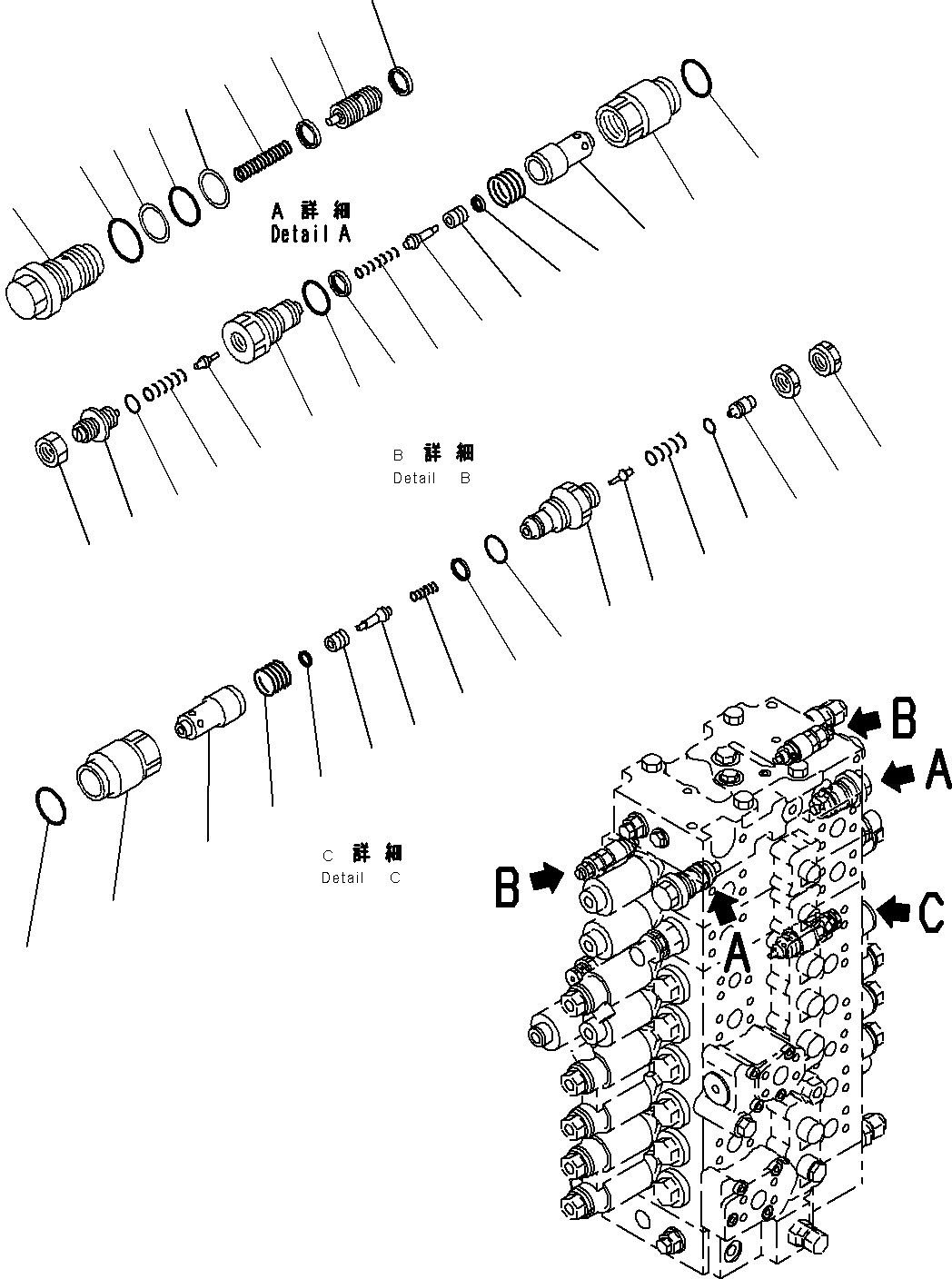

Запчасти Komatsu PC240-8K ОСНОВН. УПРАВЛЯЮЩ. КЛАПАН, ДЛЯ MACHINE С -ДОПОЛН. АКТУАТОР КОНТУР(№-) ГИДРАВЛИКА

|1

723-46-40100

Valve Assembly

1

723-46-41310

Sleeve

2

723-46-41610

Piston Subassembly

3

723-46-41920

Spring

4

723-46-41940

Seal

5

700-93-11320

O-ring

6

723-46-41950

Ring

7

07002-13634

O-ring

|7

709-70-74302

Valve Assembly, Suction

8

709-70-71112

Sleeve

9

709-70-71121

Sleeve

10

709-70-71630

Poppet

11

709-70-71640

Piston

12

709-70-71152

Plug

13

709-70-71162

Poppet

14

709-70-71173

Screw

15

709-70-71210

Spring

16

709-70-71220

Spring

17

709-70-71231

Spring

18

709-70-71610

Seal

19

700-20-71260

Seal

20

709-25-11390

O-ring

21

07002-12434

O-ring

22

07000-12011

O-ring

23

01583-11408

Nut

|23

723-90-62100

Valve Assembly, Suction

24

709-70-71112

Sleeve

25

709-70-71121

Sleeve

26

709-70-71630

Poppet

27

709-70-71640

Piston

28

723-40-91310

Plug

29

709-70-71162

Poppet

30

723-40-91320

Spacer

31

709-70-71210

Spring

32

709-70-71220

Spring

33

709-10-62120

Spring

34

709-70-71610

Seal

35

700-20-71260

Seal

36

07000-13024

O-ring

37

07002-12434

O-ring

38

07000-11008

O-ring

39

709-30-71120

Nut

40

709-30-71130

Nut
