Заказать запчасти

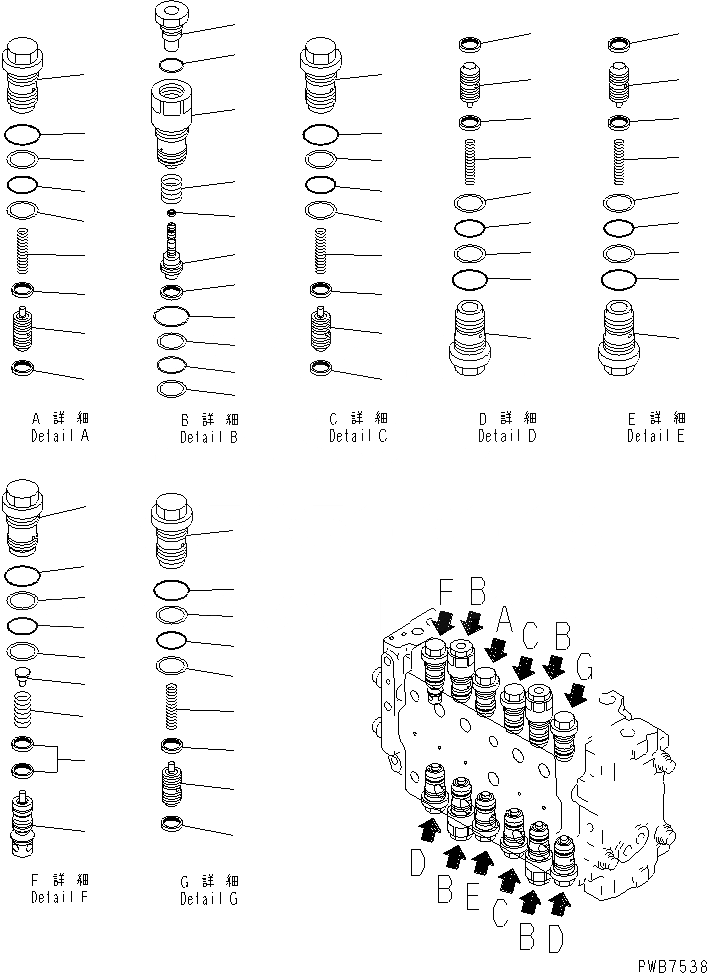

Запчасти Komatsu PC240-6K ОСНОВН. КЛАПАН (-АКТУАТОР) (/)(№K-) ГИДРАВЛИКА
№
Артикул
Название
Примечание
Количество
|1
723-47-13504
VALVE ASS'Y
|1
723-47-13503
VALVE ASS'Y
|1
BODY SUB ASS'Y
|1
BODY SUB ASS'Y
|1
723-46-40100
VALVE ASS'Y
1
SLEEVE
2
PISTON SUB ASS'Y
3
SPRING
4
SEAL
5
700-93-11320
O-RING
6
723-46-41950
RING
7
07002-13634
O-RING
|8
723-46-40702
VALVE ASS'Y
8
SLEEVE
9
PISTON
10
SPRING
11
SEAL
12
SEAL
13
700-93-11320
O-RING
14
723-46-41950
RING
15
07002-13634
O-RING
16
723-46-42981
PLUG
17
07002-12434
O-RING
|18
723-46-41100
VALVE ASS'Y
18
SLEEVE
19
PISTON SUB ASS'Y
20
SPRING
21
SEAL
22
700-93-11320
O-RING
23
723-46-41950
RING
24
07002-13634
O-RING
|25
723-46-45100
VALVE ASS'Y
25
SLEEVE
26
PISTON SUB ASS'Y
27
SPRING
28
SEAL
29
700-93-11320
O-RING
30
723-46-41950
RING
31
07002-13634
O-RING
|32
723-46-46101
VALVE ASS'Y
32
SLEEVE
33
PISTON SUB ASS'Y
34
SPRING
35
SEAL
36
700-93-11320
O-RING
37
723-46-41950
RING
38
07002-13634
O-RING
|39
723-46-43200
VALVE ASS'Y
39
SLEEVE
40
VALVE SUB ASS'Y
41
SPRING
42
SEAL
43
700-93-11320
O-RING
44
723-46-41950
RING
45
07002-13634
O-RING
46
723-46-41980
RETAINER
|47
723-46-46300
VALVE ASS'Y
47
SLEEVE
48
PISTON SUB ASS'Y
49
SPRING
50
SEAL
51
700-93-11320
O-RING
52
723-46-41950
RING
53
07002-13634
O-RING
Выбрано товаров: 64
