Запчасти Komatsu PC240-5K ЛЕВ. COVER(№K-) ЧАСТИ КОРПУСА

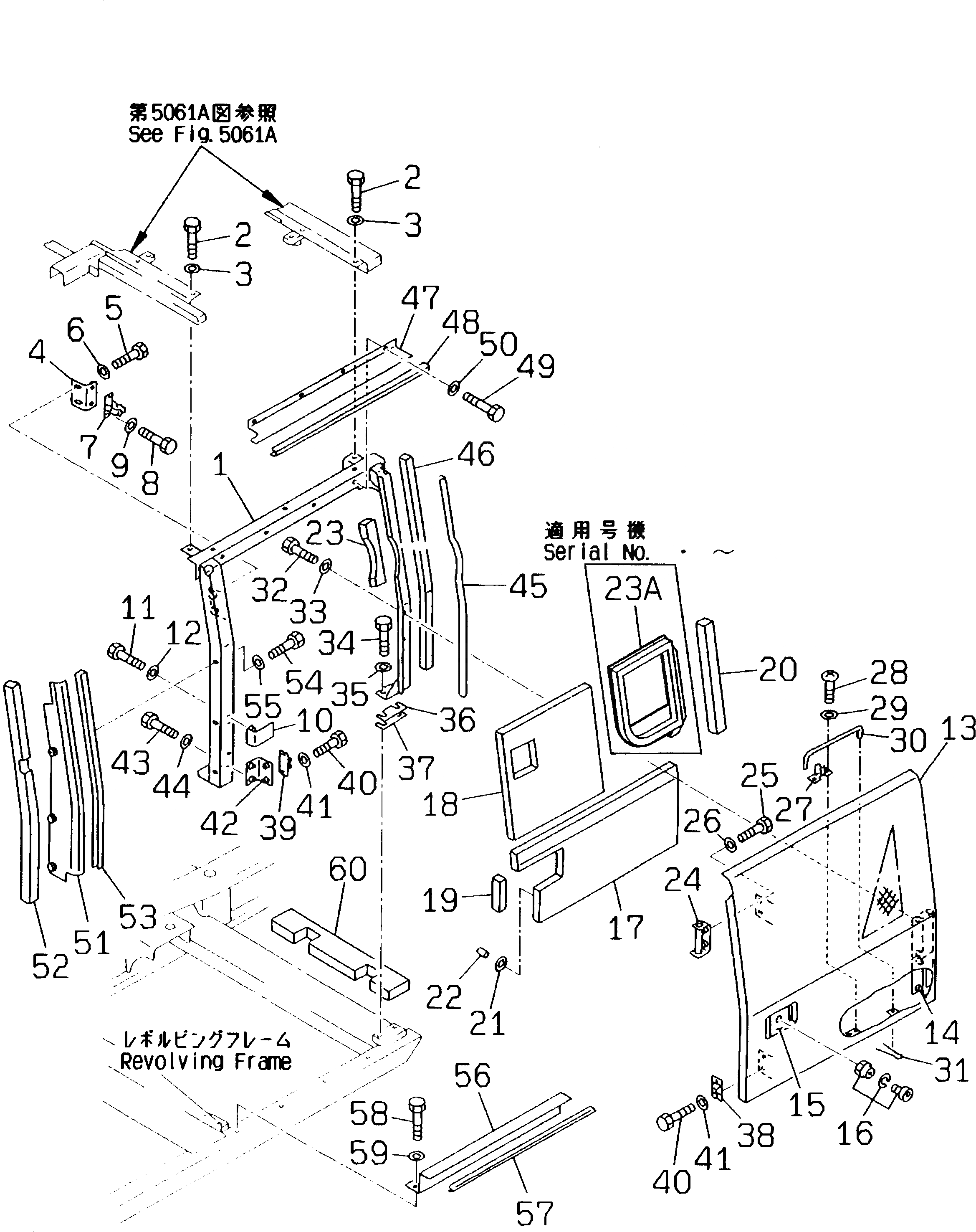

Схема запчастей Komatsu PC240-5K - ЛЕВ. COVER(№K-) ЧАСТИ КОРПУСА

Артикул

Название

Примечание

Количество

1

206-54-58440

FRAME

2

01010-51230

BOLT

3

01643-31232

WASHER

4

20Y-54-12941

PLATE

5

01010-51225

BOLT

6

01643-31232

WASHER

7

20Y-54-12920

CLAMP

8

01010-51020

BOLT

9

01643-31032

WASHER

10

20Y-54-12380

PLATE

11

01010-51025

BOLT

12

01643-31032

WASHER

13

20Y-54-K4680

DOOR

14

20Y-54-12750

HINGE (WELDED)

15

421-54-11372

LOCK ASS'Y (WELDED)

16

421-54-11381

LOCK

17

20Y-54-K4710

SHEET

18

20Y-54-K4860

SHEET

19

20Y-54-12760

SEAL

20

20Y-54-K4810

SHEET

21

205-54-K5371

WASHER

22

205-54-K5320

CAP

23

20Y-54-K5130

SHEET

23A

206-54-59880

PLATE

24

207-54-31870

BRACKET

25

01010-51020

BOLT

26

01643-31032

WASHER

27

20B-54-12210

SPRING

28

01220-40408

SCREW

29

01641-20405

WASHER

30

205-54-64140

BAR

31

04050-13018

PIN,COTTER

32

01010-51225

BOLT

33

20Y-54-12670

WASHER

34

01010-51230

BOLT

35

01643-31232

WASHER

36

20Y-54-12690

PLATE¤ 1.0MM

37

20Y-54-12680

PLATE¤ 3.2MM

38

205-54-53550

DOVE TAIL

39

205-54-51970

DOVE TAIL

40

01010-50616

BOLT

41

01643-30623

WASHER

42

20Y-54-12980

BRACKET

43

01010-51025

BOLT

44

01643-31032

WASHER

45

20Y-54-K4830

SEAL

46

20Y-54-K4980

SHEET

47

20Y-54-K4750

BRACKET

48

20Y-54-K4740

SEAL

49

01010-50616

BOLT

50

01643-30623

WASHER

51

20Y-54-K4770

BRACKET

52

20Y-54-K4790

SHEET

53

20Y-54-K4820

SEAL

54

01010-51020

BOLT

55

01643-31032

WASHER

56

20Y-54-K4720

BRACKET

57

20Y-54-K4740

SEAL

58

01010-51225

BOLT

59

01643-31232

WASHER

60

206-54-K2690

SHEET

Выбрано товаров: 61
