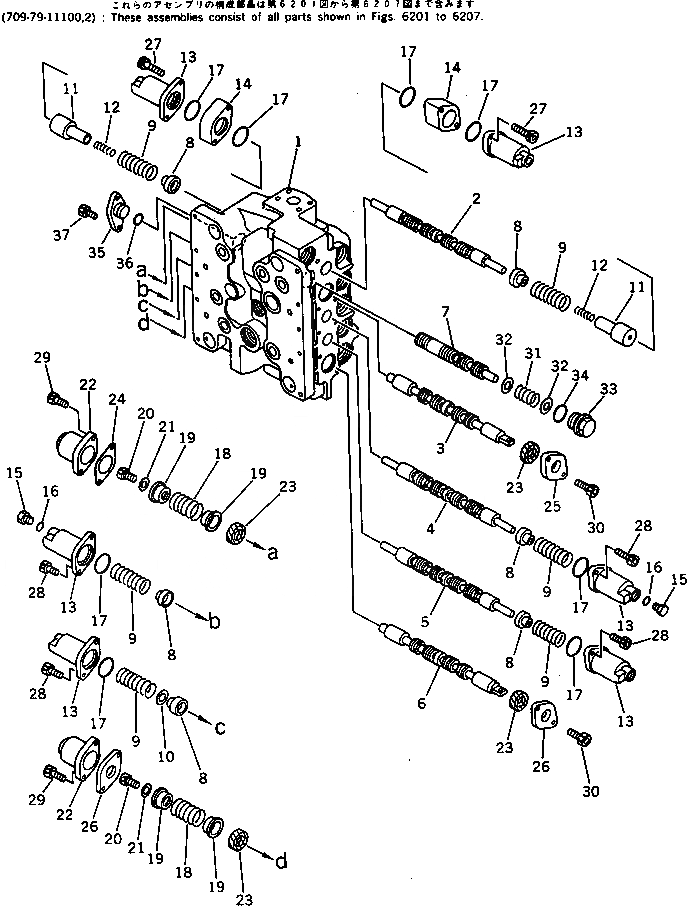

Запчасти Komatsu PC240-3K УПРАВЛЯЮЩ. КЛАПАН (/7) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

709-79-12107

CONTROL VALVE ASS'Y

|1

709-75-92104

VALVE ASS'Y

1

BODY,VALVE

2

SPOOL,SWING

3

SPOOL,BOOM HIGH

4

SPOOL,SERVICE

5

SPOOL,ARM

6

SPOOL,L.H. TRAVEL

7

SPOOL

8

709-74-92110

RETAINER

9

709-74-92180

SPRING

10

709-74-92420

RETAINER

11

709-74-92430

SPRING

12

709-74-92120

CASE

13

709-74-92580

CASE

14

07040-11409

PLUG

15

07002-01423

O-RING

16

709-74-92170

O-RING

17

01252-30820

BOLT

18

01252-30820

BOLT

19

709-75-92110

PLATE

20

709-75-92120

SEAL

21

709-75-92180

SPRING

22

709-75-92130

RETAINER

23

01252-30812

BOLT

24

01643-30823

WASHER

25

709-75-92140

CASE

26

01252-30812

BOLT

27

01252-30825

BOLT

28

709-74-92210

SPRING

29

709-74-92270

WASHER

30

709-74-92230

PLUG

31

07002-03034

O-RING

32

709-74-92260

PLATE

33

07000-02018

O-RING

34

01252-30820

BOLT

35

709-74-92590

PLATE
