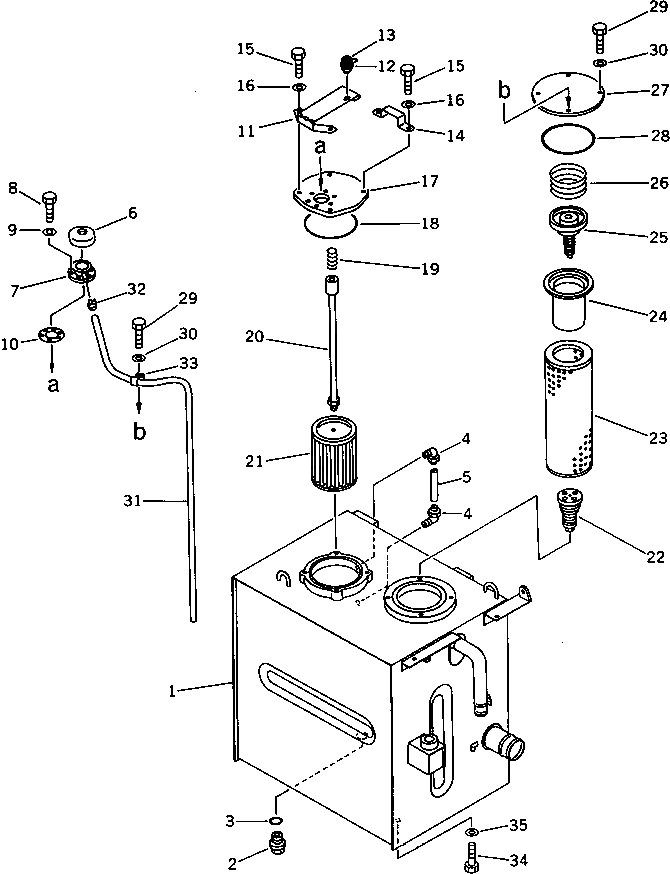

Запчасти Komatsu PC240-3K ГИДРАВЛ МАСЛ. БАК УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

205-60-00083

HYDRAULIC TANK ASS'Y

1

205-60-71114

TANK,HYDRAULIC

2

07044-13620

PLUG

3

07002-03634

O-RING

4

203-60-31100

ELBOW ASS'Y

5

203-60-31160

TUBE

6

201-60-12190

CAP ASS'Y

7

201-60-12171

FILLER

8

01220-40516

SCREW

9

01601-20513

WASHER,SPRING

10

205-60-51460

GASKET

11

205-60-71190

COVER

12

205-60-71220

LOCK ASS'Y

13

205-54-76280

ROTOR ASS'Y

14

205-60-71210

BRACKET

15

01010-51035

BOLT

16

01643-51032

WASHER

17

203-60-31192

COVER

18

07000-05180

O-RING

19

12R-60-11230

SPRING

20

205-60-71170

SUPPORT

21

205-60-51450

STRAINER,STRAINER

22

205-60-71270

VALVE

23

195-60-16320

ELEMENT

24

206-60-41221

STRAINER

25

12R-60-11300

VALVE ASS'Y

26

12R-60-11390

SPRING

27

205-60-71141

COVER

28

07000-05180

O-RING

29

01010-51230

BOLT

30

01643-31232

WASHER

31

207-60-11350

TUBE

32

07285-00100

CLIP

33

08036-11214

CLIP

34

01010-51635

BOLT

35

01643-31645

WASHER
