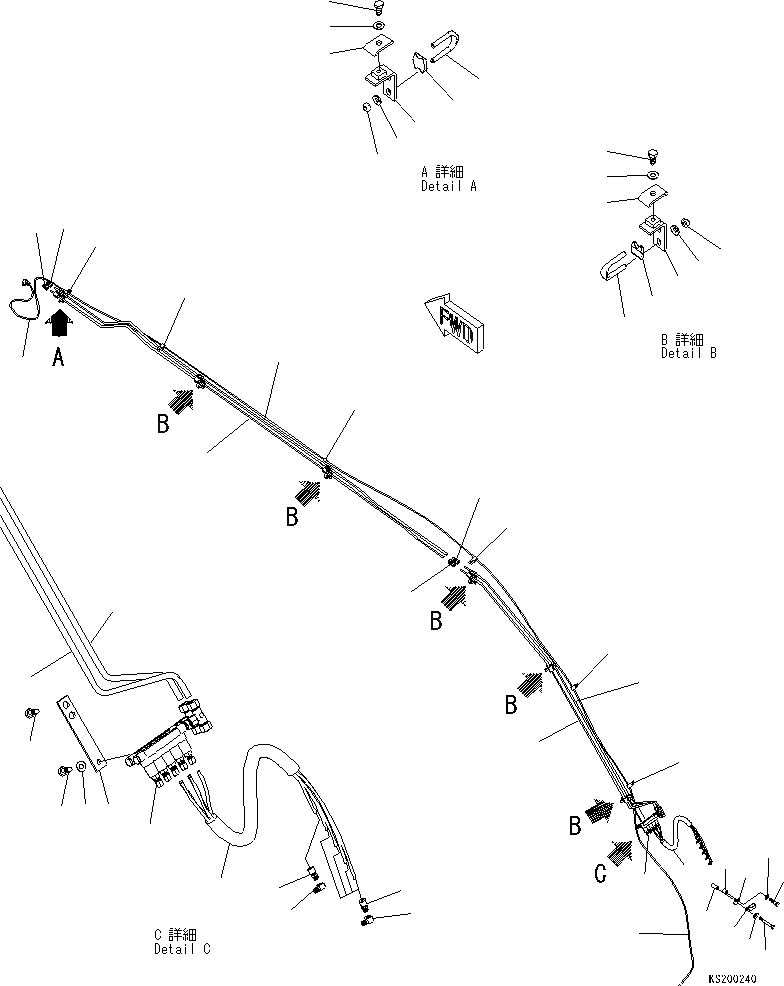

Запчасти Komatsu PC230NHD-8K 1-СЕКЦИОНН. СТРЕЛА АВТОМАТИЧ. СМАЗ. ЧАСТИ(№K-) G АВТОМАТИЧ. СМАЗ. СИСТЕМА

1

20Y-62-K7540

FITTING

2

20Y-62-K7530

FITTING

|3

20Y-70-K4580

BLOCK ASSEMBLY

3

20Y-62-K7480

BLOCK

4

20Y-62-K8140

HOSE

5

20Y-62-K7870

BRACKET

6

20Y-62-K7360

TUBE

7

20Y-62-K7370

TUBE

8

20Y-62-K7520

UNION

9

20Y-62-K7380

TUBE

10

20Y-62-K7390

TUBE

11

20Y-62-K9432

BRACKET

11

20Y-62-K9431

BRACKET

12

07283-32746

CLIP

13

01643-31032

WASHER

14

01597-01009

NUT

15

20Y-62-K8582

CLAMP

15

20Y-62-K8581

CLAMP

16

07283-52737

SEAT

17

07283-53444

SEAT

18

01010-81025

BOLT

19

01643-31032

WASHER

20

04435-51212

CLIP

21

04434-50812

CLIP

22

04434-51812

CLIP

23

04435-52112

CLIP

24

20Y-62-K7312

BRACKET

24

20Y-62-K7311

BRACKET

25

07283-33450

CLIP

26

20Y-06-K1031

HARNESS

27

20Y-06-K2770

SPACER

28

01010-81280

BOLT

29

01643-31232

WASHER

30

195-33-11220

SPACER

31

01010-81260

BOLT

32

01643-31232

WASHER

33

01010-81240

BOLT

34

01010-81020

BOLT

35

01643-31032

WASHER
