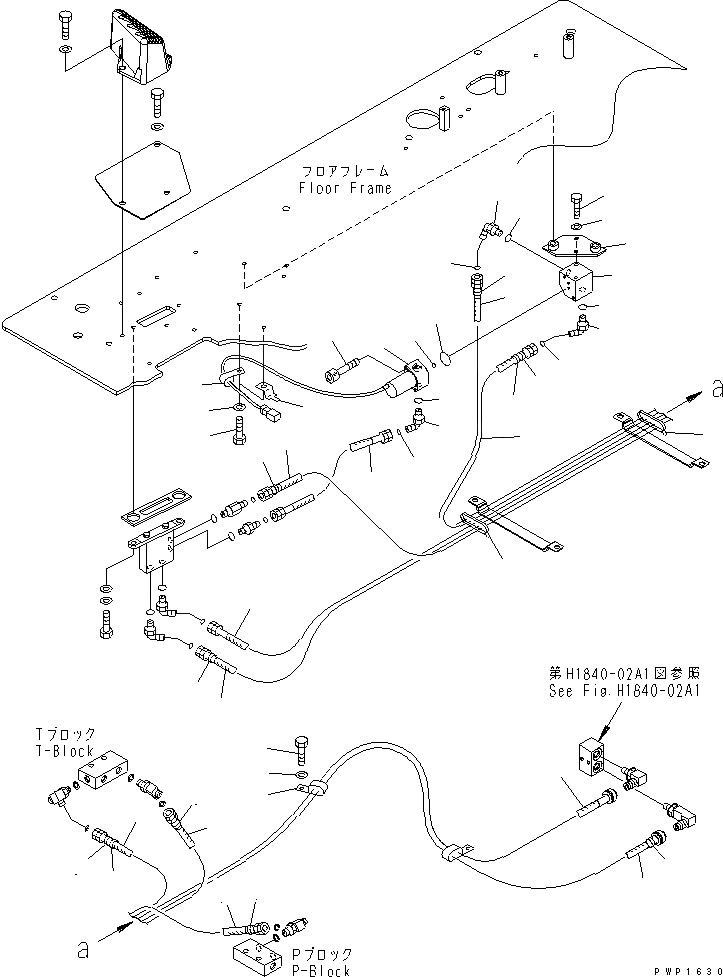

Запчасти Komatsu PC230NHD-7K ОСНОВН. КОНСТРУКЦИЯ (HCU ТРУБЫ)(№K-K7) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

02760-00212

HOSE

2

20Y-62-43490

HOSE¤ 2400MM

3

20Y-62-43510

HOSE¤ 2350MM

4

20Y-62-22790

BAND¤ RED

5

20Y-62-22810

BAND¤ YELLOW

6

20Y-62-22820

BAND¤ BLUE

7

20Y-62-22830

BAND¤ WHITE

8

08034-00519

BAND

9

21W-62-42240

HOSE

10

04435-51210

CLIP

11

01010-81016

BOLT

12

01643-31032

WASHER

13

702-21-07010

VALVE ASS'Y,EPC (SEE FIG.Y1671-01A0)

14

203-60-62220

BOLT

15

700-93-11320

O-RING

16

07000-02011

O-RING

17

20Y-62-43410

BLOCK

18

01010-80820

BOLT

19

01643-30823

WASHER

20

20Y-62-43420

BRACKET

21

11Y-62-12160

ELBOW

22

02896-11008

O-RING

23

07002-11423

O-RING

24

21W-62-43960

ELBOW

25

02896-11008

O-RING

26

07002-11423

O-RING

27

08053-01510

CLIP

28

04434-51010

CLIP

29

01010-81016

BOLT

30

01643-31032

WASHER
