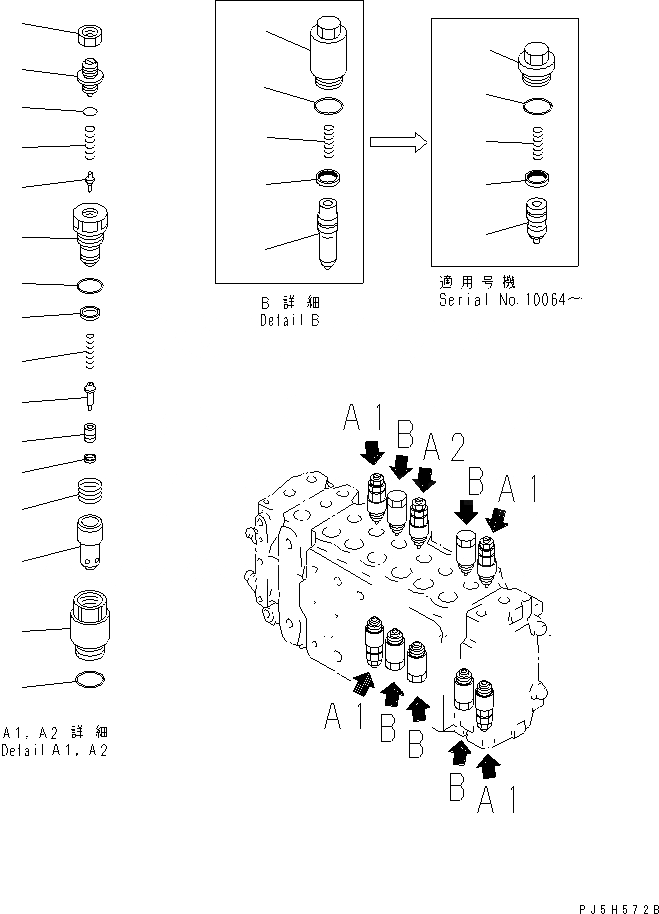

Запчасти Komatsu PC230LC-6 ОСНОВН. КЛАПАН (-АКТУАТОР) (9/)(№-8) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

723-47-10500

VALVE ASS'Y

|1

723-47-10107

VALVE ASS'Y

|1

723-47-10105

VALVE ASS'Y

|1

723-47-10103

VALVE ASS'Y

|1

709-70-74302

VALVE ASS'Y,SUCTION AND SAFETY

|1

709-70-74203

VALVE ASS'Y,SUCTION AND SAFETY

1

SLEEVE

2

SLEEVE

3

POPPET

4

PISTON

5

PLUG

6

POPPET

7

SCREW

8

SPRING

9

SPRING

10

SPRING

11

SEAL

12

SEAL

13

709-25-11390

O-RING

14

O-RING

15

O-RING

16

NUT

|17

709-20-81201

VALVE ASS'Y,SUCTION

17

SLEEVE

18

VALVE

19

SPRING

20

SEAL

21

709-25-11390

O-RING

|22

723-40-85100

VALVE ASS'Y,SUCTION

22

SLEEVE

23

VALVE

24

SPRING

25

SEAL

26

709-25-11390

O-RING
