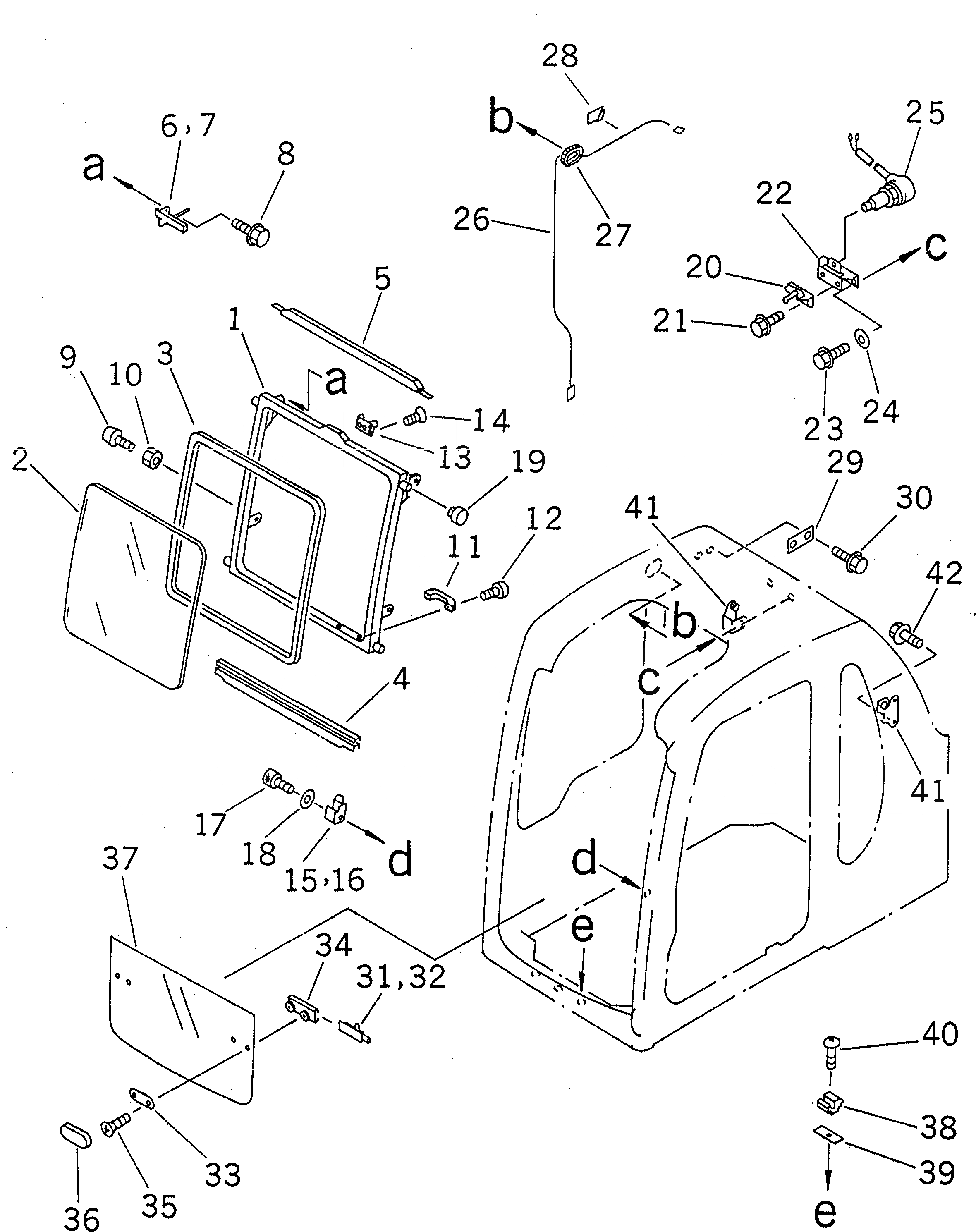

Запчасти Komatsu PC230-6 КАБИНА (ПЕРЕДН. ОКНА)(№-7) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|$6

20Y-54-00324

OPERATOR'S CAB ASS'Y

|$7

20Y-54-00323

OPERATOR'S CAB ASS'Y

|$8

20Y-54-00322

OPERATOR'S CAB ASS'Y

|$9

20Y-54-00321

OPERATOR'S CAB ASS'Y

|$10

20Y-54-00354

OPERATOR'S CAB ASS'Y

|$11

20Y-54-00353

OPERATOR'S CAB ASS'Y

|$12

20Y-54-00352

OPERATOR'S CAB ASS'Y

|$13

20Y-54-00351

OPERATOR'S CAB ASS'Y

|$15

20Y-54-36701

FRONT WINDOW ASS'Y

1

20Y-54-36711

WINDOW

2

20Y-54-38121

GLASS

3

20Y-54-38131

WEATHER STRIP

4

20Y-54-38141

SEAL

5

20Y-54-38152

SEAL

5

20Y-54-38151

SEAL

6

20T-54-75270

LATCH ASS'Y,L.H.

7

20T-54-75280

LATCH ASS'Y,R.H.

8

01435-30816

BOLT

9

20Y-54-14290

STOPPER

10

01580-11008

NUT

11

20Y-54-14590

HANDLE

12

01023-40616

SCREW

13

20Y-54-14310

STRIKER

14

20Y-54-14280

SCREW

15

20Y-54-36833

BLOCK,L.H.

16

20Y-54-36843

BLOCK,R.H.

17

01252-50635

BOLT

18

01641-50608

WASHER

19

20Y-54-39151

ROLLER

20

205-54-63310

LOCK ASS'Y

21

01435-30820

BOLT

22

20Y-54-39363

BRACKET

23

01435-30820

BOLT

24

154-61-16570

WASHER

25

08074-40000

SWITCH

26

20Y-54-39590

WIRING HARNESS

27

20Y-54-36150

GROMMET

28

08051-00801

CLIP

29

20Y-54-14721

LOCK

30

01435-30820

BOLT

|$49

20Y-54-36102

LOWER WINDOW ASS'Y

31

20Y-54-36122

LATCH ASS'Y,R.H.

32

20Y-54-36132

LATCH ASS'Y,L.H.

33

20Y-54-36142

PLATE

34

20Y-54-36191

GROMMET

35

01225-70612

SCREW

36

20Y-54-36211

COVER

37

20Y-54-36112

GLASS

38

20Y-54-36171

SEAT

39

20Y-54-36230

SHIM, 2.0MM

40

01370-00620

SCREW

41

20Y-54-36182

STOPPER

42

01435-30820

BOLT
