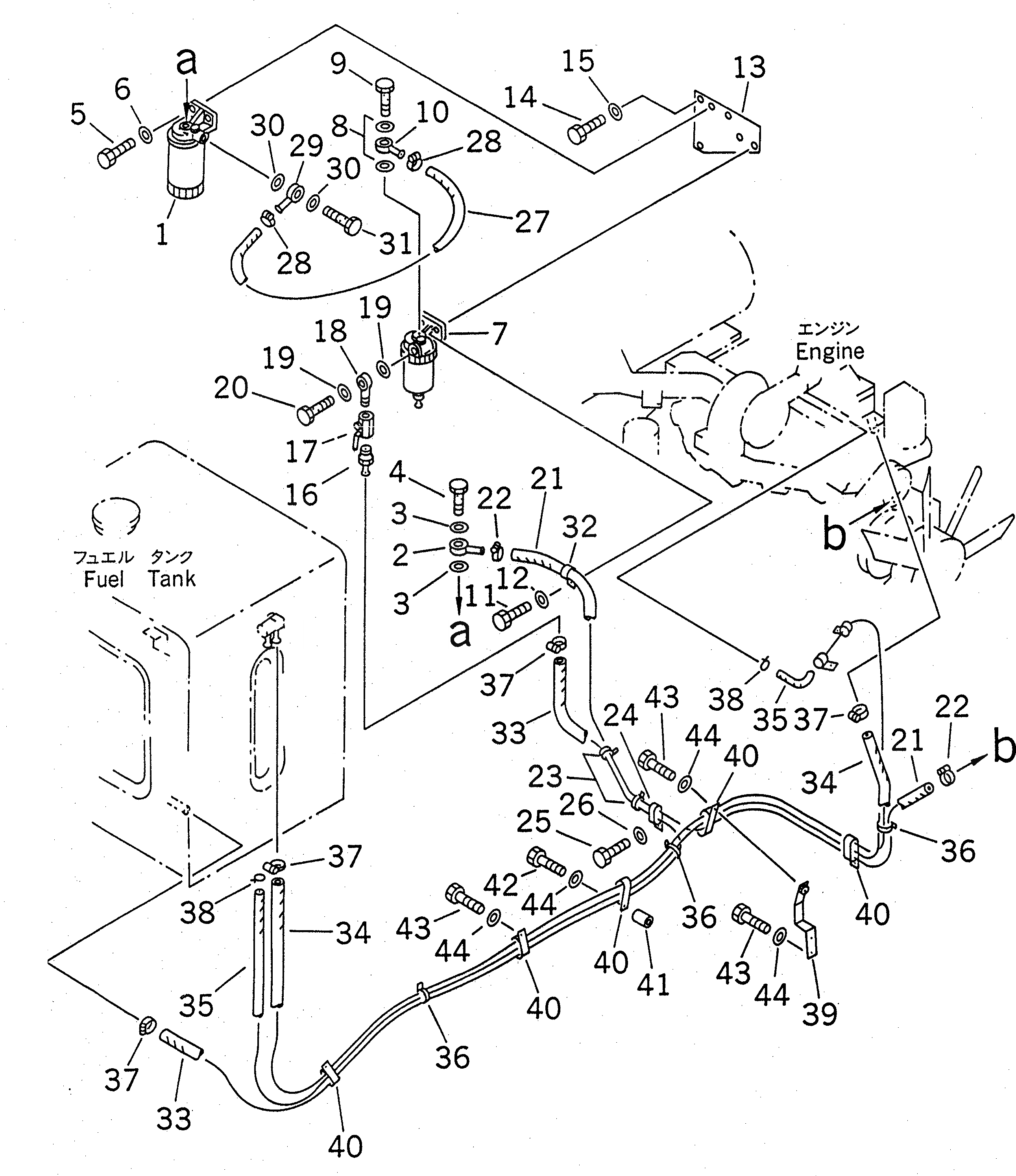

Запчасти Komatsu PC230-6 ТОПЛИВНАЯ ЛИНИЯ (С ТОПЛИВН. ПРЕФИЛЬТРОМ И ВОДООТДЕЛИТЕЛЕМ)(№-7) ТОПЛИВН. БАК. AND КОМПОНЕНТЫ

1

600-311-9101

FUEL FILTER ASS'Y

1

600-311-9100

FUEL FILTER ASS'Y

2

205-04-62150

JOINT

3

07005-01412

SEAL, WASHER

4

07206-31014

BOLT

5

01010-51030

BOLT

6

01643-31032

WASHER

7

600-311-9731

WATER SEPARATOR A.

8

07005-01412

SEAL, WASHER

9

07206-31014

BOLT

10

205-04-62150

JOINT

11

01010-51030

BOLT

12

01643-31032

WASHER

13

20Y-04-21211

BRACKET

14

01010-51225

BOLT

15

01643-31232

WASHER

16

154-04-11540

NIPPLE

17

07700-40240

VALVE

18

205-04-62140

JOINT

19

07005-01412

SEAL, WASHER

20

07206-31014

BOLT

21

07288-11022

HOSE

22

07281-00197

CLAMP

23

08034-00519

BAND

24

141-06-11220

CLIP

25

01010-51225

BOLT

26

01643-31232

WASHER

27

07288-11003

HOSE

28

07281-00197

CLAMP

29

205-04-62150

JOINT

30

07005-01412

SEAL, WASHER

31

07206-31014

BOLT

32

08036-01814

CLIP

33

07288-01029

HOSE

34

07288-01032

HOSE

35

07270-50437

TUBE

36

08034-00519

BAND

37

07281-00197

CLAMP

38

07285-00080

CLIP

39

20Y-04-21151

BRACKET

40

141-06-11220

CLIP

41

142-03-11160

SPACER

42

01010-51260

BOLT

43

01010-51225

BOLT

44

01643-31232

WASHER
