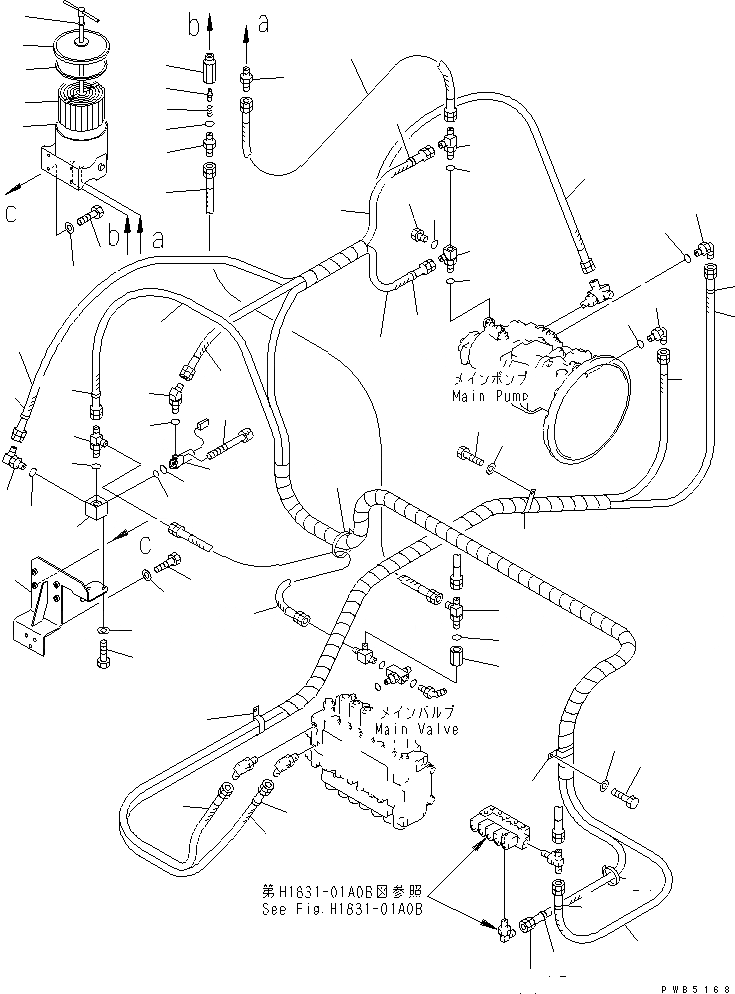

Запчасти Komatsu PC230-6 ЛИНИЯ LS(С BY-PASS ФИЛЬТР.)(№-7) ГИДРАВЛИКА

1

07096-00215

HOSE

2

20Y-62-22790

BAND, RED

3

07096-00217

HOSE

4

04435-51812

CLIP

5

01010-81225

BOLT

6

01643-31232

WASHER

7

07235-10210

ELBOW

8

07002-11423

O-RING

9

20Y-62-23461

ELBOW

10

07002-11423

O-RING

11

20Y-62-21970

HOSE, 1600MM

12

20Y-62-22820

BAND, BLUE

13

203-62-52330

HOSE, 600MM

14

20Y-62-22810

BAND, YELLOW

15

20Y-62-22990

HOSE, 2150MM

16

20Y-62-22790

BAND, RED

17

203-62-52280

HOSE, 900MM

18

20Y-62-22341

TEE

19

07002-12434

O-RING

20

208-62-17720

TEE

21

07002-12034

O-RING

22

07040-11007

PLUG

23

07002-11023

O-RING

24

04435-51812

CLIP

25

01010-81225

BOLT

26

01643-31232

WASHER

27

08034-00536

BAND

28

702-21-07010

VALVE ASS'Y,EPC

29

203-60-62220

BOLT

30

700-93-11320

O-RING

31

07000-02011

O-RING

32

209-62-57210

TEE

33

07002-02034

O-RING

34

20Y-62-22110

BLOCK

35

203-62-61450

HOSE, 330MM

36

20T-62-71640

ELBOW

37

07002-02034

O-RING

38

08034-00519

BAND

39

01010-51025

BOLT

40

01643-31032

WASHER

41

208-62-67410

FILTER ASS'Y

42

208-62-67430

ELEMENT

43

208-62-67440

SEAL,WASHER

44

208-62-67450

PACKING

45

01010-81225

BOLT

46

01643-31232

WASHER

47

20Y-62-25760

BRACKET

48

01010-81230

BOLT

49

01643-31232

WASHER

50

07102-20310

HOSE

51

566-35-14340

NIPPLE

|$59

20Y-60-22900

VALVE ASS'Y

52

BODY

53

20Y-60-22920

POPPET

54

701-20-61230

SPRING

55

07002-11423

O-RING

56

20Y-60-22230

NIPPLE

57

07102-20306

HOSE

58

20Y-62-21880

JOINT

59

209-62-57210

TEE

60

07002-12034

O-RING
