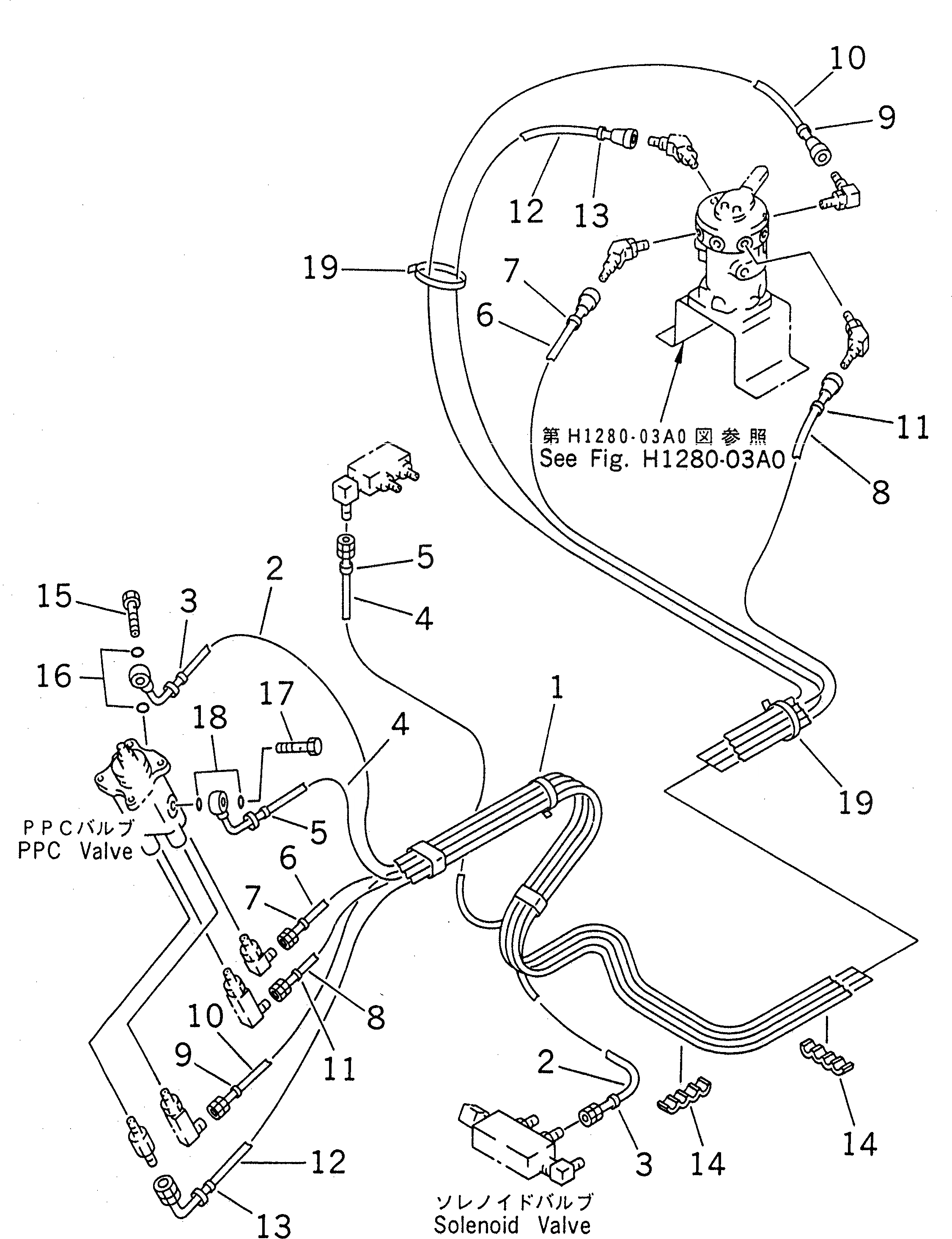

Запчасти Komatsu PC230-6 MULTI PATTERN КЛАПАН (WAY) (ПРАВ. КЛАПАН PPCTO MULTI КЛАПАН)(№8-8) ГИДРАВЛИКА

1

08034-00536

BAND

2

20Y-62-23311

HOSE, 1520MM

3

20Y-62-22790

BAND, RED

4

20Y-62-23321

HOSE, 1000MM

5

20Y-62-22820

BAND, BLUE

6

20Y-62-23771

HOSE

7

20Y-62-22850

BAND, GREEN

8

20Y-62-23781

HOSE

9

20Y-62-22840

BAND, BLACK

10

20Y-62-23791

HOSE

11

20Y-62-22830

BAND, WHITE

12

20Y-62-23811

HOSE

13

20Y-62-22860

BAND, BROWN

14

20Y-62-22170

CLAMP

15

20Y-62-18910

PLUG

16

07000-02018

O-RING

17

20Y-62-18890

BOLT, JOINT

18

07000-02015

O-RING

19

08034-00519

BAND
