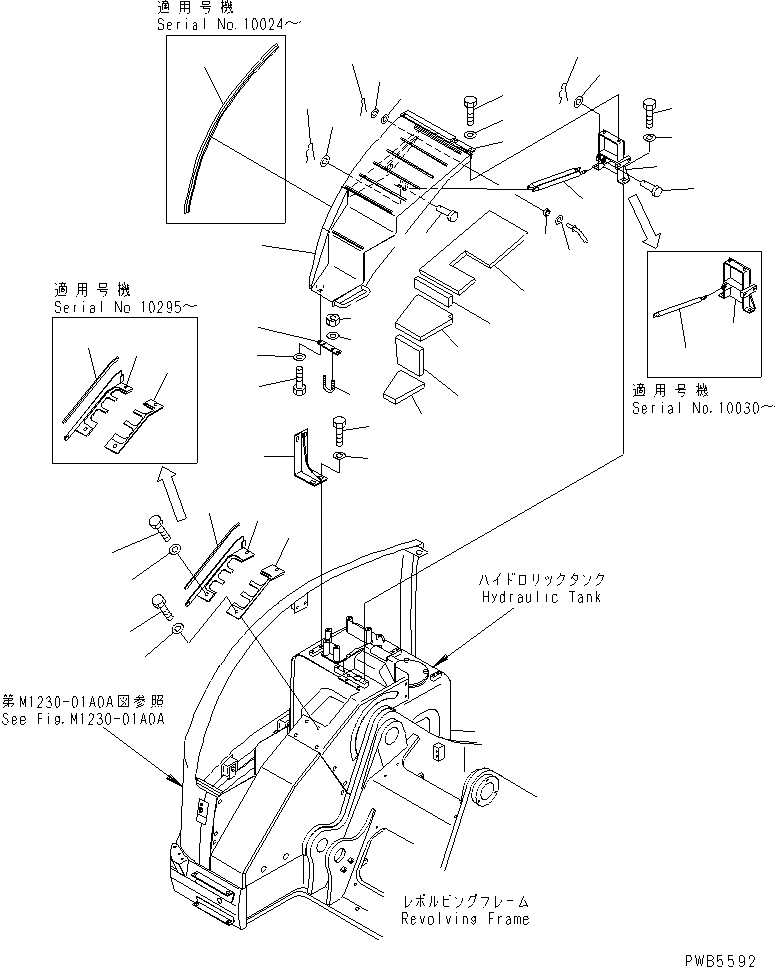

Запчасти Komatsu PC228UU-1-TN ПЕРЕДН. КРЫШКА(COVER) (/)(№-7) ЧАСТИ КОРПУСА

|1

22U-54-12372

COVER

1

COVER

2

20Y-54-27123

HINGE

3

22U-54-12712

SHEET

4

22U-54-12721

SHEET

5

22U-54-12730

SHEET

6

22U-54-12740

SHEET

7

22U-54-12751

SHEET

8

22U-54-11322

PLATE

9

20Y-54-27172

U-BOLT

9A

22U-54-11192

SEAL

10

01010-81225

BOLT

11

01580-11210

NUT

12

01643-31232

WASHER

13

01010-81230

BOLT

14

01643-31232

WASHER

15

22U-54-11293

BRACKET

16

21Y-54-11180

DAMPER

|16

21Y-54-11180

DAMPER

17

01641-20812

WASHER

|17

01641-20812

WASHER

18

04052-10833

PIN

|18

04052-10833

PIN

19

04205-10830

PIN

|19

04205-10830

PIN

20

01010-81230

BOLT

21

01643-31232

WASHER

22

04205-10830

PIN

|22

04205-10830

PIN

23

01641-20812

WASHER

|23

01641-20812

WASHER

24

04052-10833

PIN

|24

04052-10833

PIN

25

20T-43-71271

COLLAR

26

01643-31232

WASHER

27

01643-31032

WASHER

28

04050-13020

PIN

29

22U-54-11352

BRACKET

30

01010-81225

BOLT

31

175-54-34170

WASHER

|32

22U-54-12433

COVER

|32

22U-54-12432

COVER

32

COVER

|32

COVER

33

22U-54-11942

SEAL

34

01010-81225

BOLT

35

01643-31232

WASHER

36

22U-54-11233

COVER

|36

22U-54-11232

COVER

37

01010-81225

BOLT

38

01643-31232

WASHER
