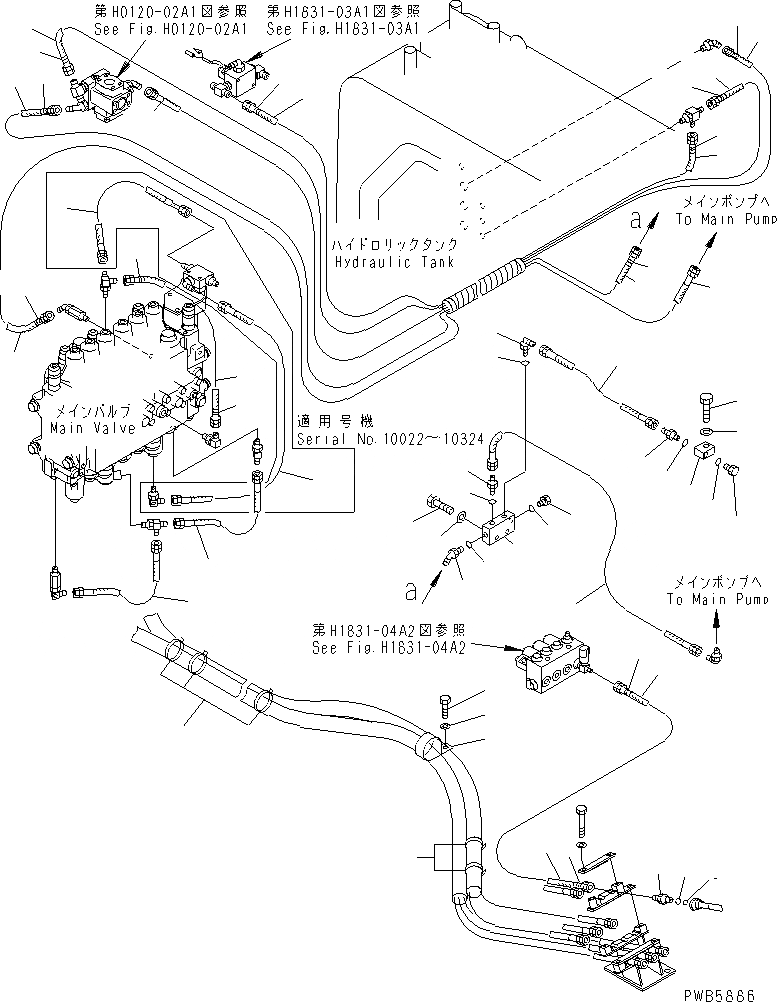

Запчасти Komatsu PC228UU-1 ОСНОВН. ЛИНИЯ PPC (ШЛАНГИ) (ДЛЯ MONO СТРЕЛА)(№-7) ГИДРАВЛИКА

1

08034-00536

BAND

2

207-62-33690

CLIP

3

01010-81225

BOLT

4

01643-31232

WASHER

5

203-62-52310

HOSE, 700MM

6

20Y-62-22850

BAND, GREEN

7

22T-61-11680

HOSE

8

203-62-63420

JOINT

9

201-60-11390

O-RING

10

20Y-62-19560

O-RING

11

08034-00536

BAND

12

07096-00224

HOSE

13

203-62-52270

HOSE, 1400MM

14

203-62-52290

HOSE, 1100MM

15

203-62-52250

HOSE, 1200MM

16

209-62-77620

HOSE

17

20Y-62-22790

BAND, RED

18

203-62-57910

MARK, 1

19

203-62-57970

MARK, 7

20

203-62-57980

MARK, 8

21

203-62-52390

HOSE

22

08034-00536

BAND

23

203-62-52320

HOSE, 300MM

24

20Y-62-23451

HOSE

25

20Y-62-15831

BLOCK

26

01010-81045

BOLT

27

01643-31032

WASHER

28

22X-61-18550

ELBOW

29

07002-11423

O-RING

30

07230-20210

UNION

31

07235-10210

ELBOW

32

07002-11423

O-RING

33

07040-11409

PLUG

34

07002-11423

O-RING

35

201-62-66620

HOSE

36

22U-62-13830

JOINT

37

01010-81240

BOLT

38

01643-31232

WASHER

39

07230-20210

UNION

40

07040-11409

PLUG

41

07002-11423

O-RING

42

203-62-52530

HOSE, 800MM

43

203-62-52310

HOSE, 700MM
