ТАБЛИЧКИ (АНГЛ.)(№7-7)

Запчасти Komatsu PC228UU-1 ТАБЛИЧКИ (АНГЛ.)(№7-7) МАРКИРОВКА

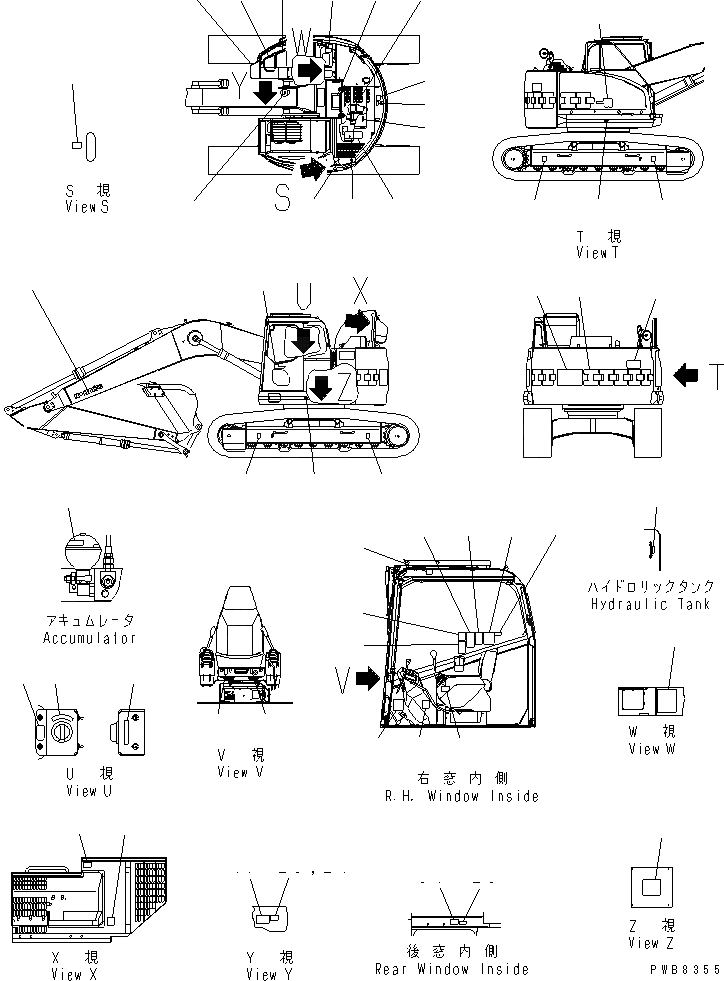

Схема запчастей Komatsu PC228UU-1 - ТАБЛИЧКИ (АНГЛ.)(№7-7) МАРКИРОВКА
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
45
45
45
46
46
47
48
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

09685-00001

PLATE, OPERATING

2

205-00-73360

PLATE, OIL LEVEL

3

09690-M0063

PLATE, MARK

4

22U-00-11120

PLATE,MARK

5

22U-00-11132

MARK PLATE

6

22U-00-11142

PLATE,MARK

7

22U-00-11510

PLATE,SAFETY

8

14X-98-11531

PLATE, SAFETY

9

09652-30121

PLATE, CAUTION

10

203-00-61260

PLATE, CAUTION

11

22U-00-11410

PLATE, MARK

12

20Y-00-21280

PLATE

13

22U-00-11160

PLATE

14

203-00-61310

PLATE, CAUTION

15

14X-98-11580

PLATE, SAFETY

16

203-00-61270

PLATE, CAUTION

17

09822-03000

PLATE, SAFETY

18

20Y-00-21370

PLATE

19

22U-00-11420

PLATE

20

203-00-61291

PLATE, CAUTION

21

14X-98-11551

PLATE, SAFETY

22

14X-98-11390

PLATE, CAUTION

23

09601-00835

PLATE, NAME

24

04418-13060

SCREW

25

09963-03000

TAG

26

21W-98-21521

PLATE, OPERATING

27

20U-98-21610

PLATE, MARK,MARK

28

22U-00-11450

PLATE OPERATING

29

22U-00-11460

PLATE OPERATING

30

20U-98-21910

PLATE, CAUTION

31

22U-00-11470

PLATE,CAUTION

32

22U-00-11480

PLATE OPERATING

33

362-54-38150

PLATE, OPERATING

34

203-00-61280

PLATE, CAUTION

35

21Y-98-17480

PLATE

36

21Y-98-11160

PLATE, INSTRUCTION

37

22U-00-11490

PLATE

38

203-00-51170

SEAT

39

154-54-23260

SEAT

40

22U-00-11210

SEAT

41

22U-00-11220

SEAT

42

22U-00-11230

SEAT

43

22U-00-11320

SEAT

44

09690-C0630

PLATE, MARK

45

09960-01001

PLATE, MARK

46

09960-01012

PLATE, MARK

47

22U-00-11430

PLATE

48

09637-30661

PLATE, INSTRUCTION

Выбрано товаров: 48
