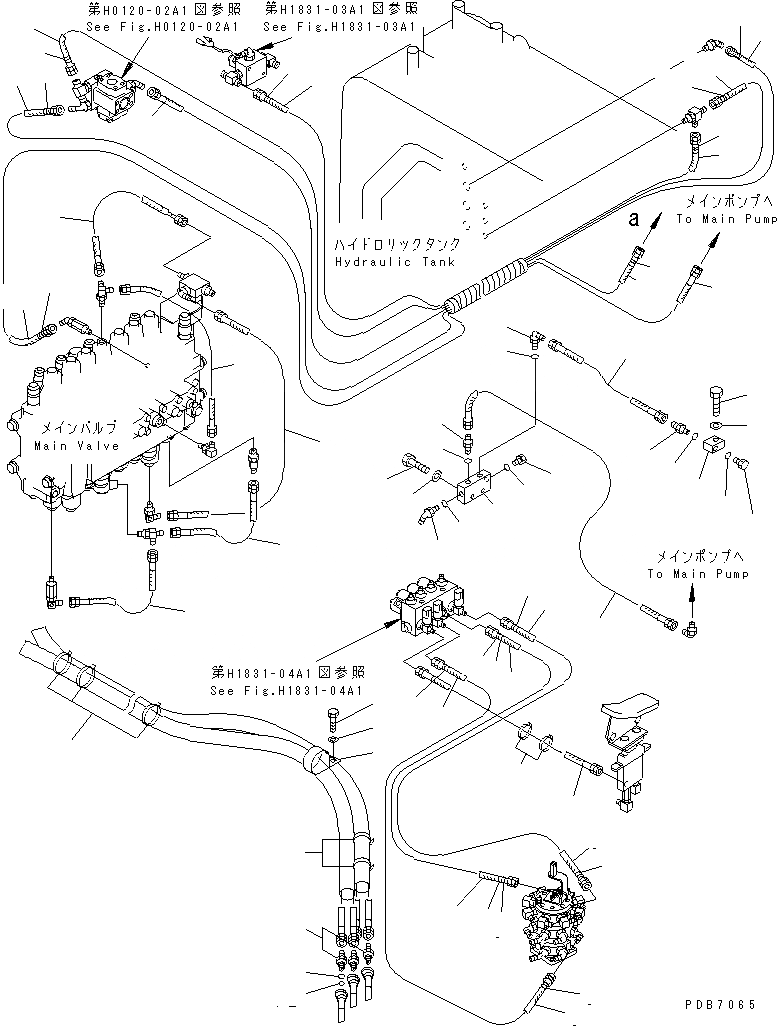

Запчасти Komatsu PC228UU-1-MO ОСНОВН. ЛИНИЯ PPC (ШЛАНГИ) (ДЛЯ OFFSET СТРЕЛА) (WAY)(№-7) ГИДРАВЛИКА

1

08034-00536

BAND

2

207-62-33690

CLIP

3

01010-81225

BOLT

4

01643-31232

WASHER

5

203-62-52310

HOSE¤ 700MM

6

20Y-62-22820

BAND¤ BLUE

7

20Y-62-22840

BAND¤ BLACK

8

20Y-62-22850

BAND¤ GREEN

9

20Y-62-22860

BAND¤ BROWN

10

22T-61-11680

HOSE

11

203-62-63420

JOINT

12

201-60-11390

O-RING

13

20Y-62-19560

O-RING

14

08034-00536

BAND

15

07096-00224

HOSE

16

203-62-52270

HOSE¤ 1400MM

17

203-62-52290

HOSE¤ 1100MM

18

203-62-52250

HOSE¤ 1200MM

19

209-62-77620

HOSE

20

20Y-62-22790

BAND¤ RED

21

203-62-57910

MARK¤ 1

22

203-62-57970

MARK¤ 7

23

203-62-57980

MARK¤ 8

24

203-62-52390

HOSE

25

08034-00536

BAND

26

203-62-52320

HOSE¤ 300MM

27

20Y-62-23451

HOSE

28

20Y-62-15831

BLOCK

29

01010-81045

BOLT

30

01643-31032

WASHER

31

22X-61-18550

ELBOW

32

07002-11423

O-RING

33

07230-20210

UNION

34

07235-10210

ELBOW

35

07002-11423

O-RING

36

07040-11409

PLUG

37

07002-11423

O-RING

38

201-62-66620

HOSE

39

22U-62-13830

JOINT

40

01010-81240

BOLT

41

01643-31232

WASHER

42

07230-20210

UNION

43

07040-11409

PLUG

44

07002-11423

O-RING

45

203-62-52530

HOSE¤ 800MM

46

203-62-52390

HOSE

47

203-62-52310

HOSE¤ 700MM
