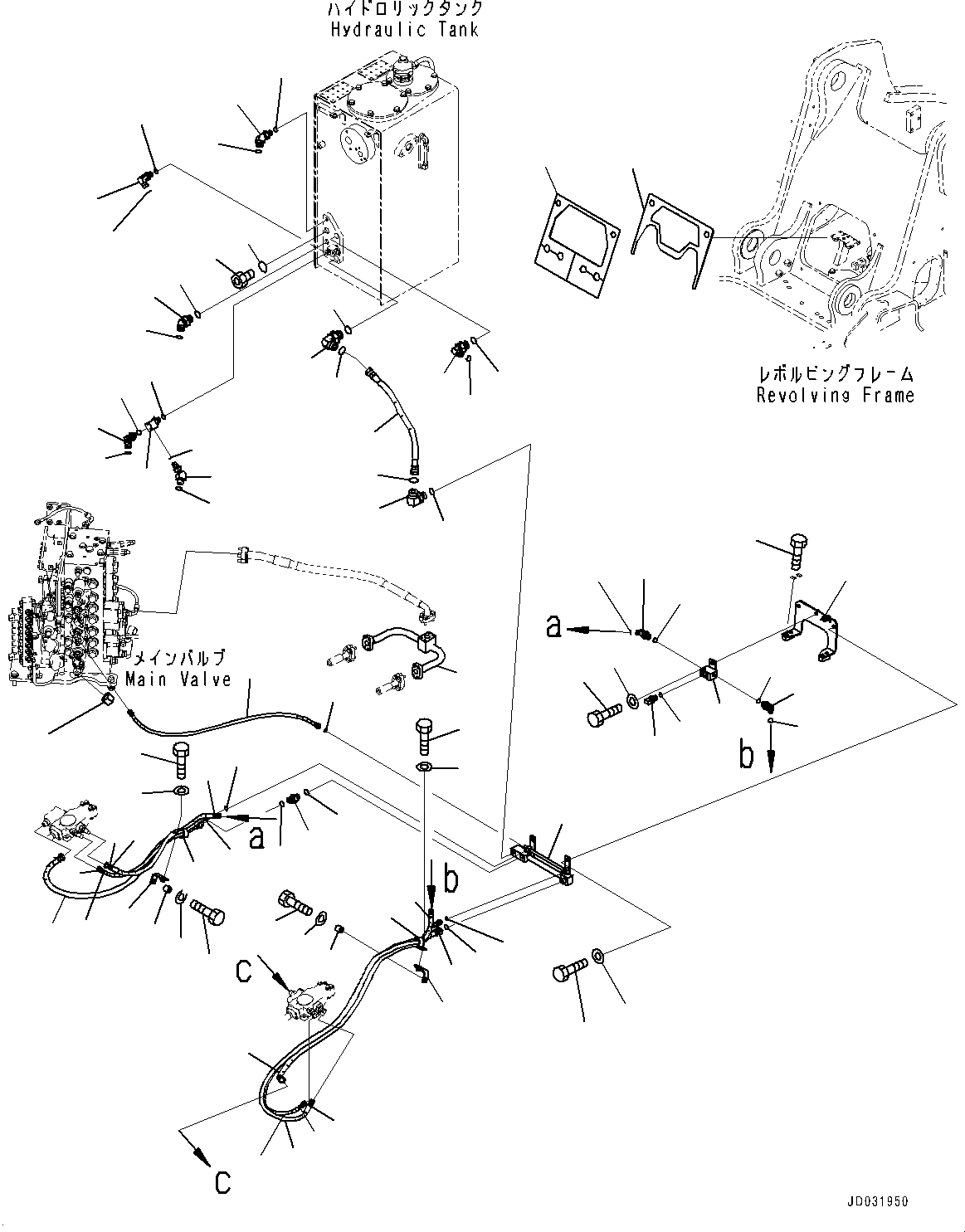

Запчасти Komatsu PC228USLC-8 ANTI-DROP КЛАПАН ТРУБЫ, (№-) ANTI-DROP КЛАПАН ТРУБЫ, СТРЕЛА ANTI-DROP КЛАПАН, С СИГНАЛИЗ. ПЕРЕГРУЗКИ, ЕС ARRANGEMENT
№
Артикул
Название
Примечание
Количество
1
02762-00410
Hose
2
02756-00206
Hose, Face Seal Type
3
02760-00206
Hose, Face Seal Type
4
20Y-62-22790
Band, Red
5
20Y-62-22850
Band, Green
6
02762-004A5
Hose, Face Seal Type
7
02756-00211
Hose, Face Seal Type
8
02760-00210
Hose, Face Seal Type
9
20Y-62-22790
Band, Red
10
20Y-62-22850
Band, Green
11
207-62-51270
Bracket
12
07372-21250
Bolt
13
01643-51232
Washer
14
195-33-11220
Spacer
15
04434-53212
Clip
16
01010-81230
Bolt
17
01643-31232
Washer
18
8260-62-1530
Hose
19
22U-62-35440
Hose
20
22U-62-35420
Tube
21
02896-11008
O-ring
22
02896-11012
O-ring
23
02781-00422
Union
24
07002-12034
O-ring
25
02896-11012
O-ring
26
02782-10516
Elbow
27
07002-12034
O-ring
28
02896-11015
O-ring
29
01010-81230
Bolt
30
01643-31232
Washer
31
22U-62-27280
Block
32
01010-81230
Bolt
33
01643-31232
Washer
34
7861-93-1812
Sensor, Pressure
34
7861-93-1811
Sensor, Pressure
35
07002-61823
O-ring
35
07002-11823
O-ring
36
02783-10210
Elbow
37
02896-11008
O-ring
38
07002-11423
O-ring
39
22U-62-35860
Bracket
40
01010-81255
Bolt
41
02783-10315
Elbow
42
07002-12034
O-ring
43
02896-11009
O-ring
44
11Y-62-12510
Elbow
45
07002-11423
O-ring
46
02896-11009
O-ring
47
07040-12412
Plug
48
07002-12434
O-ring
49
02782-10315
Elbow
50
07002-12034
O-ring
51
02896-11009
O-ring
52
207-62-53820
Tee
53
07002-12034
O-ring
54
11Y-62-12510
Elbow
55
07002-11423
O-ring
56
02896-11009
O-ring
57
02782-10311
Elbow
58
07002-11423
O-ring
59
02896-11009
O-ring
60
02782-10311
Elbow
61
07002-11423
O-ring
62
02896-11009
O-ring
63
02782-10522
Elbow
64
07002-12434
O-ring
65
02896-11015
O-ring
66
02789-00315
Plug
66
22U-54-27190
Cover
67
Cover
68
22U-54-27180
Sheet
69
22U-62-34641
Tube
Выбрано товаров: 72
