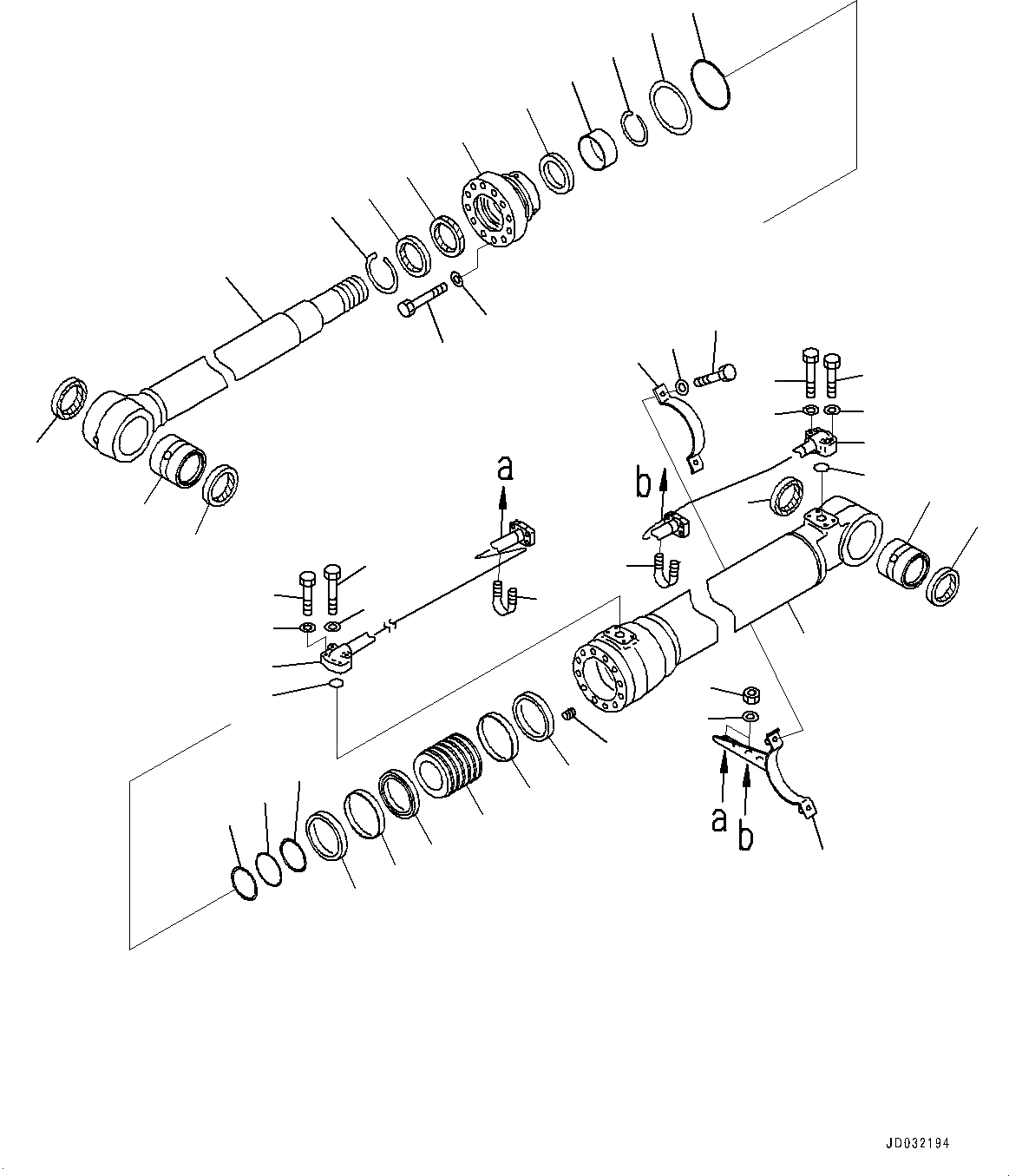

Запчасти Komatsu PC228USLC-8 ЦИЛИНДР СТРЕЛЫ, ЛЕВ. (№-) ЦИЛИНДР СТРЕЛЫ, ДЛЯ СЕВ. АМЕРИКИ

|$0

707-01-0CE50

Cylinder Assembly

1

721-13-13080

Cylinder

2

707-58-90F60

Rod, Piston

3

707-76-80420

Bushing

4

07145-00070

Seal, Dust, (Kit : K05)

5

707-76-80431

Bushing

6

07145-00080

Seal, Dust, (Kit : K05)

7

707-27-13650

Cylinder Head

8

07179-13104

Ring, Snap

9

707-56-90740

Seal, Dust, (Kit : K05)

10

707-52-90681

Bushing

11

707-51-90030

Packing, Rod, (Kit : K05)

12

707-51-90650

Ring, Buffer, (Kit : K05)

13

07000-15120

O-ring, (Kit : K05)

14

707-35-91320

Ring, Back-up, (Kit : K05)

15

01010-81670

Bolt

16

01643-51645

Washer

17

707-75-90110

Ring, Snap

18

707-36-13780

Piston

19

707-44-13150

Ring, Piston, (Kit : K05)

20

707-39-13150

Ring, Wear, (Kit : K05)

21

707-44-13911

Ring

22

07000-15080

O-ring, (Kit : K05)

23

707-35-90940

Ring, Back-up, (Kit : K05)

24

01310-01216

Screw

25

707-86-68930

Tube,L.H.

26

707-86-68950

Tube,L.H.

27

707-88-28050

Bracket,L.H.

28

07372-21060

Bolt

29

01643-51032

Washer

30

07372-21045

Bolt

31

01643-51032

Washer

32

707-88-21331

Band

33

07000-13030

O-ring, (Kit : K05)

34

07372-21035

Bolt

35

01643-51032

Washer

36

07283-32738

Clip, Pipe

37

01597-01009

Nut

38

01643-31032

Washer
