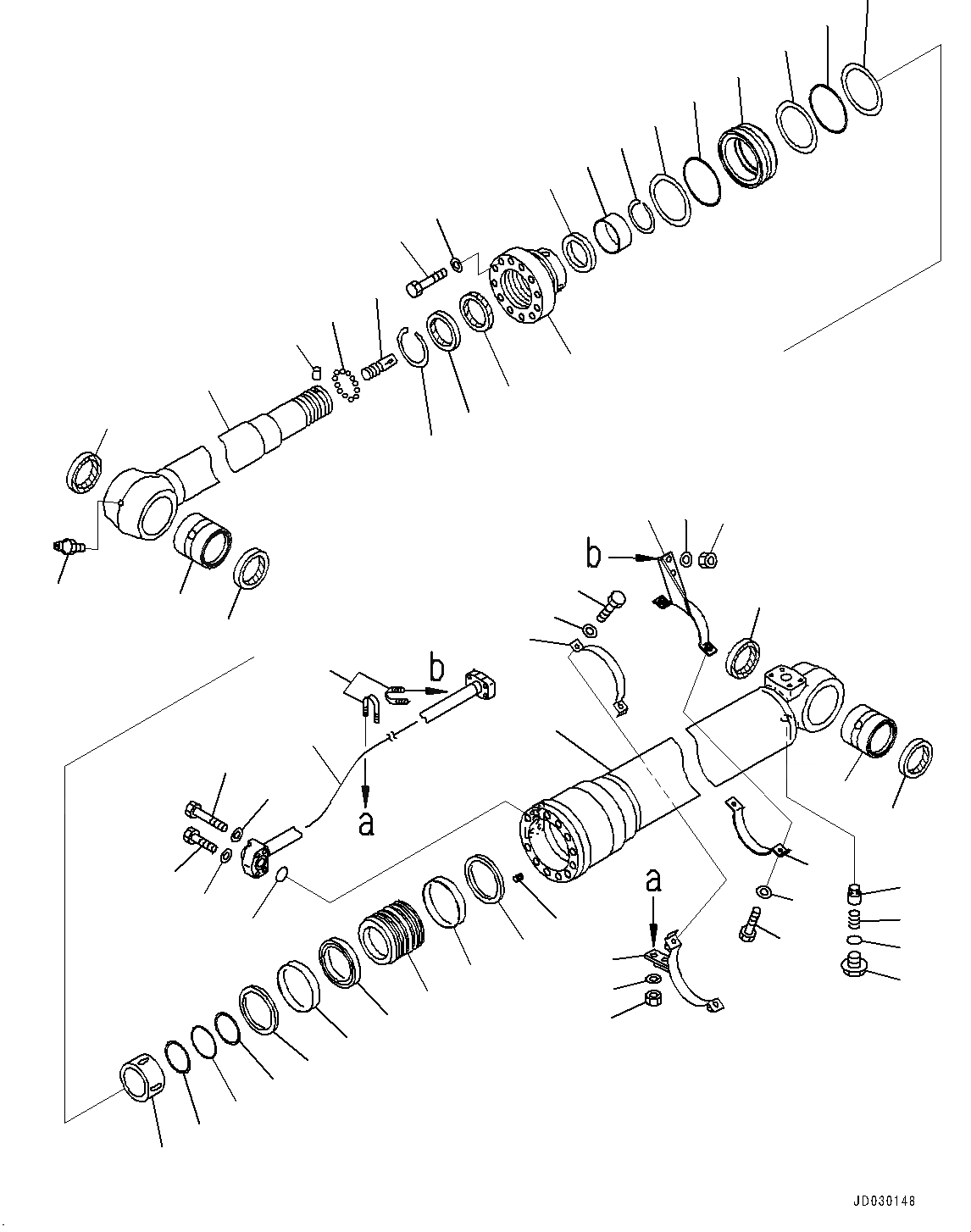

Запчасти Komatsu PC228USLC-8 ЦИЛИНДР РУКОЯТИ, С ANTI-DROP КЛАПАН, ДЛЯ 2-СЕКЦИОНН. СТРЕЛЫ, ДЛЯ СТРАН ЕС (№8-) ЦИЛИНДР РУКОЯТИ, С ANTI-DROP КЛАПАН, ДЛЯ 2-СЕКЦИОНН. СТРЕЛЫ, ДЛЯ СТРАН ЕС (№8-)

|$0

707-01-0YJ71

Cylinder Assembly

|$1

707-01-0CJ51

Cylinder Assembly

|$2

707-01-0CE31

Cylinder Assembly

1

721-13-13070

Cylinder

2

707-58-95270

Rod, Piston

3

707-76-80431

Bushing

4

07145-00080

Seal, Dust, (Kit)

5

707-76-80431

Bushing

6

07145-00080

Seal, Dust, (Kit)

7

07020-00000

Fitting, Grease

8

707-71-34980

Collar

9

707-35-31260

Ring, Back-Up, (Kit)

10

07000-15125

O-Ring, (Kit)

11

707-71-71010

Plunger

12

707-01-80270

Plunger

13

04260-00635

Ball, Steel

14

707-71-91270

Cap

15

707-27-13850

Cylinder, Head

16

707-56-95740

Seal, (Kit)

17

07179-13109

Ring, Snap

18

707-52-90721

Bushing

19

707-51-95030

Packing, Rod, (Kit)

20

707-51-95650

Ring, Buffer, (Kit)

21

707-35-31260

Ring, Back-Up, (Kit)

22

07000-15125

O-Ring, (Kit)

23

01010-81875

Bolt

24

707-41-11840

Washer

25

707-75-95030

Ring, Snap

26

707-36-13771

Piston

27

707-44-13250

Ring, Piston

28

707-39-13530

Ring, Wear, (Kit)

29

707-44-13920

Ring

30

01310-01216

Screw

31

07000-15085

O-Ring, (Kit)

32

707-35-30850

Ring, Back-Up, (Kit)

33

707-83-13010

Valve

34

07750-01628

Spring

35

707-88-14070

Plug

36

07002-12034

O-Ring, (Kit)

|$39

707-99-50780

Service Kit
