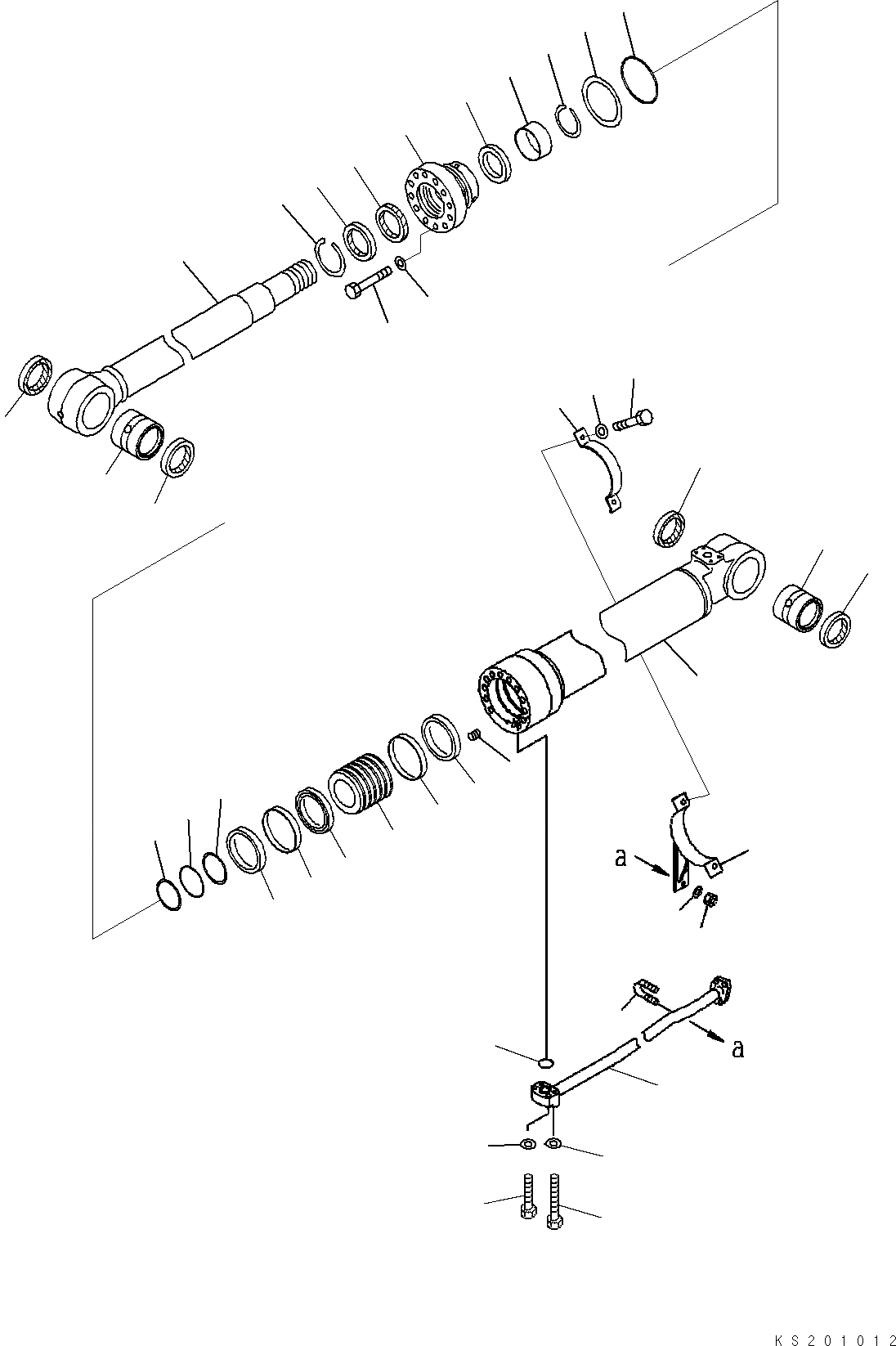

Запчасти Komatsu PC228USLC-8 ЦИЛИНДР СТРЕЛЫ, С ANTI-DROP КЛАПАН, RHS, ДЛЯ 2-СЕКЦИОНН. СТРЕЛЫ, ДЛЯ СТРАН ЕС (№8-) ЦИЛИНДР СТРЕЛЫ, С ANTI-DROP КЛАПАН, ДЛЯ 2-СЕКЦИОНН. СТРЕЛЫ, ДЛЯ СТРАН ЕС (№8-)

|$0

707-01-XYJ20

Cylinder Group

|$1

707-01-XCJ30

Cylinder Group

|$2

707-01-0CJ20

Cylinder Assembly

1

707-13-12700

Cylinder

2

707-58-85340

Rod, Piston

3

707-76-70651

Bushing

4

07145-00070

Seal, Dust, (Kit)

5

707-76-80431

Bushing

6

07145-00080

Seal, Dust, (Kit)

7

707-27-12650

Head, Cylinder

8

707-56-85740

Seal, Dust, (Kit)

9

07179-13099

Ring, Snap

10

707-51-85030

Packing, Rod, (Kit)

11

707-51-85650

Ring, Buffer, (Kit)

12

707-52-90611

Bushing

13

707-35-91220

Ring, Back-Up, (Kit)

14

07000-15110

O-Ring, (Kit)

15

01010-81670

Bolt

16

01643-51645

Washer

17

707-75-85110

Ring, Snap

18

707-36-12851

Piston

19

707-44-12150

Ring, Piston, (Kit)

20

707-39-12140

Ring, Wear, (Kit)

21

707-44-12911

Ring

22

07000-15075

O-Ring, (Kit)

23

707-35-90930

Ring, Back-Up, (Kit)

24

01310-01216

Screw

25

707-86-68980

Tube, RHS

26

707-88-25360

Bracket, RHS

27

07372-21060

Bolt

28

01643-51032

Washer

29

07372-21045

Bolt

30

01643-51032

Washer

31

707-88-21830

Band

32

07000-13030

O-Ring, (Kit)

33

07372-21035

Bolt

34

01643-51032

Washer

35

07283-32738

Clip, Pipe

36

01597-01009

Nut

37

01643-31032

Washer

|$40

707-99-46470

Service Kit
