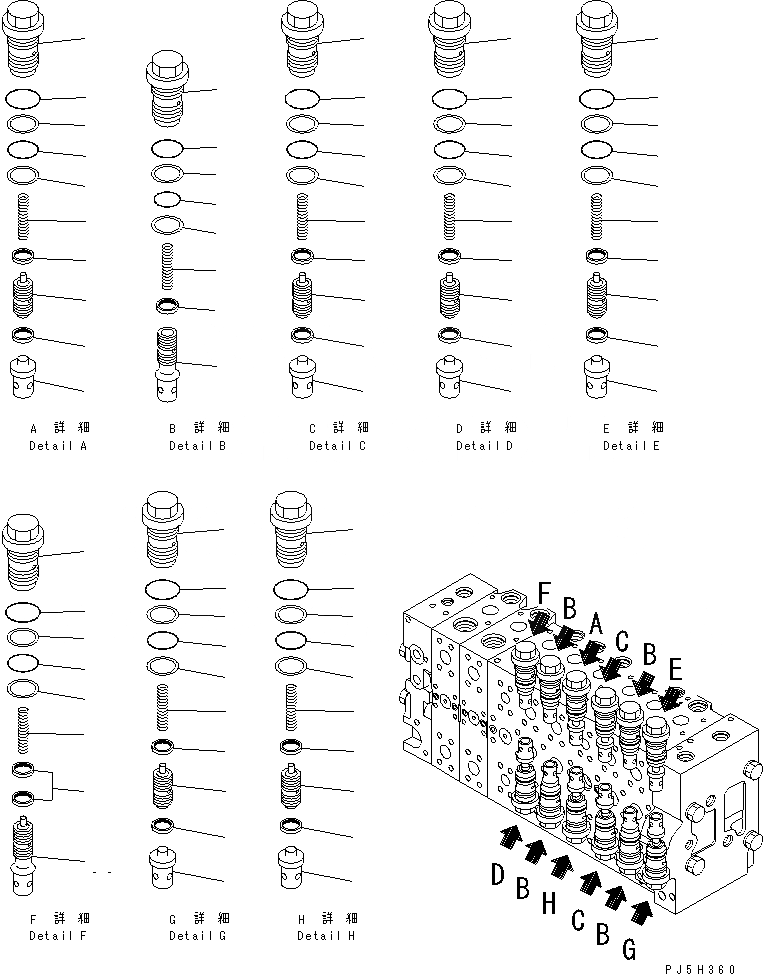

Запчасти Komatsu PC228USLC-3S ОСНОВН. КЛАПАН (-АКТУАТОР) (/) (СПЕЦ-Я ДЛЯ РАЗРУШ. ЗДАНИЙ¤ ЕС. СПЕЦ-Я.)(№-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|$4

723-48-20103

VALVE ASS'Y

|$5

723-48-20102

VALVE ASS'Y

|$6

723-48-20101

VALVE ASS'Y

|$7

723-48-20100

VALVE ASS'Y

|$9

BODY SUB ASS'Y

|$10

BODY SUB ASS'Y

|$11

BODY SUB ASS'Y

|$12

BODY SUB ASS'Y

1

723-46-41110

VALVE

2

723-46-41190

VALVE

2

723-46-41120

VALVE

|$16

723-46-40100

VALVE ASS'Y

3

SLEEVE

4

PISTON SUB ASS'Y

5

SPRING

6

SEAL

7

700-93-11320

O-RING

8

723-46-41950

RING

9

07002-13634

O-RING

|$24

723-46-42700

VALVE ASS'Y

10

SLEEVE

11

VALVE

12

SPRING

13

SEAL

14

700-93-11320

O-RING

15

723-46-41950

RING

16

07002-13634

O-RING

|$32

723-46-41100

VALVE ASS'Y

17

SLEEVE

18

PISTON SUB ASS'Y

19

SPRING

20

SEAL

21

700-93-11320

O-RING

22

723-46-41950

RING

23

07002-13634

O-RING

|$40

723-46-45100

VALVE ASS'Y

24

SLEEVE

25

PISTON SUB ASS'Y

26

SPRING

27

SEAL

28

700-93-11320

O-RING

29

723-46-41950

RING

30

07002-13634

O-RING

|$48

723-46-46300

VALVE ASS'Y

31

SLEEVE

32

PISTON SUB ASS'Y

33

SPRING

34

SEAL

35

700-93-11320

O-RING

36

723-46-41950

RING

37

07002-13634

O-RING

|$56

723-46-43400

VALVE ASS'Y

38

SLEEVE

39

VALVE SUB ASS'Y

40

SPRING

41

SEAL

42

700-93-11320

O-RING

43

723-46-41950

RING

44

07002-13634

O-RING

|$64

723-46-43100

VALVE ASS'Y

45

SLEEVE

46

PISTON SUB ASS'Y

47

SPRING

48

SEAL

49

700-93-11320

O-RING

50

723-46-41950

RING

51

07002-13634

O-RING

|$72

723-46-46101

VALVE ASS'Y

52

SLEEVE

53

PISTON SUB ASS'Y

54

SPRING

55

SEAL

56

700-93-11320

O-RING

57

723-46-41950

RING

58

07002-13634

O-RING
