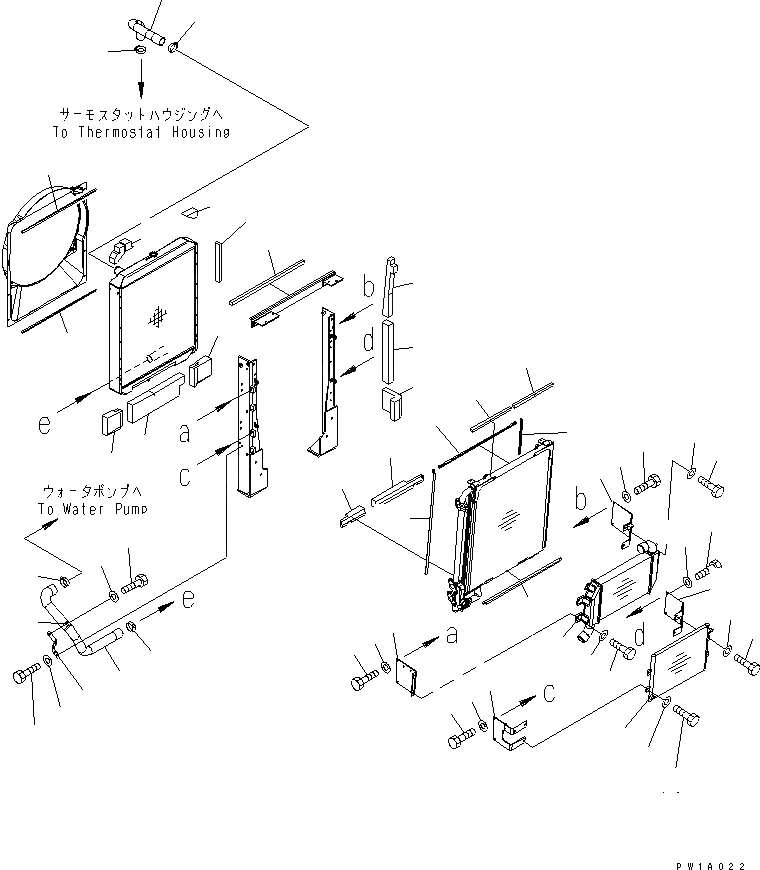

Запчасти Komatsu PC228USLC-3S ОХЛАЖД-Е (ПОСЛЕОХЛАДИТЕЛЬ¤ КОНДЕНСАТОР И ТРУБЫ)(№-) СИСТЕМА ОХЛАЖДЕНИЯ

1

22U-03-21421

BRACKET

2

01010-81030

BOLT

3

01643-31032

WASHER

4

22U-03-21441

BRACKET

5

01010-81025

BOLT

6

01643-31032

WASHER

7

22U-03-21461

BRACKET

8

01010-81030

BOLT

9

01643-31032

WASHER

10

22U-03-21482

BRACKET

11

01010-81025

BOLT

12

01643-31032

WASHER

13

6738-61-4103

AIR COOLER ASS'Y

13

6738-61-4102

AFTER COOLER ASS'Y

13

6738-61-4100

AFTER COOLER ASS'Y

14

01010-81035

BOLT

15

01010-81025

BOLT

16

01643-31032

WASHER

17

22B-979-1640

CONDENSER ASS'Y

18

01010-80825

BOLT

19

01643-30823

WASHER

20

22U-03-21330

SHEET

21

20Y-03-14110

SEAL

22

22U-03-21490

SHEET

23

22U-03-21231

SHEET

24

22U-03-21340

SHEET

25

22U-03-21271

SHEET

26

22U-03-21281

SHEET

27

22U-03-21291

SHEET

28

22U-03-21240

SHEET

29

22U-03-21740

SHEET

30

22U-03-21751

SHEET

31

22U-03-21451

SHEET

32

22U-03-21761

SHEET

33

22U-03-21671

SHEET

34

22U-03-21680

SHEET

35

22U-03-21720

SHEET

36

22U-03-21591

SHEET

37

22U-03-21560

SHEET

38

22U-03-21361

HOSE

38

22U-03-21360

HOSE

39

07289-00055

CLAMP

40

208-62-38370

CLIP

41

22U-03-21370

HOSE

42

01010-81025

BOLT

43

01643-31032

WASHER

44

22U-03-21170

BRACKET

45

07289-00055

CLAMP

46

07289-00070

CLAMP
