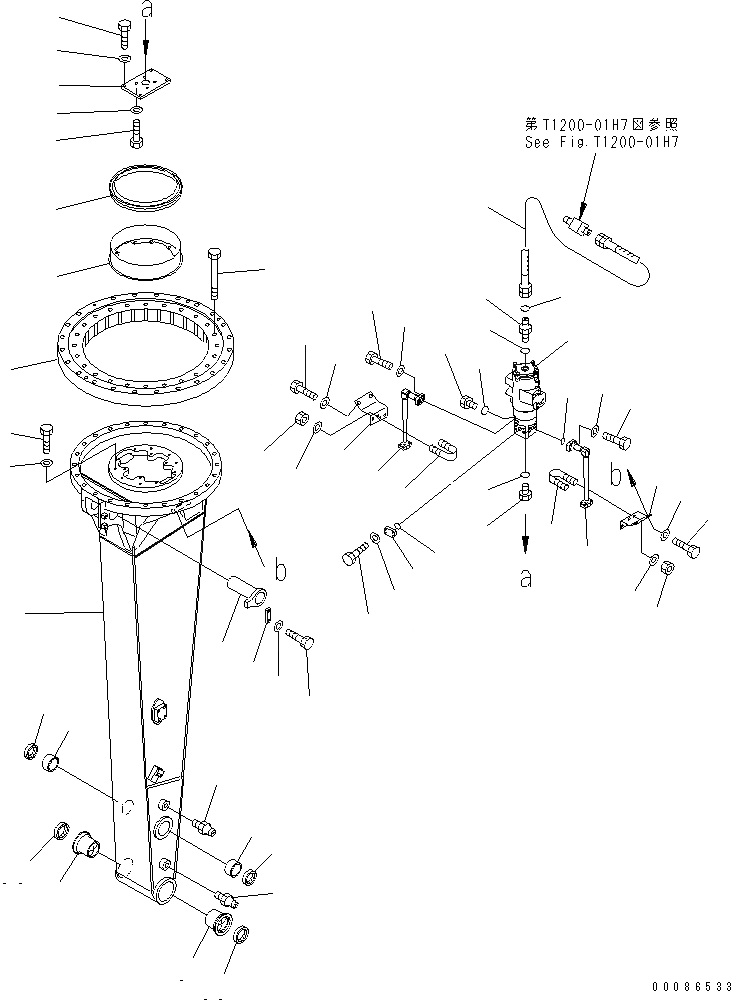

Запчасти Komatsu PC228USLC-3E0 РУКОЯТЬ (ROTATION РУКОЯТЬ) (ТРУБЫ) (ВТОР. РУКОЯТЬ) РАБОЧЕЕ ОБОРУДОВАНИЕ

|$4

22U-966-0013

ARM ASS'Y

1

ARM

2

20Y-70-32371

BUSHING

3

205-70-72130

BUSHING

4

07020-00000

FITTING

5

20Y-966-1530

PLATE

6

01010-81235

BOLT

7

01643-31232

WASHER

8

20Y-966-1510

COVER

9

20Y-966-1520

SEAL

10

01010-81220

BOLT

11

01643-31232

WASHER

12

205-966-7111

CIRCLE

13

01011-82210

BOLT

|$21

703-09-00250

SWIVEL JOINT ASS'Y

14

SWIVEL JOINT ASS'Y

15

20Y-966-2850

TUBE

16

20Y-62-15990

FLANGE

17

07000-13030

O-RING

18

07372-21040

BOLT

19

01643-51032

WASHER

20

01010-81035

BOLT

21

01643-51032

WASHER

22

07000-13030

O-RING

23

07040-12412

PLUG

24

07002-12434

O-RING

25

07040-11409

PLUG

26

07002-11423

O-RING

27

8255-62-4330

UNION

28

07002-12434

O-RING

29

02896-11009

O-RING

30

02762-20311

HOSE

31

20Y-966-1781

BRACKET

32

01010-81225

BOLT

33

01643-31232

WASHER

34

07283-22738

CLIP

35

01599-01011

NUT

36

01643-31032

WASHER

37

20Y-70-23220

SEAL

38

205-70-62150

SEAL

39

205-70-71190

PIN

40

205-70-66580

PLATE

41

01010-81230

BOLT

42

01643-31232

WASHER
