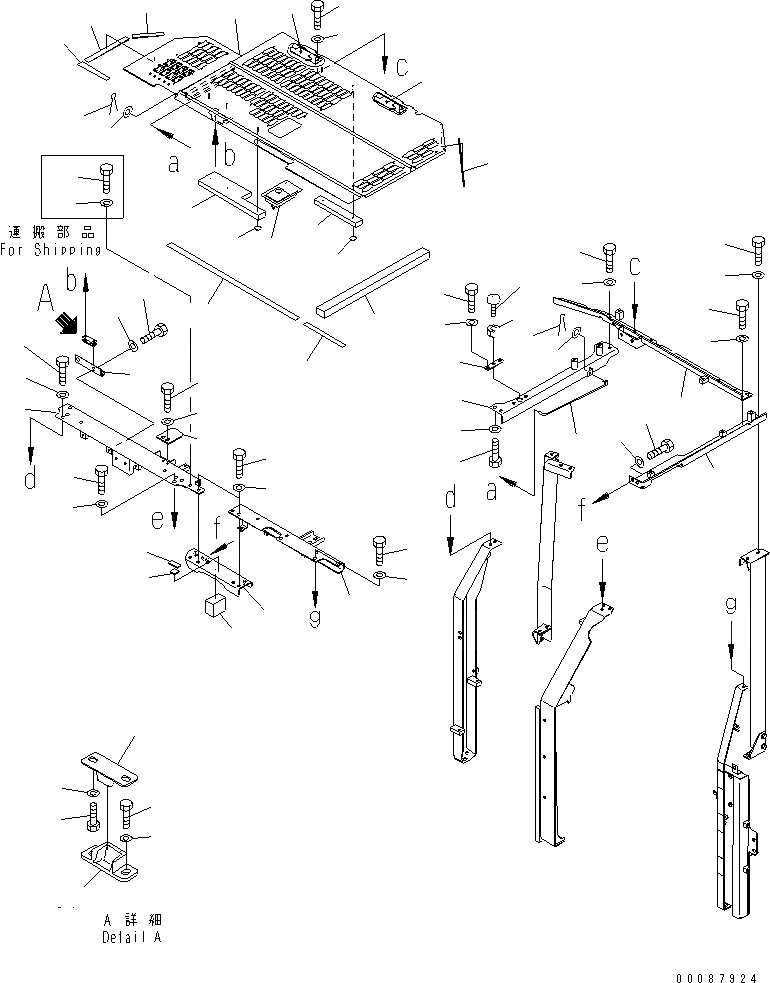

Запчасти Komatsu PC228USLC-3E0 КАПОТ (ДЛЯ KAL)(№9-) ЧАСТИ КОРПУСА

1

22U-54-31920

HOOD

2

198-54-41982

LOCK ASS'Y (WELDED)

3

22U-54-23570

HINGE (WELDED)

4

22U-54-28720

SHEET

5

22U-54-21131

SHEET

6

22U-54-86810

SHEET

7

22U-54-21161

SEAL

8

22U-54-27660

SHEET

9

22U-54-27650

SHEET

10

22U-54-28570

SHEET

11

22U-54-29750

SHEET

12

22U-54-29760

SHEET

13

124-A62-1920

CAP

14

01010-81230

BOLT

15

01643-31232

WASHER

16

22U-54-31210

FRAME

17

22U-54-27860

FRAME

18

01010-81230

BOLT

19

01643-31232

WASHER

20

01010-81225

BOLT

21

01643-31232

WASHER

22

22U-54-31630

FRAME

23

22U-54-31941

FRAME

24

22U-54-29310

FRAME

25

22U-54-29320

SHEET

26

22U-54-29330

SHEET

27

01010-81230

BOLT

28

01643-31232

WASHER

29

01010-81230

BOLT

30

01643-31232

WASHER

31

22U-54-27571

FRAME

32

01010-81230

BOLT

33

01643-31232

WASHER

34

22U-54-21840

BAR

35

01643-31032

WASHER

36

04050-13018

PIN

37

205-54-51970

DOVE TAIL

38

01010-80612

BOLT

39

01643-30623

WASHER

40

205-54-53550

DOVE TAIL

41

01010-80616

BOLT

42

01643-30623

WASHER

43

20Y-54-28182

PLATE

44

01010-81230

BOLT

45

01643-31232

WASHER

46

22U-54-21171

BRACKET

47

01010-81230

BOLT

48

01643-31232

WASHER

49

22U-54-29990

SHEET

50

22U-54-26580

BRACKET

51

01010-81225

BOLT

52

01643-31232

WASHER

53

20Y-54-11611

STOPPER

54

01580-11008

NUT

55

01010-81230

BOLT

56

01643-31232

WASHER
