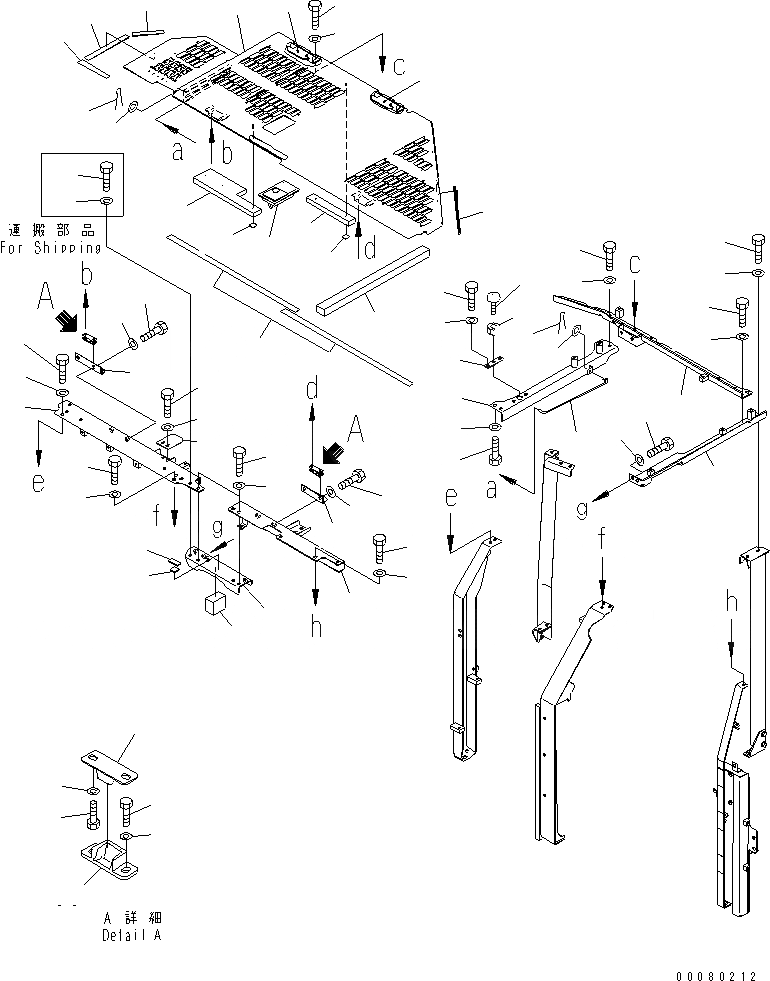

Запчасти Komatsu PC228USLC-3E0 КАПОТ(№9-) ЧАСТИ КОРПУСА

1

22U-54-27621

HOOD

2

198-54-41982

LOCK ASS'Y (WELDED)

3

22U-54-23570

HINGE (WELDED)

4

22U-54-28720

SHEET

5

22U-54-21131

SHEET

6

22U-54-21161

SEAL

7

22U-54-27660

SHEET

8

22U-54-27650

SHEET

9

22U-54-28570

SHEET

10

22U-54-29750

SHEET

11

22U-54-29760

SHEET

12

124-A62-1920

CAP

13

01010-81230

BOLT

14

01643-31232

WASHER

15

22U-54-27551

FRAME

16

22U-54-27860

FRAME

17

01010-81230

BOLT

18

01643-31232

WASHER

19

01010-81225

BOLT

20

01643-31232

WASHER

21

22U-54-26670

FRAME

22

22U-54-26680

FRAME

23

22U-54-29310

FRAME

24

22U-54-29320

SHEET

25

22U-54-29330

SHEET

26

01010-81230

BOLT

27

01643-31232

WASHER

28

01010-81230

BOLT

29

01643-31232

WASHER

30

22U-54-27571

FRAME

31

01010-81230

BOLT

32

01643-31232

WASHER

33

22U-54-21840

BAR

34

01643-31032

WASHER

35

04050-13018

PIN

36

205-54-51970

DOVE TAIL

37

01010-80612

BOLT

38

01643-30623

WASHER

39

205-54-53550

DOVE TAIL

40

01010-80616

BOLT

41

01643-30623

WASHER

42

22U-54-21151

BRACKET

43

01010-81230

BOLT

44

01643-31232

WASHER

45

20Y-54-28182

PLATE

46

01010-81230

BOLT

47

01643-31232

WASHER

48

22U-54-21171

BRACKET

49

01010-81230

BOLT

50

01643-31232

WASHER

51

22U-54-29990

SHEET

52

22U-54-26580

BRACKET

53

01010-81225

BOLT

54

01643-31232

WASHER

55

20Y-54-11611

STOPPER

56

01580-11008

NUT

57

01010-81230

BOLT

58

01643-31232

WASHER
